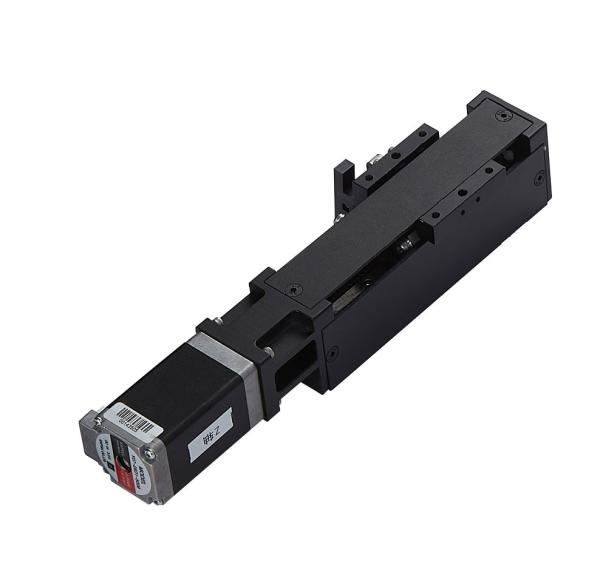

M28Z-030L/LS-2STT 28*28/48.5*180mm Electric Cylinder With 28mm Stepper Motor And 30mm Stroke Trapezoid Screw

1. Products Overview

Electric cylinder is a product that uses a motor and controller to produce a certain thrust by linear motion. The electric cylinder is a rotation of a motor to drive the screw and the rotation is transformed into a straight movement, which can be used in precision automation motion control applications, such as push and pull, close and open, and lifting and landing etc.
The structure and working principle of the electric cylinder are: Electric cylinder is a modular product composed of the motor and the integrated design of the screw. The rotation movement of the motor is converted into a linear motion to realize precise speed control, accurate position control, and precise thrust control.
Electric cylinders can work in harsh environments, and the protection level can reach up to IP66 and above. It can replace the air cylinder and hydraulic cylinder in mechanical automation industry, electronic industry, automotive industry etc.
Compared with the traditional air cylinder, the electric cylinder has the advantages of the precise position control, accurate speed control and accurate thrust control. At the same time, the electric cylinder has advantages of low noise, low vibration, high speed, energy saving, and it can be arbitrarily add any positioning point within the movement range. Its life time is also much longer than air cylinder.

Product Features

High precision:

The control accuracy of the electric cylinder is high, and it can usually reach 0.01mm, which is suitable for application scenarios that require high precise motion control.

Quick response:

Compared with the cylinder, the electric cylinder has a faster response speed and conversion speed, which can complete various actions in a short time.

Energy -saving and environmental protection:

Electric cylinders use electric motors as the source of power, no noise, no chemical leakage, and no hidden fire hazards, which is energy saving and environmental friendly than a hydraulic cylinder and an air pressure cylinder.

Easy installation and maintenance:

Electric cylinder structure is simple, easy to install and maintain, and reduces frequent maintenance needs.

Long lifetime:

Electric drive method avoids problems such as air leakage and provides long -term service life.

Programmable control:

Electric cylinders have the characteristics of programming control, which can be linked with other electrical and electronic equipment to achieve industrial automation production.

The scope of application is wide:

Electric cylinder is suitable for multiple industrial areas, including papermaking, chemical, automotive manufacturing, electronics, mechanical automation and welding etc.

2. Naming Rules

Naming meanings of M28Z-030L-2STT and M28Z-030LS-2STT are as bellow,

3. Main Specifications

Note: The holding force will be lost in the non-energized state, therefore, the vertical load and external force cannot be maintained. Please select the product with electromagnetic brake when the vertical drive is used.

4. Mechanical Drawings

The mechanical drawings of M28Z-030L-2STT is as bellow,

The mechanical drawings of M28Z-030LS-2STT is as bellow,
