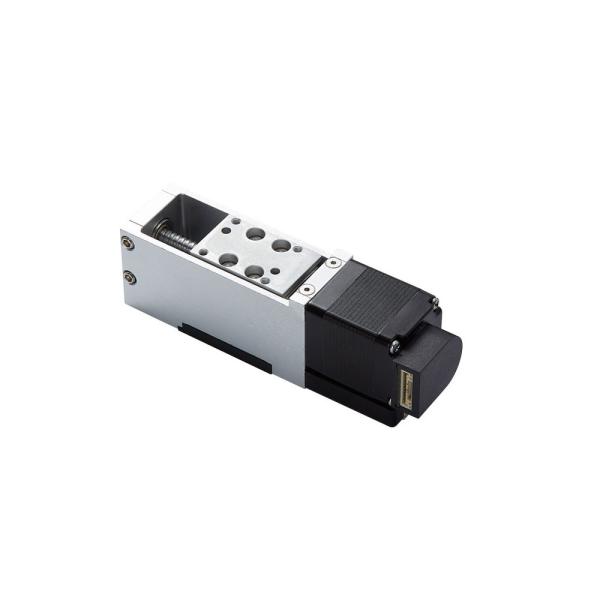

M28Z-060L/LS-2STT 28*28/48.5*226mm Electric Cylinder With 28mm Stepper Motor And 60mm Stroke Trapeziod Screw

1. Products Overview

Electric cylinders are usually composed of motors, deceleration mechanisms, transmission mechanisms, controllers, etc. After the motor is connected to the power, the rotation force is transmitted to the piston through the transmission device such as gears to enable the piston to move inside the cylinder, thereby achieving the output of back and forth motion.

The working principle of the electric cylinder is to concert the rotation of the motor into a linear motion through the transmission mechanism.

Inside the electric cylinder, electric motors (such as AC servo motors, step servo motors, DC servo motors) are used as power sources, and rotation motion is generated by the control of a driver.

This rotation movement was then transformed into a linear motion through the transmission mechanism (such as screws, nuts, gear groups, worm transmission, etc.).

In addition, the movement speed and itinerary of the electric cylinder can be achieved by adjusting the speed and itinerary of the motor.

Advantages of electric cylinder as bellow,

High accuracy

Electric cylinders are connected with control systems such as the upper machine to achieve high -precision motion control. The control accuracy is easy to reach 0.02mm. The electric cylinder can use without failure in harsh environments, and the protection level can reach IP66 and higher.

Super long lifetime

Electric driver, completely relieve the trouble of leakage, also provides a long -term service life.

Low noise and low vibration

The end electronic buffer and braking control, no impact, extremely low noise and vibration, reduce the impact on the overall equipment, and improve production efficiency

Electric cylinder

High speed

The fastest 6m/s, the maximum 10g acceleration, a high response speed, can provide a long service life even at high speed operation

Low -cost maintenance

In a complex environment, the work of electric tanks only requires regular liposuction lubrication, and it does not need to be maintained to be replaced. It reduces a large number of after -sales service costs compared with the hydraulic system and the air pressure system.

Environmental protection and energy saving

The current environment is more environmentally friendly, more energy -saving, and cleaner. It is easy to connect to control systems such as PLC to achieve high -precision motion control.

2. Naming Rules

Naming meanings of M28Z-060L-2STT and M28Z-060LS-2STT are as bellow,

3. Main Specifications

Note: The holding force will be lost in the non-energized state, therefore, the vertical load and external force cannot be maintained. Please select the product with electromagnetic brake when the vertical drive is used.

4. Mechanical Drawings

The mechanical drawings of M28Z-060L-2STT is as bellow,

The mechanical drawings of M28Z-060LS-2STT is as bellow,
