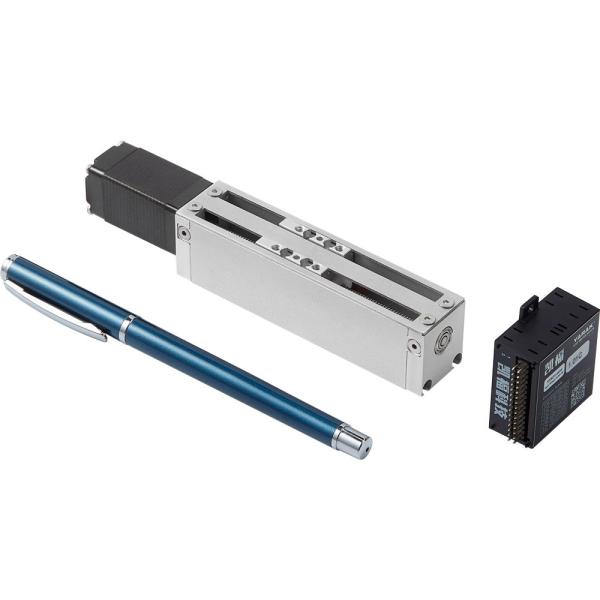

M28Z-060L/LS-2SVT 28*28/48.5*226mm Electric Cylinder With 28mm Servo Motor And 60mm Stroke Trapeziod Screw

1. Products Overview

Electric cylinders are usually composed of motors, deceleration mechanisms, transmission mechanisms, controllers, etc. After the motor is connected to the power, the rotation force is transmitted to the piston through the transmission device such as gears to enable the piston to move inside the cylinder, thereby achieving the output of back and forth motion.

The working principle of the electric cylinder is to concert the rotation of the motor into a linear motion through the transmission mechanism.

Inside the electric cylinder, electric motors (such as AC servo motors, step servo motors, DC servo motors) are used as power sources, and rotation motion is generated by the control of a driver.

This rotation movement was then transformed into a linear motion through the transmission mechanism (such as screws, nuts, gear groups, worm transmission, etc.).

In addition, the movement speed and itinerary of the electric cylinder can be achieved by adjusting the speed and itinerary of the motor.

Advantages of electric cylinder as bellow,

High accuracy

Electric cylinders are connected with control systems such as the upper machine to achieve high -precision motion control. The control accuracy is easy to reach 0.02mm. The electric cylinder can use without failure in harsh environments, and the protection level can reach IP66 and higher.

Super long lifetime

Electric driver, completely relieve the trouble of leakage, also provides a long -term service life.

Low noise and low vibration

The end electronic buffer and braking control, no impact, extremely low noise and vibration, reduce the impact on the overall equipment, and improve production efficiency

Electric cylinder

High speed

The fastest 6m/s, the maximum 10g acceleration, a high response speed, can provide a long service life even at high speed operation

Low -cost maintenance

In a complex environment, the work of electric tanks only requires regular liposuction lubrication, and it does not need to be maintained to be replaced. It reduces a large number of after -sales service costs compared with the hydraulic system and the air pressure system.

Environmental protection and energy saving

The current environment is more environmentally friendly, more energy -saving, and cleaner. It is easy to connect to control systems such as PLC to achieve high -precision motion control.

Kaifull Electric Cylinders Applications:

The field of aerospace. Electric cylinders are used in simulated aircraft, dynamic seats and other equipment.

Military industry. Electric cylinders are used to simulate aircraft, simulation, etc.

The automobile manufacturing industry. Electric cylinders are used for assembly, feeding, disassembly and other operations, especially in the installation machine and testing instruments.

Industrial industry. Electric cylinders are applied in food machinery, ceramic machinery, welding machinery, and lifting platforms.

The entertainment industry. Electric cylinders are used for robotic arms and joints, dynamic seats, etc.

Medical equipment industry. Modern medical equipment uses a large number of precision instruments and robotic arms, and electric cylinders are used in medical robots, rehabilitation equipment, surgical robots, drug production and other fields.

New energy industry. Electric cylinders are used in solar tracking systems, wind power generation systems, etc. In the solar tracking system, the electric cylinder is used to drive the rotation of solar panels and realizes the tracking of the solar. In the wind power generation system, the electric cylinder is used for wind power generator sets. The polarization system realizes the rotation control of the wind turbine.

In addition, in the automation industry, electric cylinders are used in machine tool automation, semiconductor manufacturing, and networking equipment production lines. In the robot industry, the electric cylinder is used to control the movement of robots in the fields of automotive manufacturing, medical equipment production, and electronic manufacturing. In the packaging industry, Electric cylinder controls the lifting, promotion, stretching, and capture of the packaging machinery

2. Naming Rules

Naming meanings of M28Z-060L-2SVT and M28Z-060LS-2SVT are as bellow,

3. Main Specifications

Note: The holding force will be lost in the non-energized state, therefore, the vertical load and external force cannot be maintained. Please select the product with electromagnetic brake when the vertical drive is used.

4. Mechanical Drawings

The mechanical drawings of M28Z-060L-2SVT is as bellow,

The mechanical drawings of M28Z-060LS-2SVT is as bellow,
