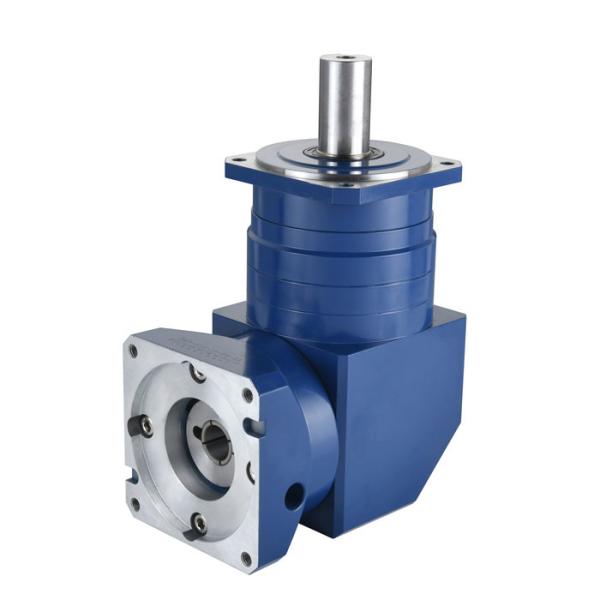

ZAF115 Series RATIO 3 to 100 Extra High Precision RIGHT-ANGLE Helical Gear Planetary Gearbox For CNCs And Various Industrial Automation Applications

PRMCAS extra high precision ZAF115 SERIES RIGHT-ANGLE helical gear planetary gearboxs are widely used in high-end industrial automation fields, and widely appreciated by customers.

The scope of application of precision helical gear planet reducer is very wide.

In the field of machine tools, precision oblique planetary gearboxes are widely used in high-precision and high-speed motion equipment such as CNC machine tools, cutting equipment, and grinding machines to achieve stable transmission and accurate control of positions.

In automation equipment, precision oblique gear planetary reducers are used in the fields of robots, logistics equipment, packaging equipment and other fields, which improves the accuracy and reliability of the system.

In addition, precision oblique gear planet reducers are widely used in aerospace, medical devices, electronic equipment and other fields.

KAIFULL PRMCAS Helical Gear Planetary Gearbox/Reducer FEATURES are mainly as bellow,

High transmission efficiency of helical gear: The helical gear meshing structure is compact and the transmission efficiency is higher, generally all stage range can be 94% to 99 %.

The helical gear transmission is more stable: the stability of the transmission ratio is the basic requirements of various reducers. Among them, precision planet reducer is widely used in various needed machinery and equipment and requires higher stability. Therefore, compared with the straight gear system, the helical gear technology with more accurate bite force can be more stable.

Higher rigidity: The helical gear of the planetary reducer has a large convergence, and there is a large number of meshing gear during the operation, which greatly reduces the impact and noise. Run at high speed.

Lower noise: When the speed of the helical gear planetary reducer and the spur gear reducer are the same speed, the noise of the helical planet reducer is lower than the straight gear reducer. The reason is that the helical gear planetary reducer first contact the surface, but the positive gear is face-to-face. The helical gear is lubricated and smooth during the transition, and the noise generated by sudden changes due to contact during operation is much smaller than that of a straight gear.

Smaller in size: In the process of processing, the number of gear is small to avoid the lower cut gear. The corresponding gears will be much smaller. Therefore, under the rack number of the same specifications, the volume of the helical gear planetary reducer will be relatively smaller.

The helical gear has various styles and sizes: The helical gear planetary reducer is more comfortable than the spur or straight gears. The transmission shaft of the helical planet redeeming does not need to be at the same level as the rear axis. If it is a straight gear planetary reducer, it only needs to be at the same level.

If you need other performance specifications, kindly contact us any time by sales@zionkaifull.com, or or whatsapp +8618682160096.

ZAF115 Series Helical Gear Planetary Gearbox General Technical Specifications

ZAF115 Series 1-stage models main technical data

ZAF115 Series 2-stage models main technical data

If you need need the mechanical drawings of a specific gearbox or need any customization of mechanical drawings, kindly contact us anytime by sales@zionkaifull.com, or WhatsApp +8618682160096.

Note: If you find difficulty in model selection, just kindly contact us and the most proper reducer will be recommended or customized.
