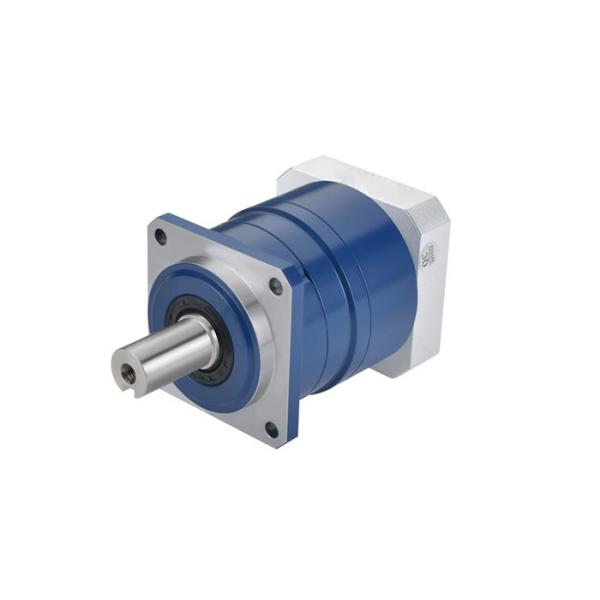

AF060 Series RATIO 3 to 100 Extra High Precision Helical Gear Planetary Gearbox For CNCs And Various Industrial Automation Applications

PRMCAS extra high precision AF060 SERIES helical gear planetary gearboxs are widely used in high-end industrial automation fields

and greatly appreciated by our customers worldwide.

Kaifull PRMCAS Helical Gear Planetary Gearbox Industial Automation Applications

Machinery manufacturing: Helical gear planetary reducer can be used to drive and drive various rotor components on the machine tools, such as lathes, milling machines, grinding machines, etc.

Packaging machinery: Helical gear planetary reducer can be used to drive the driver of various packaging equipment such as sealing machines and printers to achieve efficient and accurate packaging movements.

Textile machinery: Helical gear planetary reducer can be used for transmission of textile production equipment such as weaving machines, rolling machines, printing and dyeing machines to improve production efficiency and product quality.

Printing machinery: Helical gear planetary reducer can be used for transmission of printing equipment such as plastic printers, flat printing machines, soft printers, etc., to achieve precise and fast printing processes.

The field of aerospace: Helical gear planetary reducer can be used as high-precision, high-performance, high-reliability forces, which are widely used in aircraft, missiles, satellites, aerospace and other aerospace fields.

Automotive industry: Planetary reducer can be used in the transmission of gearboxes, engines, hub reducers, power transmission, clutch and other components of the automotive industry to improve the power and fuel economy of automobiles.

The field of petrochemical industry: Planetary reducer can be applied to petroleum, chemical industry and other fields. In the process of natural gas, chemical production, it is used as a driver equipment.

Medical equipment: Helical gear planetary reducer can be used for transmission of medical equipment such as X -ray machines, CT machines, and nuclear magnetic resonance to ensure the stability and accuracy of medical equipment.

Metallurgical machinery: Helical gear planetary reducer can be used for the transmission of metallurgical production equipment such as rolling machines and casting machines to improve production efficiency and product quality.

Various industrial robots: Helical gear planetary reducer can be used for the transmission and execution agencies of various industrial robots to improve the accuracy and execution efficiency of robots.

The above are some of the machine segments applicable to helical gear planetary reducer, which can be applied to many other fields.

KAIFULL PRMCAS Helical Gear Planetary Gearbox/Reducer FEATURES are mainly as bellow,

Small noise: The oblique gear planetary reducer is relatively quieter, and it reduces 10 % noise than the straight gear planet reducer.

Stability of running: The teeth of the oblique gear are obliquely intertwined with the axis of the gear, and the mesh of the teeth is smoother.

Small backlash: Fine back space 6≤arc-min, the characteristics of the planetary deceleration machine's meticulous positioning, revealing the characteristics of high -precision servo motor.

Small size: The size of its size in the same level is the smallest, which is more suitable for places with insufficient equipment space.

High intensity: Internal components accept high-strength quality alloy steels that are treated with heat treatment, which can cope with the cruel working environment.

High efficiency: Due to the design of precision gears with low loss, the transmission efficiency is as high as 97 %.

Full seal plan: Seal-type all-oil sealing scheme to ensure that lubricating oil is not exposed, the patent internal tooth ring delusions, and ensuring durability and reducing noise.

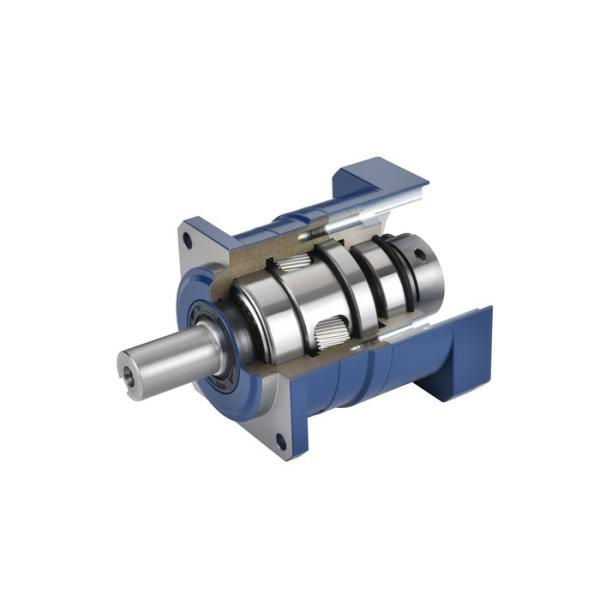

There are two support points of the planetary reducer. Its bearings and gear racks are a group. Each hole must be corresponding to the convex, and it must be accurately in place. There must be no deviation. The oblique dental layout fine reduction, high torque, high rigidity, high accuracy input low back gap, and high positioning accuracy.

If you need other performance specifications, kindly contact us any time by sales@zionkaifull.com, or or whatsapp +8618682160096.

AF060 Series Helical Gear Planetary Gearbox General Technical Specifications

AF060 Series 1-stage models main technical data

AF060 Series 2-stage models main technical data

If you need need the mechanical drawings of a specific gearbox or need any customization of mechanical drawings, kindly contact us anytime by sales@zionkaifull.com, or WhatsApp +8618682160096.

Note: If you find difficulty in model selection, just kindly contact us and the most proper reducer will be recommended or customized.
