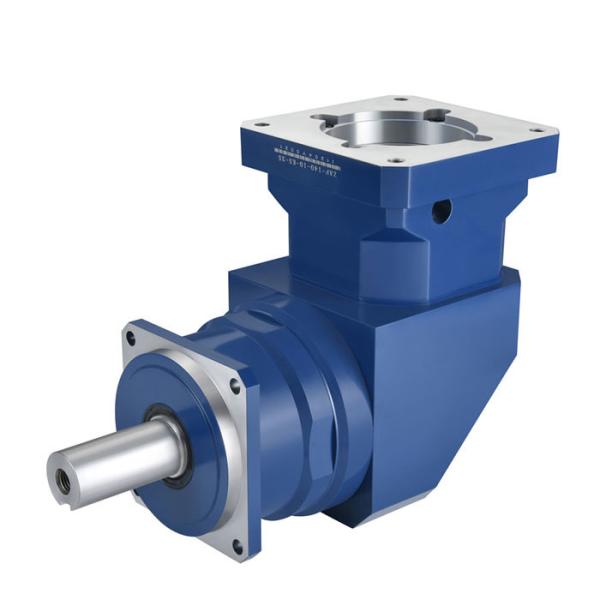

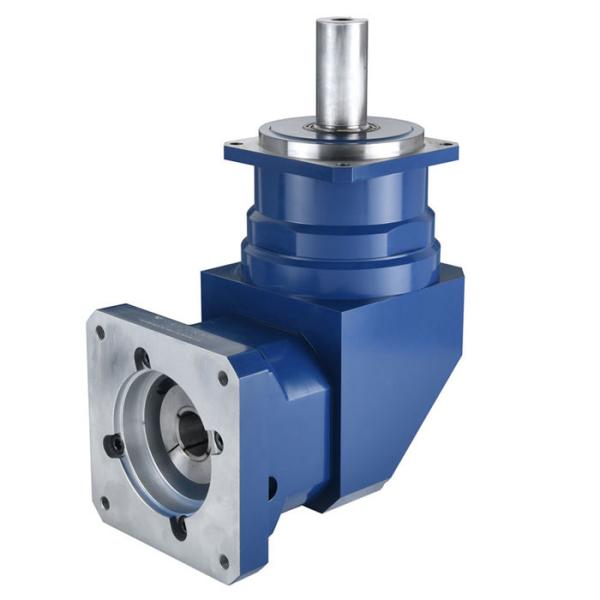

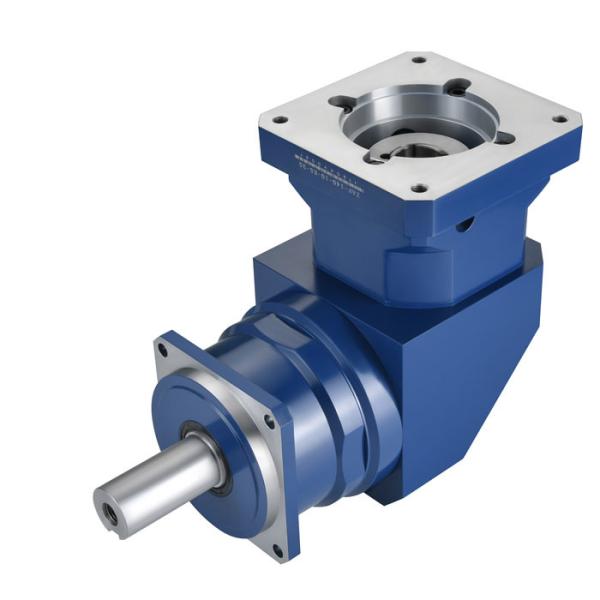

ZAF140 Series RATIO 3 to 100 Extra High Precision RIGHT-ANGLE Helical Gear Planetary Gearbox For CNCs And Various Industrial Automation Applications

Kaifull PRMCAS extra high precision ZAF140 SERIES right-angle helical gear planetary gearboxs are widely used in high-end industrial automation fields and widely appreciated by customers.

The scope of application of precision helical gear planet reducer is very wide.

In the field of machine tools, precision oblique planetary gearboxes are widely used in high-precision and high-speed motion equipment such as CNC machine tools, cutting equipment, and grinding machines to achieve stable transmission and accurate control of positions.

In automation equipment, precision oblique gear planetary reducers are used in the fields of robots, logistics equipment, packaging equipment and other fields, which improves the accuracy and reliability of the system.

In addition, precision oblique gear planet reducers are widely used in aerospace, medical devices, electronic equipment and other fields.

The main differences between helical gear and spur gear planetary reducers are as the followings,

The structure of the straight or spur gear planetary reducer is relatively simple, consisting of planetary gears, solar gears, ring gears, and shells, but the gear overall is directly entering meshing directly. Therefore the straight gear planetary reducer is centered on the gear of the sun. The meshing area of the solar gear and the planetary gear is large. The meshing line of the straight gear is a straight line parallel to the gear axis. Large, straight gear reducer can use both dual-support or single support structure, which is more suitable for occasions with less accuracy requirements, such as mixing equipment, conveyor belt machinery, filling equipment, and other relatively simple occasions.

The structure of oblique or helical gear planetary reducer is more complicated than straight gear. The main composition is the planetary gear rack inside. There are solar wheels, planet wheels, and outer gear. The gear on the solar wheel drives the operation of the planet wheel, the planet wheel is in the outer gear, and the solar wheels rotate. This planetary gear frame is operated, and then the output power is output. The line from short too long to short contact is a process of gradual meshing. Therefore, it is known that the impact of oblique gear from entering meshing to exit and meshing is better. Due to the diagonal lines of the contact surface of the diagonal gear reducer, the gear transmission error is small, and it can also use dual support and single support. It has high efficiency, high torque and other characteristics.

If u need any performance specification customization, please kindly contact us anytime by sales@zionkaifull.com, or whatsapp +8618682160096.

ZAF140 Series Helical Gear Planetary Gearbox General Technical Specifications

ZAF140 Series 1-stage models main technical data

ZAF140 Series 2-stage models main technical data

If you need the mechanical drawings of a model or want any customization, kindly contact us anytime by sales@zionkaifull.com, or whatsapp +8618682160096.

Note: If you find difficulty in model selection, just kindly contact us and the most proper reducer will be recommended or customized.

More Types of HELICAL Gear Planetary Gearboxes Available

• Warranty period is from 18months to 2 years depending on products.
• 24*7 customer technical support by email, WhatsApp, TeamViewer, voice or video call etc.
• Remote or onsite technical training services etc.
• More services as per customer need.

The manufacturing process of precision oblique or helical gear planetary reducer needs multiple processes.

First, choose appropriate materials according to actual application requirements and working conditions, such as high-quality alloy steel or stainless steel.

Then, cutting, milling, grinding and others are carried out through advanced processing CNC equipment to ensure the accuracy and quality of the reducer.

Finally, heat treatment and surface treatment are performed to improve the hardness and resistance of parts.
