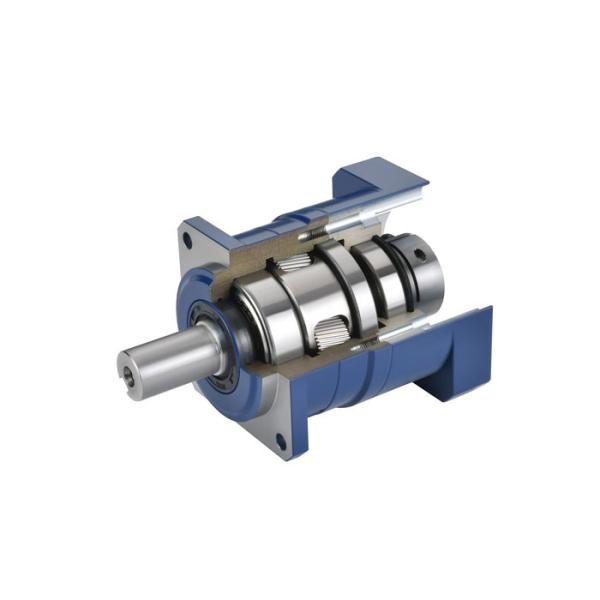

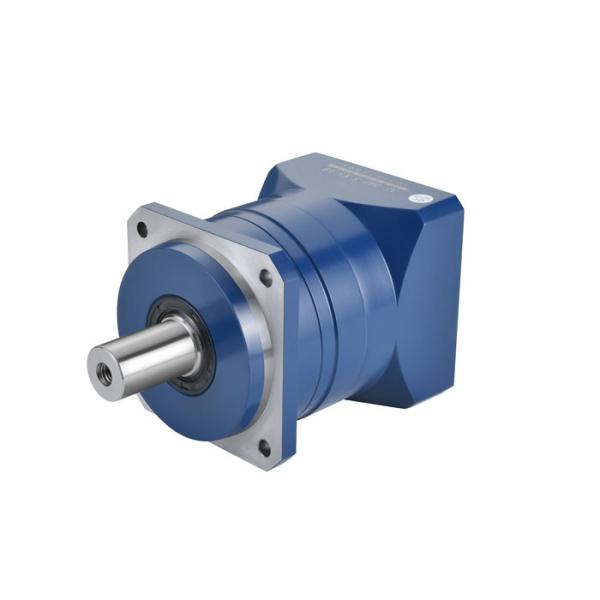

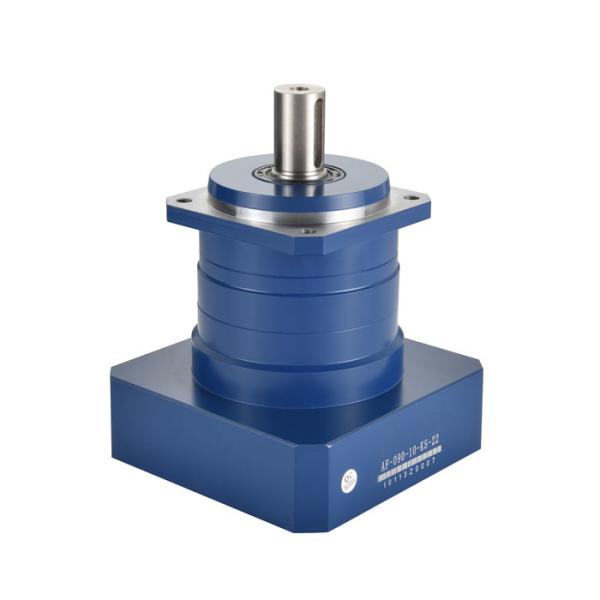

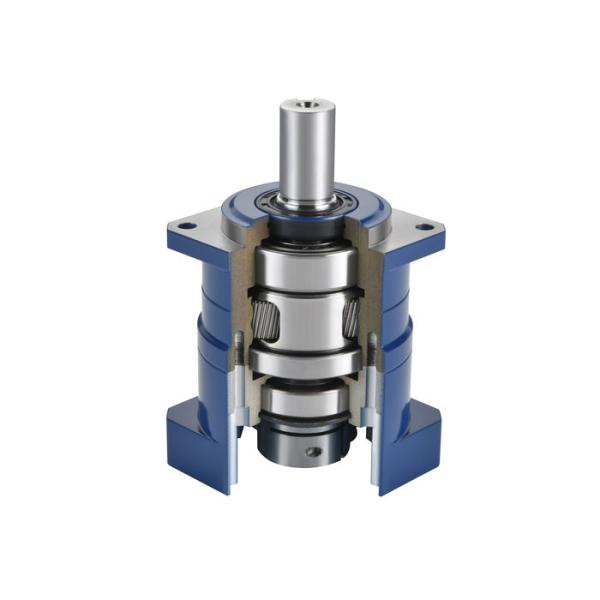

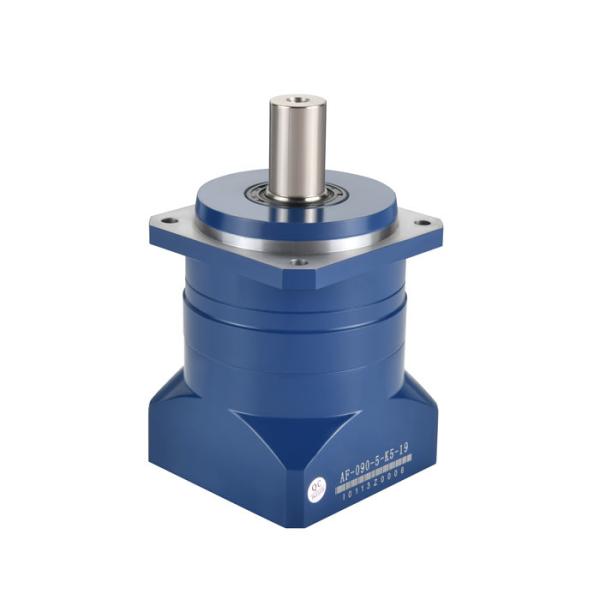

AF090 Series RATIO 3 to 100 Extra High Precision Helical Gear Planetary Gearbox For CNCs And Various Industrial Automation Applications

PRMCAS extra high precision AF090 SERIES helical gear planetary gearboxs are widely used in high-end industrial automation fields and greatly appreciated by global customers.

Kaifull PRMCAS Helical Gear Planetary Gearbox Industial Automation Applications

Helical gear planetary gearboxes machines are widely used in the industrial fields, especially suitable for applications that require high precision, high load and high reliability, such as CNC machine tools, civil carving machines, medical equipment, laser equipment, automobile manufacturing, robotics, metallurgy Rolling machines and roll machines, aerospace, military equipment, new energy system, communication automatic adjustable antennas, scientific measurement of calibration equipment, shipbuilding industry, etc.

The following are several common applications of oblique or helical gear planetary reducer in the industrial field:

Machine tool manufacturing

The oblique gear planetary reducer can be used for the main shaft of the machine tool, inlet transmission and other parts to improve the movement accuracy and stability of the machine tool.

Automated production line

The oblique gear planetary reducer can be used to automate the transportation belt, handling machinery, robot and other equipment on the automation production line to achieve accurate location control and efficient transmission.

Packaging machinery

The oblique gear planetary reducer can be used for the transportation, assembly and closed links of packaging machinery to improve the accuracy and efficiency of the packaging.

Textile Machinery

Helical gear planetary reducer can be used for fine yarn machines, integrated machines and finishing machines in textile machinery to achieve relatively stable and accurate transmission effects.

The automotive industry

The oblique gear planetary reducer is an important transmission device in the car transmission. It is widely used in the automotive industry.

Metallurgical industry

In the metallurgical industry, helical gear planetary reducer is usually used in transmission mechanisms such as rolling machines and roll machines.

Shipping industry

The advantages of oblique teeth planetary reducer have been widely used in the ship industry. For example, in the host, auxiliary machine and pump device of large ships, oblique teeth planetary reducer can provide stable output torque and smooth transmission effect.

KAIFULL PRMCAS Helical Gear Planetary Gearbox/Reducer FEATURES are mainly as bellow,

Small noise: The oblique gear planetary reducer is relatively quieter, and it reduces 10 % noise than the straight gear planet reducer.

Stability of running: The teeth of the oblique gear are obliquely intertwined with the axis of the gear, and the mesh of the teeth is smoother.

Small backlash: Fine back space 6≤arc-min, the characteristics of the planetary deceleration machine's meticulous positioning, revealing the characteristics of high -precision servo motor.

Small volume: The size of its size in the same level is the smallest, which is more suitable for places with insufficient equipment space.

High intensity: Internal components accept high-strength quality alloy steels that are treated with heat treatment, which can cope with the cruel working environment.

High efficiency: Due to the design of precision gears with low loss, the transmission efficiency is as high as 97 %.

Full seal plan: Seal-type all-oil sealing scheme to ensure that lubricating oil is not exposed, the patent internal tooth ring delusions, and ensuring durability and reducing noise.

There are two support points of the planetary reducer. Its bearings and gear racks are a group. Each hole must be corresponding to the convex, and it must be accurately in place. There must be no deviation. The oblique dental layout fine reduction, high torque, high rigidity, high accuracy input low back gap, and high positioning accuracy.

If you need other performance specifications, kindly contact us any time by sales@zionkaifull.com, or or whatsapp +8618682160096.

AF090 Series Helical Gear Planetary Gearbox General Technical Specifications

AF090 Series 1-stage models main technical data

AF090 Series 2-stage models main technical data

If you need need the mechanical drawings of a specific gearbox or need any customization of mechanical drawings, kindly contact us anytime by sales@zionkaifull.com, or WhatsApp +8618682160096.

Note: If you find difficulty in model selection, just kindly contact us and the most proper reducer will be recommended or customized.
