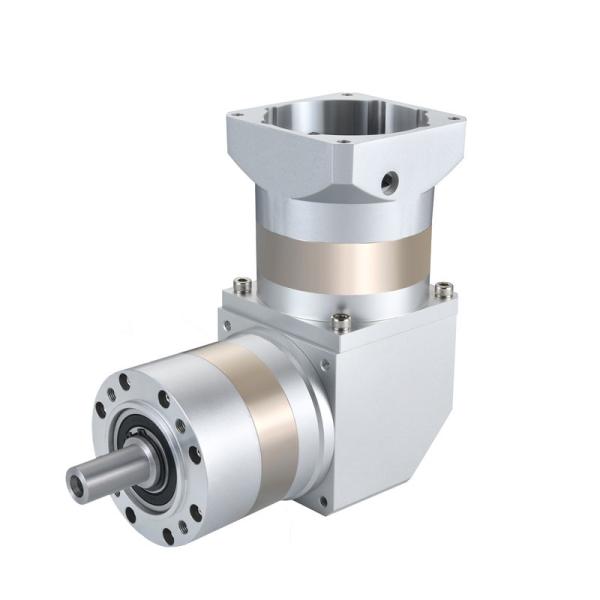

ZPLF120-L3 3-stage RATIO 64 to 350 Right-angle Spur Gear Planetary Gearbox For CNCs And Various Industrial Automation Applications

High precision ZPLE120-L3-(64, 80, 100, 125, 140, 175, 200, 250, 280, 350)-S2-P2 series planetary gearboxs are widely used in industrial automation applications, such as,

• CNC machines, including cutting, engraving, milling etc., of materials such as wood, metals, stones, glasses, etc.
• Laser machines, such as cutting, marking, soldering, etc.
• Plasma machines, textile machines, printing machines, food processing and medical machines, packaging machines etc.
• Factory automation, logistics automation, robotics etc.
• Medical and biological equipment, testing beds etc.
• Other industrial segments, such as stacking, SPM automation system, aerospace industry, military etc

Kaifull PRMCAS planetary reducers features and advanatges as bellow,

Rich specifications

The planetary deceleration machine is rich in specifications and provides a flexible and diverse choice for the power transmission system.

Planetary reducer has various designs of the input speed, output speed, output torque, and motion inertia, which provides a flexible and diverse choice for equipment design.

Multi-speed ratio, long service life

For the same load capacity, the planetary decelerator has a longer service life than a traditional reducer.

They have a variety of speed reduction ratios to meet the specific requirements of applications.

Small volume and light weight

For Kaifull PRMCAS planetary gearboxes, the highest quality material is used, so the rigidity, accuracy and durability of the gear, the power density, and power density are greatly improved than traditional materials, making the overall volume of the decelerator smaller and lighter, so the energy conversion efficiency is higher. At the same time, the overall volume and weight of the equipment can also be smaller.

High transmission efficiency

Planetary reducer can be as high as 98%in terms of efficiency. The main reason for this high efficiency is that its design is used by multiple star wheels to achieve efficient transmission. At this high efficiency, the original power of the equipment can be the original power of the equipment. The loss of mechanical energy loss is reduced a lot, and the fault tolerance rate is low and efficient.

High accuracy

Due to the large contact area of the planetary gear speed reducer and the number of gear wheels, the accuracy is high, which can meet the high-precision transmission requirements. At the same time, high-quality materials are used to make the accuracy stable running time. For example, it is very suitable for equipment such as machine tool machinery and spraying machinery to require high-precision requirements, because the arc score of precision planet reducer can reach 0.05 points, which can meet users with high requirements for high requirements for accuracy.

Naming Rules

If you need the any customization, kindly contact us anytime by sales@zionkaifull.com, or whatsapp +8618682160096.

Technical specifications of more models of ZPLFZPLF Series,

If you need the mechanical drawings of a model or want any customization, kindly contact us anytime by sales@zionkaifull.com, or whatsapp +8618682160096.

Note: If you find difficulty in model selection, just kindly contact us and the most proper reducer will be recommended.

More Types of Spur Gear Planetary Gearboxes for your kind reference

• Warranty period is from 18months to 2 years depending on products.
• 24*7 customer technical support by email, WhatsApp, TeamViewer, voice or video call etc.
• Remote or onsite technical training services etc.
• More services as per customer need.

The working principle of the planetary reducer is mainly based on the transmission of the planetary wheel system. The interaction of the internal gears achieves speed reduction and torque increasing.

Its internal structure mainly includes solar wheels, planet wheels, and inner gears circle. The solar wheel is located in the center and is driven by the input shaft; the planet wheel is located between the solar wheel and the inner gear circle, and there are usually multiple planetary wheels. The inner gears are fixed on the shell of the reducer. When the solar wheels rotate, the planetary wheels generate rotation under its action, and at the same time rotate along the orbits of the inner gear. This unique movement method enables the planetary reducer to achieve a higher deceleration ratio.

In addition, the design of the planetary reducer has the characteristics of compact structure, high transmission efficiency, and low noise, which are widely used in the industrial field.
