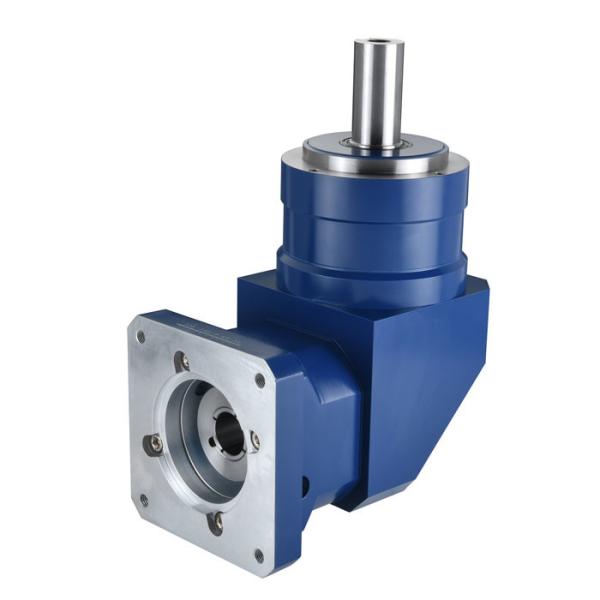

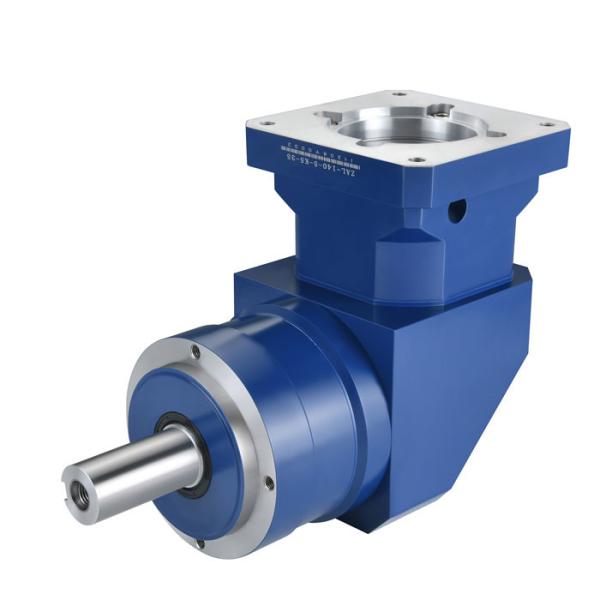

ZAL140 Series RATIO 3 to 100 Extra High Precision RIGHT-ANGLE Helical Gear Planetary Gearbox For CNCs And Various Industrial Automation Applications

PRMCAS extra high precision ZAL140 right-angle SERIES RIGHT-ANGLE helical gear planetary gearboxs are widely used in high-end industrial automation fields, such as,

• CNC machinese, including cutting, engraving, milling etc, of materials such as wood, metals, stones, glasses, etc.
• Laser machines, such as cutting, marking, soldering, etc.
• Plasma machines, textile machines, printing machines, food processing and medical machines, packaging machinesetc.
• Other industrial segments, such as conveying system, SPM automation system, aero space industry etc.

KAIFULL Helical Gear Planetary Gearbox/Reducer FEATURES are mainly as bellow,

The Helical/oblique gear planetary reducer is a commonly used transmission device, which is widely used in the field of industrial machinery. It uses the principle of planetary gear transmission, and through the collaboration of multiple groups of planetary gears to achieve efficient deceleration and transmission. Below I will introduce the relevant characteristics and advantages of oblique teeth planet reducer.

High efficiency: The oblique teeth planetary reducer uses the planetary gear transmission method. It has the characteristics of multiple points and the same transmission. The transmission efficiency is as high as 95%or more, which is more efficient than the traditional reducer.

Wide reduction ratio range: The oblique teeth planetary reducer has multiple gear transmission classes, which can achieve a large range of transmission ratio and meet the needs of different mechanical equipment for speed adjustment and torque output.

Compact structural design: The oblique teeth planet reducer adopts a compact structural design, with a small size and light weight. It is suitable for limited space.

Higher output torque: Planet reducer uses multi -point transmission, gear borne load, strong carrying capacity, and can withstand large impact loads and torque.

Higher precision: The oblique teeth planetary deceleration machine has high accuracy and stability. The transmission accuracy can reach 5-10 arc points, which can meet the requirements of high precision transmission.

Silent and smooth operation: The oblique teeth planetary reducer uses the special transmission structure of the planetary gear. The friction area is large, the noise is small, and the operation is smooth and quiet.

High reliability and long lifetime: The oblique -gear planetary reducer is made of high -intensity alloy materials. It has good durability and abrasion resistance and has a long service life.

In short, with its efficient, compact, and stable characteristics, oblique planetary reducer is widely used in industrial machinery and equipment, providing reliable solutions for the transmission of various machinery and equipment. In the field of industrial automation, it plays an important role, providing strong support for the improvement of production efficiency and the reliability of equipment.

If you need other performance specifications, kindly contact us any time by sales@zionkaifull.com, or or whatsapp +8618682160096.

ZAL140 Series Helical Gear Planetary Gearbox General Technical Specifications

ZAL140 Series 1-stage models main technical data

ZAL140 Series 2-stage models main technical data

If you need need the mechanical drawings of a specific gearbox or need any customization of mechanical drawings, kindly contact us anytime by sales@zionkaifull.com, or WhatsApp +8618682160096.

Note: If you find difficulty in model selection, just kindly contact us and the most proper reducer will be recommended or customized.
