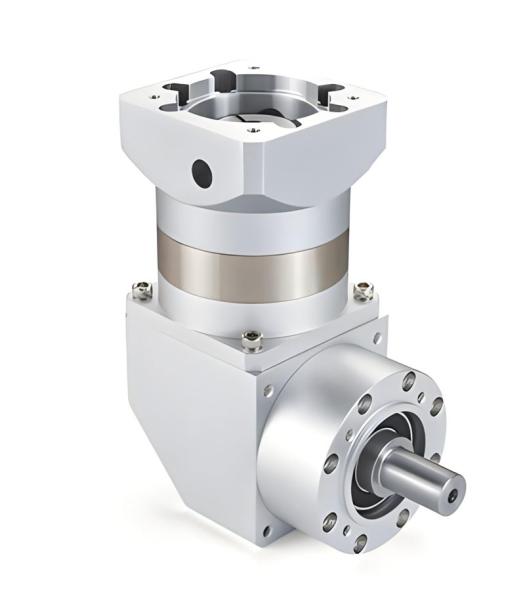

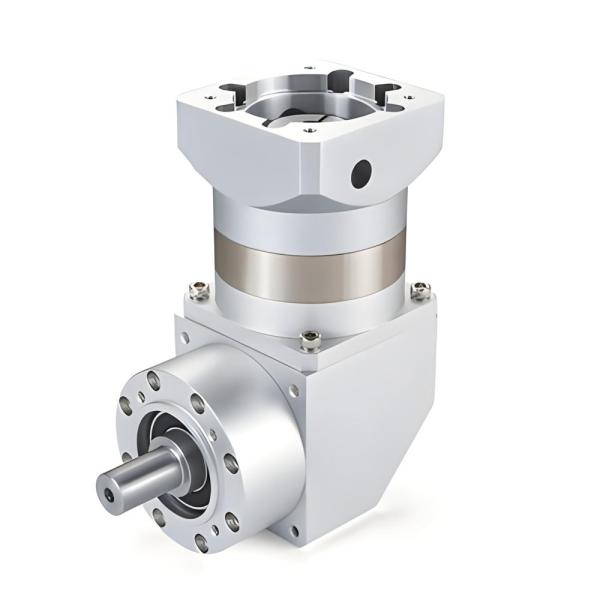

ZPLE120-L1 1-stage RATIO 3 to 10 Right-angle Spur Gear Planetary Gearbox For CNCs And Various Industrial Automation Applications

High precision ZPLE120-L1-(3, 4, 5, 7, 10)-S2-P2 series planetary gearboxs are widely used in industrial automation fields, such as,

• CNC machinese, including cutting, engraving, milling etc, of materials such as wood, metals, stones, glasses, etc.
• Laser machines, such as cutting, marking, soldering, etc.
• Plasma machines, textile machines, printing machines, food processing and medical machines, packaging machinesetc.
• Factory automation, logistics automation, robotics etc.
• Medical and biological equipments, testing beds etc.
• Other industrial segments, such as stacking, SPM automation system, aero space industry, military etc.

Advantages of Kaifull PRMCAS planetary gear reducer

High accuracy: The working principle and structure of the planetary reducer makes the error in the transmission process very small and high accuracy.

Large torque: Because the planetary reducer adopts the form of multi-gear combination, the torque transmitted is very large, which can achieve high work efficiency.

Low noise: Planetary reducer uses precision machining gears and other transmission components to make its transmission accuracy high, stable speed, and stable operation during work.

Life lifetime: The internal parts of the planetary deceleration machine are made of high-quality materials, with strong durability and long service life.

High efficiency: The transmission efficiency of the planetary reducer is high, and the noise is low and the temperature is small.

Naming Rules

If you need the any customization, kindly contact us anytime by sales@zionkaifull.com, or whatsapp +8618682160096.

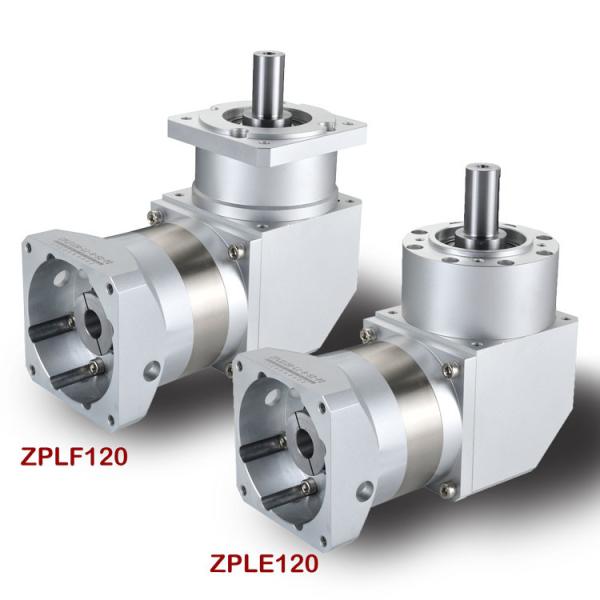

Technical specifications of more models of ZPLFZPLF Series,

If you need the mechanical drawings of a model or want any customization, kindly contact us anytime by sales@zionkaifull.com, or whatsapp +8618682160096.

Note: If you find difficulty in model selection, just kindly contact us and the most proper reducer will be recommended.

More Types of Spur Gear Planetary Gearboxes Available

• Warranty period is from 18months to 2 years depending on products.
• 24*7 customer technical support by email, WhatsApp, TeamViewer, voice or video call etc.
• Remote or onsite technical training services etc.
• More services as per customer need.

The working principle of the planetary reducer is mainly based on the transmission of the planetary wheel system. The interaction of the internal gears achieves speed reduction and torque increasing.

Its internal structure mainly includes solar wheels, planet wheels, and inner gears circle. The solar wheel is located in the center and is driven by the input shaft; the planet wheel is located between the solar wheel and the inner gear circle, and there are usually multiple planetary wheels. The inner gears are fixed on the shell of the reducer. When the solar wheels rotate, the planetary wheels generate rotation under its action, and at the same time rotate along the orbits of the inner gear. This unique movement method enables the planetary reducer to achieve a higher deceleration ratio.

In addition, the design of the planetary reducer has the characteristics of compact structure, high transmission efficiency, and low noise, which are widely used in the industrial field.

Functions in applications:

Increase Load weight and high precision: The load needs to be moved and requires precision planetary reducer when required for precision positioning. Generally, automated equipment such as aviation, satellites, medical care, military technology, wafer equipment, and robots. The increase in the torque of the servo motor through the precision planet deceleration machine can effectively solve it.

Increase output torque: If the output torque is improved, if the output torque method of directly increasing the servo motor is adopted, the expensive and high-power servo motor must be used. The servo motor must also have a stronger structure. The current also needs to be increased. At this time, a larger driver must be used. The specifications of power electronic components and related mechanical and electrical equipment must also increase, and the cost of the control system will be greatly increased.

Increase equipment efficiency: Theoretically, the power to increase the servo motor is also the way to output torque. It can be doubled by adding a speed of servo motor to double the power density of the servo system The specifications of the component, that is, do not need to increase the additional cost.

Increase the service life of the device: Precision planet reducer can also effectively solve the attenuation of low -speed control characteristics of the motor. Due to the decrease in speed of servo motors, a certain degree of attenuation is caused, especially in terms of signal retrieval and current control at low speeds, it is particularly easy to see.
