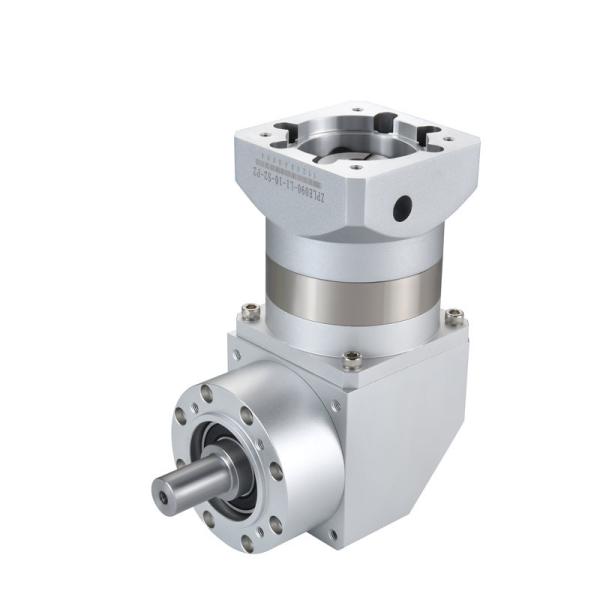

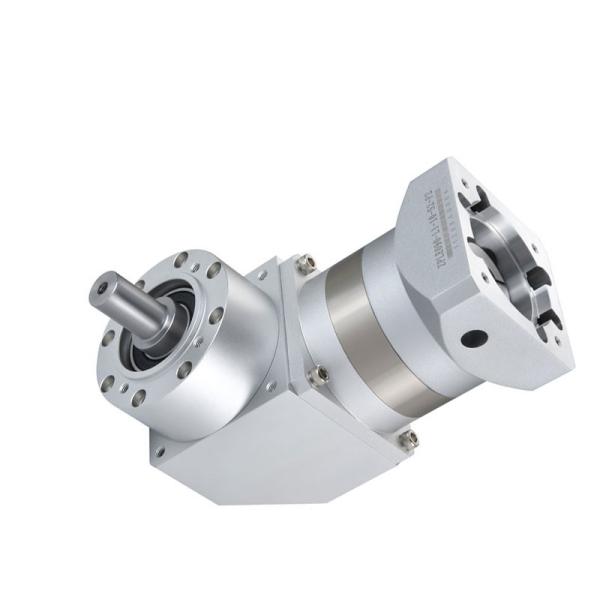

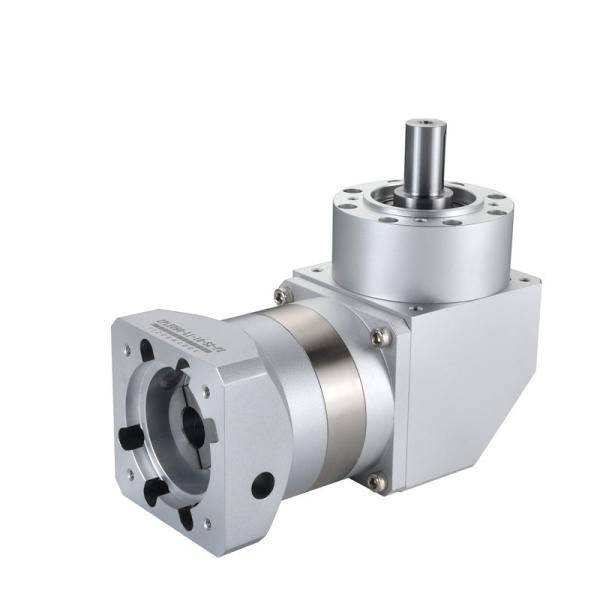

ZPLE090-L1 1-stage RATIO 3 to 10 Right-angle Spur Gear Planetary Gearbox For CNCs And Various Industrial Automation Applications

Kaifull PRMCAS High precision ZPLE090-L1-(3, 4, 5, 7, 10)-S2-P2 series planetary gearboxs are widely used in industrial automation fields, such as,

• CNC machinese, including cutting, engraving, milling etc, of materials such as wood, metals, stones, glasses, etc.
• Laser machines, such as cutting, marking, soldering, etc.
• Plasma machines, textile machines, printing machines, food processing and medical machines, packaging machinesetc.
• Factory automation, logistics automation, robotics etc.
• Medical and biological equipments, testing beds etc.
• Other industrial segments, such as stacking, SPM automation system, aero space industry, military etc.

Kaifull PRMCAS planetary gear reducer Advantages:

The reduction ratios very rich

Planetary gear reducer’s function is to decelerate and increase torque. The speed ratio can reach up to 30,000:1, and the transmission rate ratio of single -stage harmonic gears can also reach 1,000.

High loading capacity

When the planetary decelerator rotates, the number of the gears meshed is more, and the soft wheels use high strength materials, so they have a high loading capacity.

High accuracy

Because the planetary reducer are rotated, the number of meshing gears are more, and the error generates will be compensated by each other, so it is a more accurate transmission. Also Kaifull use extra high precision CNC machines to process gears, which also enables high precision.

High transmission efficiency

The soft wheel teeth of the planetary reducer, during the rotation process, it moves at a constant speed, so his movement is more stable. Even at a high input speed, the relatively sliding speed of this round is still very low, which is still very low. Essence Such a balanced movement can effectively reduce the wear of the wheel tooth and improve the driving efficiency. During the transmission, although both sides of the gear participated in the work, there was no impact, so the transmission movement of the planetary reducer is very smooth.

Naming Rules

If you need the any customization, kindly contact us anytime by sales@zionkaifull.com, or whatsapp +8618682160096.

Technical specifications of more models of ZPLFZPLF Series,

If you need the mechanical drawings of a model or want any customization, kindly contact us anytime by sales@zionkaifull.com, or whatsapp +8618682160096.

Note: If you find difficulty in model selection, just kindly contact us and the most proper reducer will be recommended.

More Types of Spur Gear Planetary Gearboxes Available

• Warranty period is from 18months to 2 years depending on products.
• 24*7 customer technical support by email, WhatsApp, TeamViewer, voice or video call etc.
• Remote or onsite technical training services etc.
• More services as per customer need.

The working principle of the planetary reducer is mainly based on the transmission of the planetary wheel system. The interaction of the internal gears achieves speed reduction and torque increasing.

Its internal structure mainly includes solar wheels, planet wheels, and inner gears circle. The solar wheel is located in the center and is driven by the input shaft; the planet wheel is located between the solar wheel and the inner gear circle, and there are usually multiple planetary wheels. The inner gears are fixed on the shell of the reducer. When the solar wheels rotate, the planetary wheels generate rotation under its action, and at the same time rotate along the orbits of the inner gear. This unique movement method enables the planetary reducer to achieve a higher deceleration ratio.

In addition, the design of the planetary reducer has the characteristics of compact structure, high transmission efficiency, and low noise, which are widely used in the industrial field.
