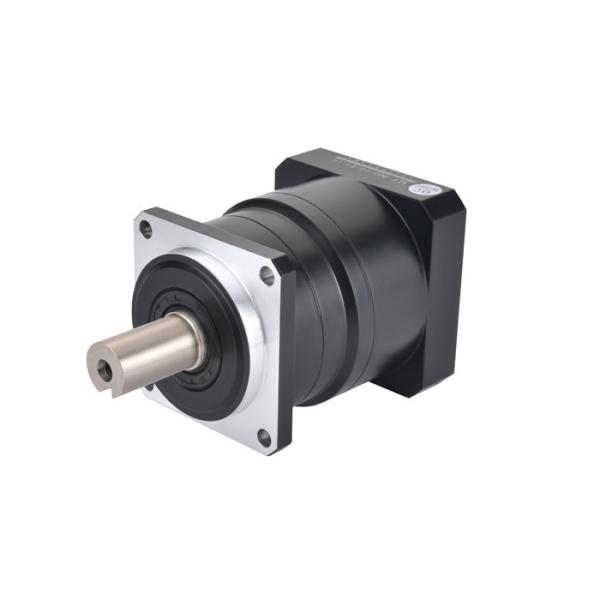

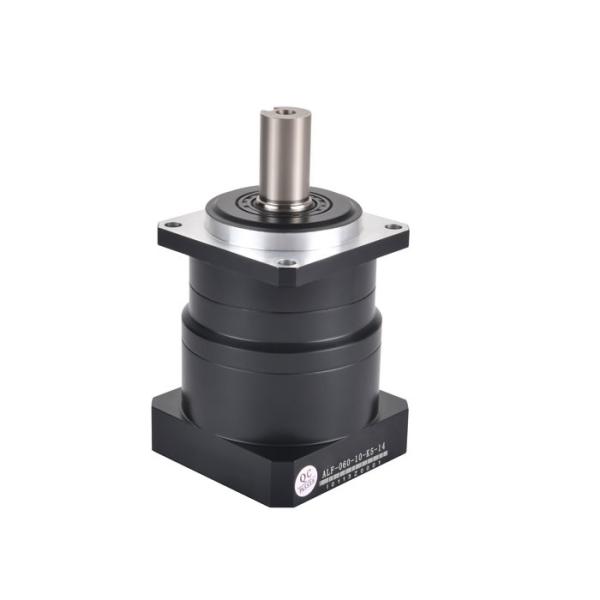

ALF060 Series 1-stage RATIO 3 to 10 Extra High Precision Cost-effective Helical Gear Planetary Gearbox For CNCs And Various Industrial Automation Applications

PRMCAS extra high precision ALF060 cost-effective SERIES helical gear planetary gearboxs are widely used in high-end industrial automation fields, such as,

• CNC machinese, including cutting, engraving, milling etc, of materials such as wood, metals, stones, glasses, etc.
• Laser machines, such as cutting, marking, soldering, etc.
• Plasma machines, textile machines, printing machines, food processing and medical machines, packaging machinesetc.
• Other industrial segments, such as conveying system, SPM automation system, aero space industry etc.

KAIFULL PRMCAS Helical Gear Planetary Gearbox/Reducer FEATURES are mainly as bellow,

High transmission efficiency of helical gear: The helical gear meshing structure is compact and the transmission efficiency is higher, generally all stage range can be 94% to 99 %.

The helical gear transmission is more stable: the stability of the transmission ratio is the basic requirements of various reducers. Among them, precision planet reducer is widely used in various needed machinery and equipment and requires higher stability. Therefore, compared with the straight gear system, the helical gear technology with more accurate bite force can be more stable.

Higher rigidity: The helical gear of the planetary reducer has a large convergence, and there is a large number of meshing gear during the operation, which greatly reduces the impact and noise. Run at high speed.

Lower noise: When the speed of the helical gear planetary reducer and the spur gear reducer are the same speed, the noise of the helical planet reducer is lower than the straight gear reducer. The reason is that the helical gear planetary reducer first contact the surface, but the positive gear is face -to -face. The helical gear is lubricated and smooth during the transition, and the noise generated by sudden changes due to contact during operation is much smaller than that of a straight gear.

Smaller in size: In the process of processing, the number of gear is small to avoid the lower cut gear. The corresponding gears will be much smaller. Therefore, under the rack number of the same specifications, the volume of the helical gear planetary reducer will be relatively smaller.

The helical gear has various styles and sizes: The helical gear planetary reducer is more comfortable than the spur or straight gears. The transmission shaft of the helical planet redeeming does not need to be at the same level as the rear axis. If it is a straight gear planetary reducer, it only needs to be at the same level.

If u need any performance specification customization, please kindly contact us anytime by sales@zionkaifull.com, or whatsapp +8618682160096.

ALF060 Series Helical Gear Planetary Gearbox General Technical Specifications

AF060 Series 1-stage models main technical data

If you need the mechanical drawings of a model or want any customization, kindly contact us anytime by sales@zionkaifull.com, or whatsapp +8618682160096.

Note: If you find difficulty in model selection, just kindly contact us and the most proper reducer will be recommended or customized.
