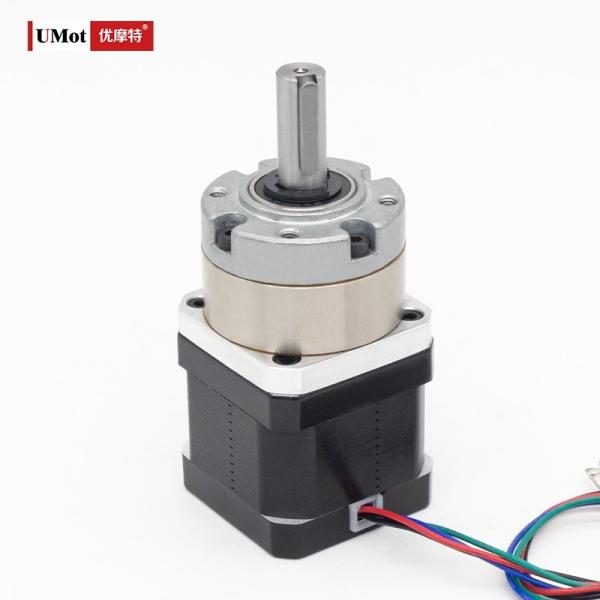

Nema 17 Hybrid Micro Reducer Planetary Geared Stepper Motor for UAVS 34/40mm 2.93/2.5A
Nema 17 Hybrid Micro Reducer Planetary Geared Stepper Motor for UAVS 34/40mm 2.93/2.5A
Nema 17 Hybrid Micro Reducer Planetary Geared Stepper Motor for UAVS 34/40mm 2.93/2.5A
Nema 17 Hybrid Micro Reducer Planetary Geared Stepper Motor for UAVS 34/40mm 2.93/2.5A
Nema 17 Hybrid Micro Reducer Planetary Geared Stepper Motor for UAVS 34/40mm 2.93/2.5A
Nema 17 Hybrid Micro Reducer Planetary Geared Stepper Motor for UAVS 34/40mm 2.93/2.5A
Nema 17 Hybrid Micro Reducer Planetary Geared Stepper Motor for UAVS 34/40mm 2.93/2.5A
Nema 17 Hybrid Micro Reducer Planetary Geared Stepper Motor for UAVS 34/40mm 2.93/2.5A
Nema 17 Hybrid Micro Reducer Planetary Geared Stepper Motor for UAVS 34/40mm 2.93/2.5A
Nema 17 Hybrid Micro Reducer Planetary Geared Stepper Motor for UAVS 34/40mm 2.93/2.5A
Nema 17 Hybrid Micro Reducer Planetary Geared Stepper Motor for UAVS 34/40mm 2.93/2.5A
Nema 17 Hybrid Micro Reducer Planetary Geared Stepper Motor for UAVS 34/40mm 2.93/2.5A
Specifications
Warranty :
1year
Place of Origin :
Chongqing, China
Brand Name :
Umot
Model Number :
42HSC1409/4409
Phase :
2
Type :
Hybrid
Current / Phase :
1.33/1.5A
Product name :
Planetary Gearbox Stepper Motor
Brand :
UMot
Motor size :
Nema 17 42mm
Motor length :
34/40mm
Load range :
0.902N.m-10.0N.m
Motor weight :
0.22/0.3kg
Bearing at output :
Ball bearings
Number of gear trains :
1-4
Reduction ratio :
3.7:1/5.2:1/14:1/19:1/27:1/51:1/71:1/100:1/139:1/189:1/264:1/369:1
Efficiency :
66%-90%
Packaging Details :
Foam+Hard Carton or Wooden Case+Waterproof film
MOQ :
5 pieces
Price :
$40.19/pieces 5-99 pieces
Description
Nema 17 Hybrid Micro Reducer Planetary Geared Stepper Motor for UAVS 34/40mm 2.93/2.5A
Nema 17 Hybrid Micro Reducer Planetary Geared Stepper Motor for UAVS 34/40mm 2.93/2.5A
Product name
Planetary Gearbox Stepper Motor
Brand name
Umot
Model size
Nema 17
Phase
2 Phase
Type
Hybrid
Holding torque
270/380mN.m
Rated current
1.33/1.5A
Rated voltage
2.93/2.5V
Motor length
34/40mm
Certification
CCC, ce, ISO
Load range
0.902N.m-10.0N.m
Color
Silver
Bearing at output
Ball bearings
Number of gear trains
1-4
Reduction ratio
3.7:1/5.2:1/14:1/19:1/27:1/51:1/71:1/100:1/139:1/189:1/264:1/369:1
Efficiency
66%-90%
