Specifications
Brand Name :
Sunny
Model Number :
HBT30
Place of Origin :
Hunan
MOQ :
1 set
Price :
USD5000-7000 PER SET
Payment Terms :
L/C, D/P, T/T, Western Union
Supply Ability :
500 SET PER MONTH
Delivery Time :
20-35DAYS
Packaging Details :
FULL CONTAINER
Application :
concrete pump,Trailer Pump
Warranty :
3 years
Model :
HBT30
Description

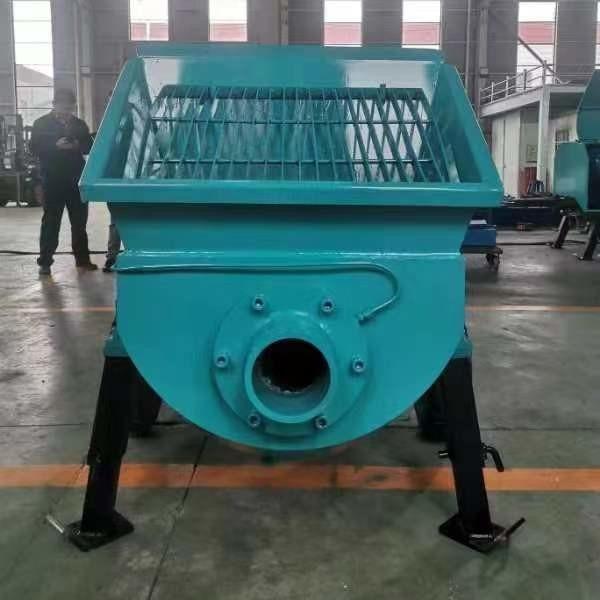

High Performance Heavy Duty Commercial Hbt 30 Concrete Pump Singapore

Product Description

HBT series concrete pumps are excellent modernized concrete machinery developed with aid of advanced technology. They are high tech concrete machine which are incorportated with international advanced technology and experiences in designing to replace the traditional way to lift the concrete by labor force.they adopt the diesel engine drive and motor drive S valve pump and gate valve pump with excellent techinical performance, high standard configuration and high reliability.

Compact RMC Stationary Concrete Pump Commercial For Contractors Construction

Parameters
Unit
HBT30.6.35S
HBT40.8.45S
HBT50.10.55S
HBT60.13.90S
HBT80.16.110S
Type of Power Machine
/
Electric/Diesel engine
Electric/Diesel engine
Electric/Diesel engine
Electric/Diesel engine
Electric/Diesel engine
Pumping Volume(Max)
m³/h
30
35
52
66
75
Outlet Pressure
Mpa
6
8
10
13
13
Hydraulic System Type
/
Open
Open
Open
Open
Open
High/Low Switch
/
Rotary Valve
Rotary Valve
Rotary Valve
Rotary Valve
Rotary Valve
Rater Power
kw
35
45
55
90
90
Distribution Valve Type
/
S Valve
S Valve
S Valve
S Valve
S Valve
Concrete Cylinder Diameter*Stroke
mm
Φ125*600
Φ140*1000
Φ200*1000
Φ200*1650
Φ200*1800
Hopper Capacity*Feeding Height
L*mm
350*1000
350*1100
600*1400
600*1400
600*1400
Max.Aggregate Size
mm
Pebble:20;
Crushed Stone:20
Pebble:20;
Crushed Stone:20
Pebble:50;
Crushed Stone:40
Pebble:50;
Crushed Stone:40
Pebble:50;
Crushed Stone:40
Total Weight
kg
2300
2500
4500
6000
6100
Dimension(L*W*H)
mm
3800*1500*1600
4500*1500*1650
5100*1700*2000
6400*2100*2200
6400*2100*2200

Product Features:

The HBT30 concrete pump offers several advantages in concrete placement:

  1. Compact and Maneuverable: The compact size of the HBT30 makes it suitable for construction sites with limited space or restricted access. Its maneuverability allows for easy navigation through narrow pathways and congested areas.

  2. Versatility: The HBT30 concrete pump can handle various types of concrete mixes, including low slump, high slump, and lightweight concrete. It is suitable for a wide range of applications, such as foundations, slabs, walls, and more.

  3. Precise Placement: The HBT30 allows for precise and controlled concrete placement, even in challenging or hard-to-reach areas. It provides flexibility in construction projects, accommodating different heights and distances.

  4. Reliability and Durability: The HBT30 is designed to withstand the demanding conditions of construction sites. Its sturdy construction and high-quality components ensure long-lasting performance and reliable operation.

  5. User-Friendly Operation: The HBT30 is designed with user-friendly features that make it easy to operate and maintain. Its intuitive control system and accessible components simplify the pumping process and reduce downtime.

The HBT30 concrete pump is a versatile and reliable solution for concrete placement in small to medium-sized construction projects. Its compact design, high performance, and ease of operation make it a valuable asset for contractors and construction companies seeking efficient and cost-effective concrete pumping capabilities.
