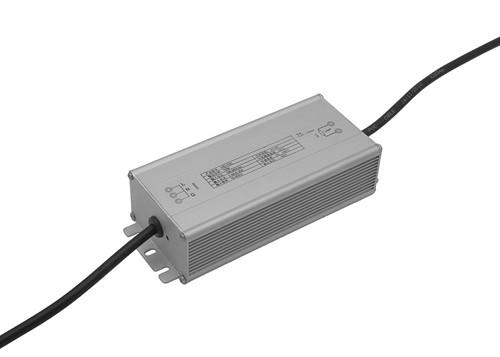

45W 160Hz Digital Greenhouse Ballast 60W 70W HPS MH Lamp 3 Phase Time
45W 160Hz Digital Greenhouse Ballast 60W 70W HPS MH Lamp 3 Phase Time
45W 160Hz Digital Greenhouse Ballast 60W 70W HPS MH Lamp 3 Phase Time
45W 160Hz Digital Greenhouse Ballast 60W 70W HPS MH Lamp 3 Phase Time
45W 160Hz Digital Greenhouse Ballast 60W 70W HPS MH Lamp 3 Phase Time
45W 160Hz Digital Greenhouse Ballast 60W 70W HPS MH Lamp 3 Phase Time
45W 160Hz Digital Greenhouse Ballast 60W 70W HPS MH Lamp 3 Phase Time
45W 160Hz Digital Greenhouse Ballast 60W 70W HPS MH Lamp 3 Phase Time
Specifications
Brand Name :
GrowBetter, 1/3, OEM
Model Number :
BRI-H70S-163
Certification :
CE ROHS FCC
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Packaging Details :
Inner Box, Export Cartons, OEM
Delivery Time :
5-7 days for S/O, 15-35 days for PO
Payment Terms :
30% deposit, 70% before delivery
Supply Ability :
10000 set per month
Material :
Aluminum
Style :
Electronic
Usage :
HID, High Intensity Discharge
Matched Tube :
HPS, MH, CMH, CDM, XED
THD :
＜10%
PFC :
＞0.95
Description

3-phase time control digital ballast for HPS MH lamp electronic ballasts 45W 60W 70W

Advantages and characteristics

1, energy saving

The ballast itself consumes less power, saves 40% more power than an inductive ballast, increases light efficiency by 12%, and has a ballast power factor greater than 0.96.

2, constant power, extend the life of the light source

The light source starts quickly without flicker, so that the color temperature and brightness of the light source do not change with voltage fluctuations. The constant low-frequency operating current output will not produce acoustic resonance phenomenon, reduce the damage to the lamp, and extend the life of the light source by 30%.

3, environmental protection, low noise and no pollution

Low harmonic content, no interference with the power grid and other equipment, low noise and no radiation.

4, to achieve intelligent control

With over-voltage, over-current, open circuit, short circuit, temperature and many other protection features, fire safety is guaranteed. Dimmable and smart control.

5, for a wide range of ambient temperatures

Use a wide range of ambient temperature, low temperature rise, -25 C ~ +55 C

Specification Model BRI-Q45S-163 Cosmo BRI-Q60S-163 Cosmo BRI-H70S-163
Material Aluminum Aluminum Aluminum
Dimension 163*43*30mm 163*43*30mm 163*43*30mm
Net Weight 370g 370g 370g
Style Electronic Electronic Electronic
Usage HID, High Intensity Discharge HID, High Intensity Discharge HID, High Intensity Discharge
Matched Bulb Philips CosmoPolis Philips CosmoPolis HPS, MH, CMH, CDM, XED
Technical Parameters Input Voltage 95~270VAC 95~270VAC 165~265VAC
Input Current 0.54A~0.19A 0.72A~0.25A 0.48A~0.30A
Input Power 50W±2.5 66W±2.5 77W±3
Input Frequency 50Hz～60Hz 50Hz～60Hz 50Hz～60Hz
Surge Current ＜20A ＜20A ＜20A
Power Factor ＞0.95 ＞0.95 ＞0.95
THD ＜10% ＜10% ＜10%
Input Insurance 250V/2.5A 250V/2.5A 250V/2.5A
Ouput Power 45W±2.5 60W±2.5 70W±3
Lamp Voltage 75V～150V 75V～150V 75V～150V
Output Frequency 160Hz±10Hz 160Hz±10Hz 160Hz±10Hz
Crest Factor ＜1.7 ＜1.7 ＜1.7
Open Circuit Protection ＞300V ＞300V ＞300V
Ignition [striking] voltage ＜5KV ＜5KV ＜5KV
Short-circuit protection YES YES YES
Open-circuit protection YES YES YES
Ignition failure protection YES YES YES
Thermal protection YES YES YES
Lamp failure protection YES YES YES
Low-voltage protection YES YES YES
Ballast to Lamp distance <5m <5m <5m
Working temperature -25℃～+50℃ -25℃～+50℃ -25℃～+50℃
Min starting temperature -25℃ -25℃ -25℃
EMC EN55015,FCC18C EN55015,FCC18C EN55015,FCC18C
Support dimming YES YES YES
Dimming setting 2-phase time control
3-phase time control		 2-phase time control
3-phase time control		 2-phase time control
3-phase time control
Packaging Inner Box Size
Carton Package 39*27*29.5 cm 39*27*29.5 cm 39*27*29.5 cm
Package Qty. 20pcs/carton 20pcs/carton 20pcs/carton
Package G.W. 13.4KG 13.4KG 13.4KG
Package CBM

45W 160Hz Digital Greenhouse Ballast 60W 70W HPS MH Lamp 3 Phase Time45W 160Hz Digital Greenhouse Ballast 60W 70W HPS MH Lamp 3 Phase Time45W 160Hz Digital Greenhouse Ballast 60W 70W HPS MH Lamp 3 Phase Time
