630W Metal Halide Ballast Thermal Cutouts Protect Against Short Circuits 50m
630W Metal Halide Ballast Thermal Cutouts Protect Against Short Circuits 50m
630W Metal Halide Ballast Thermal Cutouts Protect Against Short Circuits 50m
630W Metal Halide Ballast Thermal Cutouts Protect Against Short Circuits 50m
630W Metal Halide Ballast Thermal Cutouts Protect Against Short Circuits 50m
630W Metal Halide Ballast Thermal Cutouts Protect Against Short Circuits 50m
Specifications
Brand Name :
GrowBetter, 1/3, OEM
Model Number :
BRI-H630DP-A
Certification :
CE ROHS FCC
Place of Origin :
China
MOQ :
1
Payment Terms :
30% deposit, 70% before delivery
Supply Ability :
10000 set per month
Delivery Time :
5-7 days for S/O, 15-35 days for PO
Packaging Details :
Inner Box, Export Cartons, OEM
Price :
Negotiable
Material :
Aluminum
Input Voltage :
165~265VAC
Power Factor :
＞0.95
THD :
< 10%
Dimmable :
6 phase manual dim
Matched Tube :
HID, HPS, MH, CMH, CDM, XED
Ballast to Lamp Distance :
50 meters
Description

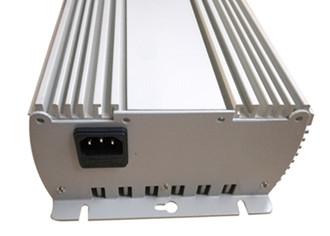

Grow Light Ballast 630W electronic digital ballast for plant growth lighting

Run 630W CMH Lamp.

Low frequency

High power factor PF>0.98

Low harmonic General harmonic THD≤ 10%

High light efficiency and energy saving.

Low power consumption

More lumens: 20-30% more lumens than magnetic ballasts

Constant output of power and light when voltage varies between -15%~15% of rating voltage

Open circuit and short circuit protection functions available.

Ignition failure protection

Overheat protection

Easy installation Easy to hang the lamp, no need any external starter and compensation capacitor.

Completely silent: no more humming and buzzing.

Constant output of power when voltage fluctuate with no flickering

No fans inside, water resistance and maintenance free operation.

Our Low Frequency Ballast Key Features & Benefits:

1. Low frequency square wave technology with soft start, constant power, protect and extend lamp lifetime.

2. 6 phase Dimming Function

3. High efficient and every saving

4. Run all types of HID Grow Light bulb including HPS, MH, CDM, XED ETC.

(High-pressure sodium (HPS), Metal halide lamp (MH), Ceramic discharge metal halide (CDM) and Xenon Lamp)

5. Long lighting distance up to 50 meters (164 feet), convenient for centralized control.

Normal ballasts lighting distance no more than 15 meters (50 feet)

6. 630W, 1000W, 1500W, 1800W, 2000W are available.

7. Multiple Protection OVP, OTP, SCP, OCP

Model BRI-H630DP-A
Material Aluminum
Dimension 268*180*98mm
Net Weight 3120g
Matched Bulb HPS/MH/CDM/XED
Input Voltage 165~265VAC
Input Current 4.24A~2.64A
Input Power 680W±15
Input Frequency 50Hz～60Hz
Surge Current ＜40A
Power Factor ＞0.95
THD ＜10%
Input Insurance 250V/10A
Ouput Power 630W±15
Lamp Voltage 120V～350V
Output Frequency 100Hz±10Hz
Crest Factor ＜1.7
Open Circuit Protection ＞300V
Ignition [striking] voltage ＜5KV
Short-circuit protection YES
Open-circuit protection YES
Ignition failure protection YES
Thermal protection YES
Lamp failure protection YES
Low-voltage protection YES
Ballast to Lamp distance <50m
Working temperature -25℃～+50℃
Min starting temperature -25℃
EMC EN55015,FCC18C
Support dimming YES
Dimming setting 6 phase manual dim
Inner Box Package 340*245*125mm
Outer Carton Package 682*492*252mm
Package Qty. 4

630W Metal Halide Ballast Thermal Cutouts Protect Against Short Circuits 50m630W Metal Halide Ballast Thermal Cutouts Protect Against Short Circuits 50m
