P80 Plasma Cutting Torch 4.5-5.5 Bar Air Pressure Long Service Life
P80 Plasma Cutting Torch 4.5-5.5 Bar Air Pressure Long Service Life
Specifications
Brand Name :
panasonic
Model Number :
P80 plasma cutting torch
Place of Origin :
made in china
MOQ :
1pc
Price :
negotiation
Payment Terms :
Western Union,, T/T,paypal,credit card
Supply Ability :
100 set one day
Delivery Time :
1-10 days
Packaging Details :
one piece of P80 cutting torch packing in one small box, then 5 pcs packing in carton
Name :
P80 plasma cutting torch
Standard length :
5 meter
Air pressure :
4.5-5.5 bar
Duty cycle :
60%
Rating :
40A,60A,80A,100A
conector :
9/16-18UNF,M16X1.5,M14X1
Type :
Hand torch head, machine torch head
H.S. Code :
85159000
Description

P80 plasma cutting torch plasma cutting machine parts new handle stype cutting torch


Our company produces :

1. MIG/MAG,CO2 : Binzel 14AK , 15AK ,24KD , 36KD , 501D , Panasonic 180A , 200A , 350A , 500A , Bernard 200E , Bernard 300E Bernard 400E , Bernard 600E ,Tweco 2# , Tweco 3# , Tweco 4# , Tweco 5# , Fronius AW4000 , AW5000 , AL3000 , AL4000 , Saf welding torch , Miller , and tregaskiss and gas nozzle,contact tip , contact tip holder , swan neck , gas diffuser liner etc .

2. Tig : WP12 , WP9 , WP17 , WP18 , WP26 welding torches and torch head (F / FV / V / P) , collet , collet body , gas lens , ceramic nozzle , aluminal nozzle , long / mediu / short cap etc.


3. Air plasma cutting : P80 , P160 , PT31 , AG60 , SG55 , JG60 , JG100 ,Trafimet serise , Hypertherm , and Thermal dynamics cutting torches , torch head , nozzle , electrodes , tips , ceramic shield cap , white wheel , swirl ring etc .


4. cable joint , earth clamp


5. welding helmet , electorde holder


6. tungsten electrode

1 . P80 plasma cutting torch plasma cutting machine parts cutting torch view:

Frist one , CNC machine torch head :P80 Plasma Cutting Torch 4.5-5.5 Bar Air Pressure Long Service Life

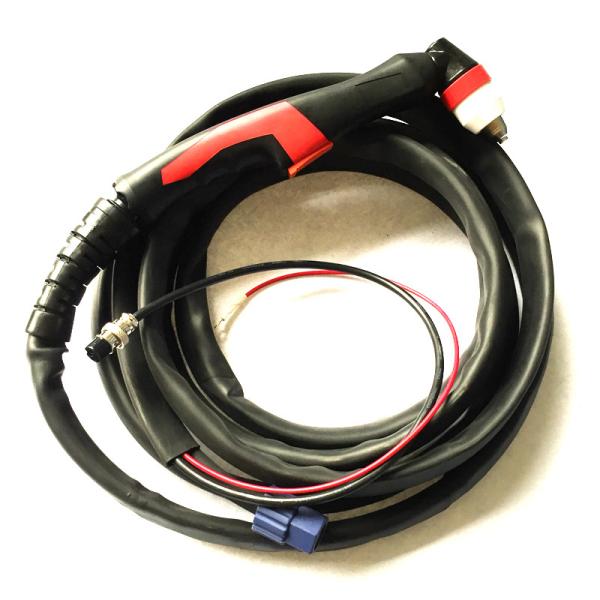

Second one , red handle P80 torch

P80 Plasma Cutting Torch 4.5-5.5 Bar Air Pressure Long Service Life

Third one New handle P80 plasma cutting torch head

P80 Plasma Cutting Torch 4.5-5.5 Bar Air Pressure Long Service Life

2 . P80 plasma cutting torch plasma cutting machine parts cutting torch technology data :

Technical Rating Duty cycle Air pressure

Standard

Length

 N.w Packing size
P80 ( 40A ) Plasma cutting torch 40A 60% 4.5~5.5 bar 5M 4.5KG 34*34*6cm
P80 ( 60A ) Plasma cutting torch 60A 60% 4.5~5.5 bar 5M 4.5KG 34*34*6cm
P80 ( 80A ) Plasma cutting torch 80A 60% 4.5~5.5 bar 5M 4.5KG 34*34*6cm
P80 ( 100A ) Plasma cutting torch 100A 100% 4.5~5.5 bar 5M 4.5KG 34*34*7cm

3 . P80 plasma cutting torch plasma cutting machine parts cutting torch Item No:

Description Standard No.
P80 Plasma cutting torch Hand torch head YT-10PD
Electrode

TET02033
Electrode imported Haf
Nozzle 1.3mm TET01310
Nozzle 1.5mm TET01512
Nozzle 1.7mm
Nozzle 1.3mm TET01305
Nozzle 1.5mm TET01305
Nozzle 1.7mm
Shield TGN02004
Shield(Argentine ring)
Site wheel
Machine torch head YT-10PE

4 . P80 plasma cutting torch packing

. 1 piece high quality plasma torch p80 plasma torch for CNC plasma machine packed in a plastic bag

. then packed in a box(box size 34*34*7CM)

. 5 pieces high quality plasma torch p80 plasma torch for CNC plasma machine packed in a carton(carton size 38*36*35CM)

. 135 pieces high quality plasma torch p80 plasma torch for CNC plasma machine packed in a pallet(pallet size 110*110*120CM)
