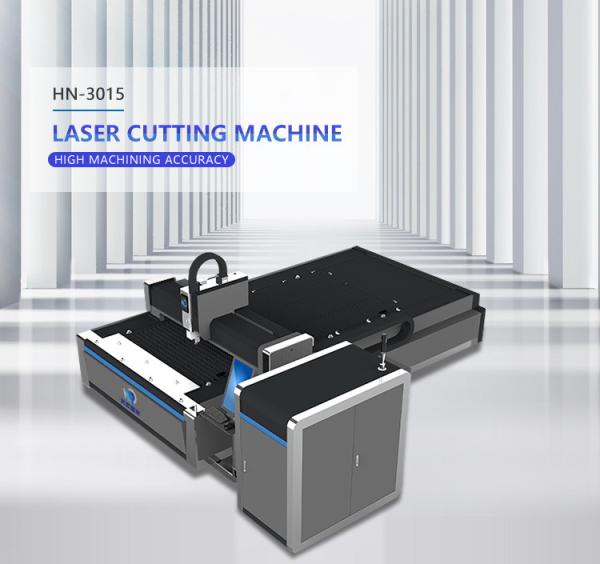

1500 X 3000 Raycus 1000W Stainless Carton Metal Cutter Fiber Laser Cutting Machine
1500 X 3000 Raycus 1000W Stainless Carton Metal Cutter Fiber Laser Cutting Machine
1500 X 3000 Raycus 1000W Stainless Carton Metal Cutter Fiber Laser Cutting Machine
1500 X 3000 Raycus 1000W Stainless Carton Metal Cutter Fiber Laser Cutting Machine
1500 X 3000 Raycus 1000W Stainless Carton Metal Cutter Fiber Laser Cutting Machine
1500 X 3000 Raycus 1000W Stainless Carton Metal Cutter Fiber Laser Cutting Machine
1500 X 3000 Raycus 1000W Stainless Carton Metal Cutter Fiber Laser Cutting Machine
1500 X 3000 Raycus 1000W Stainless Carton Metal Cutter Fiber Laser Cutting Machine
Specifications
Brand Name :
Honest
Model Number :
3015
Certification :
CE ISO
Place of Origin :
China
MOQ :
1
Price :
16800$-30000$ per one set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram,Trade Assurance
Supply Ability :
20 per a month
Delivery Time :
10-20 wooking days
Packaging Details :
wooden package
Working table :
3000*1500 (mm)
After-sales service provided :
Engineers available to service machinery overseas
Laser source :
Raycus or IPG or Max
Cooling mode :
Water Cooling
Cutting speed :
120/min
Control software :
Cypcut
Graphic format supported :
DXF,PLT,AI,DST,BMP
Condition :
New
Description
Hot Sale Low Price 1500 X 3000 Raycus 1000W Stainless Carton Metal Cutter Fiber Laser Cutting Machine
Product Overview

Hot sale low price 1500 X 3000 stainless carton metal cutter fiber laser cutting machine
The principle of the fiber laser cutting machine: fiber laser is to dope pump material into the fiber. After the laser of a specific wavelength emitted by the semiconductor laser is combined, the fiber generates laser light and focuses on the surface of the work-piece, so that the work-piece is The area irradiated by the light spot melts and vaporizes in an instant, and the automatic drilling is realized by moving the irradiation position of the light spot through the computer-controlled numerical control mechanical system.
PRODUCT SPECIFICATIONS
Model
HN-1530 laser cutting machine
Working area
1530mm x 3000mm
Laser type
Fiber laser
Rated laser power(optional)
1000W
Traditional system
Gantry double drive structure
Lubrication system
Fully automatic
Maximum speed
100m/min
Maximum acceleration
1.0G
Positioning accuracy
±0.01mm/1000mm
Repeated positioning accuracy
±0.03mm/1000mm
Support for graphic formats
CAD,DXF(etc)
Work environment
0-40°C,humidity≤80%,no condensation
Total power
20KW
Power demand
Three phase 380V /50HZ /60HZ
Outline size
4450mm x 2450mm x 1800mm
Total weight approximately
4000KG
Machine configuration
Machine Advantage
(1) High precision, fast speed, narrow cutting seam, minimum heat-affected zone, smooth cutting surface without burrs;

(2) The laser cutting head does not touch the surface of the material and will not scratch the work-piece;

(3) The slit is the narrowest, the heat-affected zone is the smallest, the local deformation of the work-piece is small, and there is no mechanical deformation;

(4) Good processing flexibility, can process any graphics, and can also cut pipes and other profiles;

(5) It can cut any hardness materials such as steel plate, stainless steel, aluminum alloy plate, cemented carbide, etc. without deformation.
Product application
Materials that can be processed by the fiber laser cutting machine: It can cut a variety of metal plates and pipes, mainly suitable for stainless steel, carbon steel, alloy steel, silicon steel, spring steel, aluminum, aluminum alloy, galvanized sheet, galvanized steel, pickling Plate, copper, silver, Cutting of metal sheets and pipes such as gold and qin.

The applicable range of fiber laser cutting machine: metal sheet processing, advertising sign production, high and low voltage electrical cabinets Production, mechanical parts, kitchenware, automobiles, machinery, metal crafts, saw blades, electrical parts, eye industry, elasticReeds, circuit boards, electric kettles, medical microelectronics, hardware, knife measuring tools and other industries.
Certifications
All products are available upon request, with or without trademarks.If you need OEM service with your own brand or product,please let us know,If you have any other specific requirements,please feel free to contact us.Our factory has obtained the import and export license issued by the Ministry of foreign trade,and passed the ISO9001 quality management system certification and CE certification.In the quality layer by layer,we will wholeheartedly serve for the majority of customers.
