Board Tube Optical Fiber Laser Cutting Machine Integrated 1000W 3000W
Board Tube Optical Fiber Laser Cutting Machine Integrated 1000W 3000W
Board Tube Optical Fiber Laser Cutting Machine Integrated 1000W 3000W
Board Tube Optical Fiber Laser Cutting Machine Integrated 1000W 3000W
Specifications
Brand Name :
HONEST
Model Number :
HN1530
Certification :
CE ISO
Place of Origin :
CHINA
MOQ :
1Set
Price :
$30000-$40000/Set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30 sets per month
Delivery Time :
30 work days
Packaging Details :
The inner packing is plastic film and the outer packing is wooden box or plywood Only plastic sheeting wrapped naked with wooden trays.
Name :
Board tube integrated optical fibern Fiber Laser Cutting Machine
Graphic format supported :
DXF,PLT,AI,DST,BMP
Condition :
New
Cnc or not :
CNC
Control software :
Professional cutting software
Application :
Laser Cutting
Cutting speed :
100Cm/ minute
Laser power :
1000W / 2000W / 3000W
Cutting area :
1500*3000mm
Description

Board Tube Integrated Optical Fibern Fiber Laser Cutting Machine

Fiber laser cutting machine is a high-tech equipment integrating advanced fiber laser technology, numerical control technology and precision mechanical technology. It uses an advanced fiber laser to output a high-energy density laser beam. The cutting head focuses the beam on the surface of the workpiece to form a small spot (the smallest diameter can be less than 0.1mm), so that the workpiece is illuminated by the ultra-fine focusing point. Melt and evaporate, and then evaporate to form a hole. The numerical control mechanical system moves the position of the laser spot to make the hole continuously form a narrow slit to realize automatic cutting.

1. Adopt industrial heavy duty steel structure, plate steel joint welding with square pipe steel, under heat treatment, will not deform after long time using.

2. Configure with HIWIN linear rail for all axis, to ensure durable and high precision for long time processing.
3. X, Y axis configure with high accuracy grinding type gear rack, Japan Shimpo reducer, high speed and precision can be ensured,Z axis are transmitting by high accuracy rolling ball screw.
4. Adopt France Schneider AC servo system for all axis, larger power, close-cycle control, high precision positioning, strongertorque force, dynamic corresponding time is shorter, and the overload resistance ability is strong.

5. Adopt industrial optical fiber cutting system, easy to install, maintenance and cam module based on autocad kernel development,built-in process, ensure high-quality cutting effect.
6. Adopt professional Raytools laser cutting head, imported optical lens, focus spot smaller, cutting lines more precise,higher efficiency and better processing quality can be ensured.
7. Dual air path control, equipped with Japan SMC intelligent gas unit, automatic pressure regulation, air exchange, pressuredetection, more simple to use.
8. Fiber laser transmitting, flexible processing, realized high accuracy cutting on every point.
9. Compatible with multiple software, can design ant graphic and letters as you like, operating simple, flexible and easy.

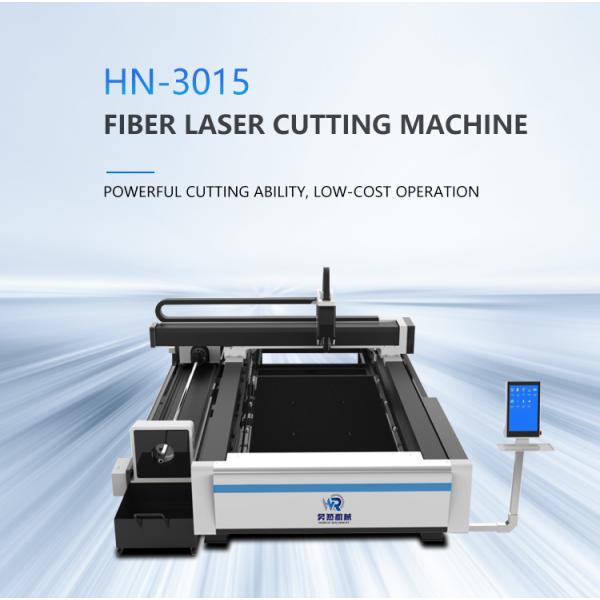

Model HN-3015
Working area 3000mm x 1500mm
Rated laser power (optional) 500W~2000W
Traditional system Gantry double drive structure
lubrication system Fully automatic
Maximum speed 100m/min
Maximum acceleration 1.0G
positioning accuracy ±0.01mm/1000mm
Repeated positioning accuracy ±0.03mm/1000mm
Support for graphic formats CAD, DXF(etc)
Total power 20KW
Power demand Three phase 380V / 50Hz / 60Hz
Outline size 4450mm x 2450mm x 1800mm

Board Tube Optical Fiber Laser Cutting Machine Integrated 1000W 3000W

Product details

Bed part

The bed body is completely independently researched and developed. The bed base is welded by a square tube and processed by a large gantry milling machine.

We have many years of processing experience for large-scale machine bed, high temperature annealing to eliminate stress and natural failure treatment, internal

After the partial stress is released, finish machining is performed to ensure machining accuracy! The parallelism of each machine bed out of the factory is less than 0.02mm. Only with a solid bed can an efficient and high-precision cutting speed be guaranteed!

Board Tube Optical Fiber Laser Cutting Machine Integrated 1000W 3000W

Board Tube Optical Fiber Laser Cutting Machine Integrated 1000W 3000W

Company Information
Shandong Honest machinery equipment co., LTD is one of the largest laser equipment manufacturer in China, the company focus on rate of Yu Dagong laser processing complete sets of equipment research and development, manufacture and sales, including the high power laser cutting machine, laser welding machine and multi-function laser processing equipment, providing customers with personalized and professional laser processing system solutions.
Honest laser main products cover the full power of fiber laser cutting, laser machining equipment and cutting equipment, products widely used in iron and steel metallurgy, non-ferrous metal, automobile and parts, aviation, military electronics, precision instruments, machinery manufacturing, hardware tools, integrated circuit, solar energy, etc.
The company advocates "taking the interests and needs of customers as the foundation", and devotes itself to "creating value for customers and benefits for society".
Advanced technology is the guarantee of product quality, the company has completely independent intellectual property rights, has established a sound and effective quality management system and internal control system;
The company's products and services to prevention, the implementation of customer return visit, continuous improvement, quick response, efficient and accurate service mechanism, to ensure the stable and efficient operation of products, maximize to help customers to improve economic benefits.
The sales area covers the whole country, and expands to overseas, and the products are highly praised by customers.
The company is willing to work together with all partners to make progress and win-win development together to create the largest high power laser processing equipment manufacturing and research and development base.

Board Tube Optical Fiber Laser Cutting Machine Integrated 1000W 3000W

Application&samples

It can cut many kinds of metal plates and pipes. It is mainly suitable for the fast cutting of stainless steel, carbon steel, manganese steel, galvanized plate, various alloy plates, rare metals and other materials.

Applications

Kitchen fixtures, hardware cabinets, sheet metal processing, auto parts, refrigerators, air conditioners, elevators, hotel metal supplies. fiber laser cutting machine

Board Tube Optical Fiber Laser Cutting Machine Integrated 1000W 3000W

Packaging & Shipping

1. Stable delivery time
Our factory has large-scale production, and the supply capacity of fiber laser cutting machine is very strong, the shipment is very large, and the delivery time is very fast.
2. Release product quality standards
From the selection of materials and accessories, the links of manufacturing paint, to installation and commissioning, trial and error, layered quality control, to ensure that the fiber laser cutting machine is in line with CE, ISO standards
3. The traffic conditions are very convenient
We are located in a transportation hub, land transportation, water transportation,
The transportation conditions are very convenient, which can ensure reasonable transportation costs and sufficient transportation time.

Board Tube Optical Fiber Laser Cutting Machine Integrated 1000W 3000W

Order Process
1. Provide quotation sheet with technical documents--Customer confirm it's ok. 2. Customer pays 30% deposit--Arrange production--Provide good pictures and videos. 3. Pay 70% of the balance--Document production and customs clearance information. 4. Sales provide instructions and operation videos--Delivery--Dedicated after--Sales personnel Online service is available.

Our Services

Pre-sale
Provide detailed suggestions, as well as the introduction of laser fiber cutting machine, program suggestions
And on-site inspection, as far as possible to meet your problems and needs.
Payment and machine production
Support a variety of payment methods for laser fiber cutting machines, the production process is transparent, standardized, and fast delivery. After the machine is completed, it can take a video for you
After sale
Support diversified guidance, training, voice and video images of laser fiber cutting machines, and even on-site installation, on-site training, daily maintenance, continuous return visits, and customer service of overseas fiber machines.

Board Tube Optical Fiber Laser Cutting Machine Integrated 1000W 3000W

Customer visiting

We welcome customers to visit the factory, we will let you buy, we will have customers to visit the factory and customers online purchase feedback, through feedback learning experience, continuous progress, better service for you.

Shandong Honest is willing to unremitting pursuit and efforts, hand in hand with merchants to create a brilliant future

Board Tube Optical Fiber Laser Cutting Machine Integrated 1000W 3000W

FAQ

1: When I got this machine, but I don’t know how to use it. What should I do?

We will send the operation video and English operation manual of the machine together with the equipment. If you still have questions, we can talk to you via video call and email. If the problem is still not solved for you, we can provide you with overseas engineer services

2: If some problems happen to this machine during warranty period, what should I do?

We will supply free parts during machine warranty period if machine have some problems. While we alsosupply free life long after-sales service. So any doubts, just let us know, we will give you solutions.

3: Before sending me an inquiry on our fiber laser, it is better for you to provide me the following information

1)Your metal or non-metal material size. Because in our factory, we have different models according to working area.

2)Your materials.

Metal/Acrylic/plywood/MDF?

3)You want to engrave or cut?

If cut, could you tell me your cutting thickness? Because different cutting thickness need different laser laser power.
