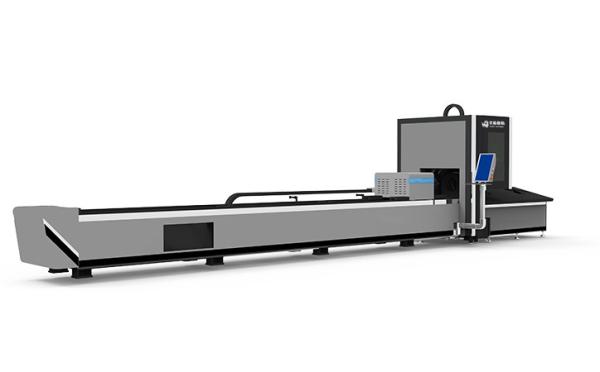

Cnc Sheet Metal Fiber Laser Tube Cutting Machine 4000W High Speed
Cnc Sheet Metal Fiber Laser Tube Cutting Machine 4000W High Speed
Cnc Sheet Metal Fiber Laser Tube Cutting Machine 4000W High Speed
Cnc Sheet Metal Fiber Laser Tube Cutting Machine 4000W High Speed
Specifications
Brand Name :
Honest
Model Number :
HN 2060
Certification :
CE ISO
Place of Origin :
China
MOQ :
1 Set
Price :
$2000 / Set-$40000 / Set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30 Set / Month
Delivery Time :
After 3-20 Days
Packaging Details :
Wooden Package
Application: :
LASER CUTTING
Applicable Material :
Metal
Cutting Area :
200mm*6000mm
Cutting Speed :
20 M/Min
Cooling Mode :
WATER COOLING
Control Software :
Cypcut
Guiderail Brand :
PMI
Description

4000W High Speed Cnc Sheet Metal Fiber Laser Tube Cutting Machine

►Product Description

Pipe laser cutting machine is a professional profile laser cutting machine, which can cut round and square pipes. It is equipped with a special cutting operation system. It has simple operation, high precision and strong professionalism. It is suitable for professional profile cutting. It is widely used in sports equipment, petroleum pipeline, chemical equipment and other industries. It can cut carbon steel and stainless steel. The cutting length is 6m, 9m and 12m,Applicable to all kinds of metal pipes: round pipe, square pipe, rectangular pipe, oval pipe, waist pipe, D-shaped pipe, hexagonal pipe, special-shaped pipe, etc.Working size: 3000mm / 6000mm / 12000mm / customized.

Cnc Sheet Metal Fiber Laser Tube Cutting Machine 4000W High Speed

►PRODUCT SPECIFICATIONS

Model
HN-2060 laser cutting machine
Working area
200mm x 6000mm
Laser type
Fiber laser
Rated laser power(optional)
1000W/2000W/3000W/4000W/5000W/6000W/Optail
Traditional system
Gantry double drive structure
Lubrication system
Fully automatic
Maximum speed
100m/min
Maximum acceleration
1.0G
Positioning accuracy
±0.01mm/1000mm
Repeated positioning accuracy
±0.03mm/1000mm
Support for graphic formats
CAD,DXF(etc)
Work environment
0-40°C,humidity≤80%,no condensation
Total power
20KW
Power demand
Three phase 380V /50HZ /60HZ
Outline size
4450mm x 2450mm x 1800mm
Total weight approximately
4000KG

►PRODUCT DETAILS

Cnc Sheet Metal Fiber Laser Tube Cutting Machine 4000W High Speed

1. Motor driven, front and rear electric chuck clamping design, automatic adjustment center, wide clamping range, simple and stable operation.

2. Gear transmission mode, higher transmission efficiency.
3.Automatic support device: intelligent pipe cutting design, solve the deformation problem during long pipe cutting operation, and effectively ensure the support stability.
4.Japan Fuji servo motor, stable and powerful power output.
5.Laser cutting head: The laser cutting head is the mechanical part most directly involved in laser processing and an important part of the laser cutting machine. The machine adopts the latest upgraded laser cutting head of Swiss raytools. Compared with the previous version, the upgraded version has the following characteristics:
a. Optimized optical configuration and smooth and effective air flow design;
b. Fully upgraded dust-proof design and double-layer protection. When inserting and removing optical fibers, the pollution risk of collimator is very high. The new laser head adds an upper protective mirror to the collimator assembly to minimize the risk of collimator contamination. At the same time, the structure of the protective mirror has also been comprehensively upgraded, and a dust cover has been added on the protective mirror. The double-layer protection design greatly improves the user's experience of replacing protective lenses, and the risk of lens pollution is almost zero;
c. Add anti-collision function of laser head body;
d. Dial focus adjustment and manual correction, fine and flexible adjustment, adjustable range of 20mm and accuracy of 0.03mm;
e. A variety of fiber interfaces, suitable for all kinds of fiber lasers;
f. Collimator, focusing mirror and nozzle have cooling structure.
►Product Application

Cnc Sheet Metal Fiber Laser Tube Cutting Machine 4000W High Speed

1. Sheet metal processing:Fiber laser cutting machine has the advantages of high precision, high speed, flexible processing (without mold opening), etc., and it has become a product of sheet metal processing. The high quality and high speed of fiber laser cutting machine are unique in the sheet metal industry and are favored by sheet metal companies.

2. Automobile manufacturing:The automobile industry is a technology-intensive industry. Fiber laser cutting machine laser is a kind of cutting equipment. Now 50%~70% of auto parts are processed by laser. The automobile industry mainly uses laser welding and laser cutting as the main processing. Means, including plane cutting, three-dimensional cutting.

3. Chassis cabinet:Manufacturers of computer cases, electrical switches, electrical cabinets, and elevators choose Pentium Laser's fiber laser cutting machine. What they value is the stability and high speed of the equipment. There is no need for secondary processing of the work-piece, which greatly increases production efficiency and reduces production costs.

4. Advertising industry:The advertising industry is now more and more processing and cutting metal characters. Traditional metal characters have to go through a variety of processing techniques such as bending, welding, and polishing. Now, as long as the graphics are input into the computer, the fiber laser cutting machine can be used. Perform high-speed cutting.

►Customer visiting

Cnc Sheet Metal Fiber Laser Tube Cutting Machine 4000W High Speed
