Class 1 Polypropylene Non Woven Fabric Geotextile 200gsm / 300gsm / 400gsm
Class 1 Polypropylene Non Woven Fabric Geotextile 200gsm / 300gsm / 400gsm
Class 1 Polypropylene Non Woven Fabric Geotextile 200gsm / 300gsm / 400gsm
Class 1 Polypropylene Non Woven Fabric Geotextile 200gsm / 300gsm / 400gsm
Class 1 Polypropylene Non Woven Fabric Geotextile 200gsm / 300gsm / 400gsm
Class 1 Polypropylene Non Woven Fabric Geotextile 200gsm / 300gsm / 400gsm
Specifications
Brand Name :
Hengquan
Model Number :
TGSG15,TGSG20,TGSG25,TGSG30,TGSG35,TGSG40,TGSG45,TGSG50
Certification :
ISO 9001
Place of Origin :
China
MOQ :
5000m2
Price :
0.25usd/㎡
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
40000 squre meters per week
Delivery Time :
5-8 days
Packaging Details :
packing belt
Thickness :
0.9-20.0mm
length :
50-100m
Width :
1-7m
Package :
PP Woven Bags
color :
White, black, yellow, etc
Applications :
Landfill
Raw Material :
PP/ PET (Polypropylene/Polyester)
Weight :
100-1000g/sqm
Description

Polypropylene nonwoven geotextile 200gsm/300gsm/400gsm

Product Description

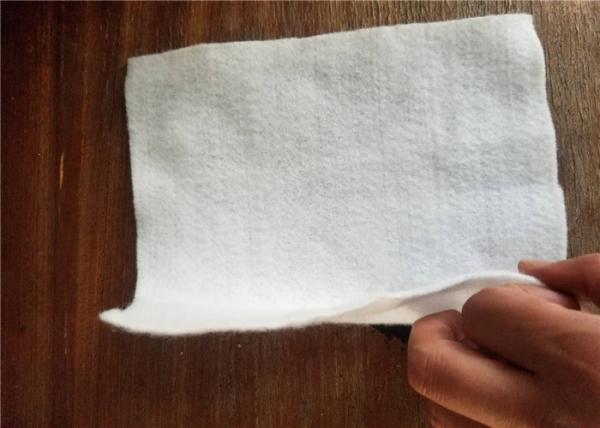

Needle punched nonwoven Geotextiles are made of polyester or polypropylene in random directions and punched together by needles. GSNW Geotextiles has good impermeability and resistance to deformation, which allows geotextiles be widely applied in civil projects for separation,filtration,reinforcement, protection and drainage.


GSNW Geotextiles can be used as:

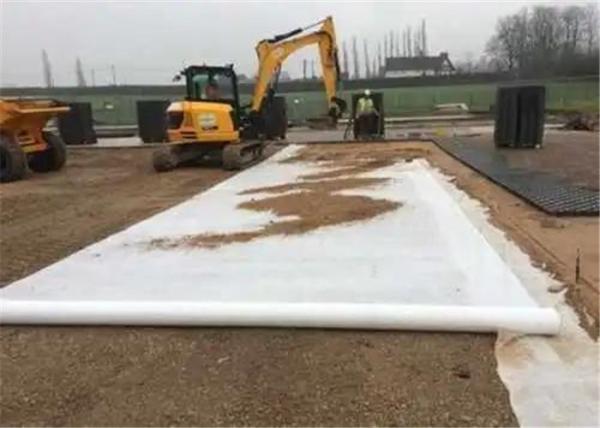

* Filtration or separation layers in civil engineering projects of roads and railway construction;

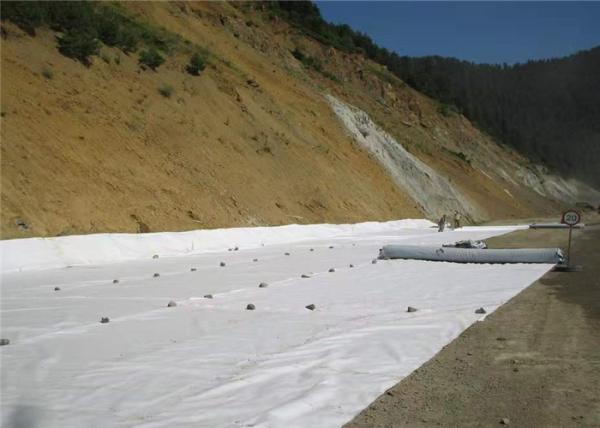

* Protect layer for geomembranes in landfill construction;
* Coastal defence applications
* Landscaping projects to maintain soil and protect land surfaces and structures from weeds and root growth.

1. UV resistant.
2. High temperature resistance to up to 230℃ maintaining structure stability and original physical properties.
3. High flat drainage and vertical permeability.
4. High creep resistance.
5. Resistance of erosion of chemicals in soil as well as thecorrosion of gasoline and diesel etc.
6. High elongation under certain stress, thus able to adapt to uneven and irregular bases.

Gram weight
Thickness(mm)
Breaking strength(kn/m)
CBR burst strength(KN)
Elongation at break(%)
Tear Strength (KN)
Sieve size O99(O35)mm
100
0.9
2.5
0.3
25-100
0.08
0.07-2.0
150
1.3
4.5
0.6
25-100
0.12
0.07-2.0
200
1.7
6.5
0.9
25-100
0.16
0.07-2.0
250
2.1
8.0
1.2
25-100
0.20
0.07-2.0
300
2.4
9.5
1.5
25-100
0.24
0.07-2.0
350
2.7
11.0
1.8
25-100
0.28
0.07-2.0
400
3.0
12.5
2.1
25-100
0.33
0.07-2.0
450
3.3
14.0
2.4
25-100
0.38
0.07-2.0
500
3.6
16.0
2.7
25-100
0.42
0.07-2.0
600
4.1
19.0
3.2
25-100
0.46
0.07-2.0
800
5.0
25.0
4.0
25-100
0.60
0.07-2.0

Class 1 Polypropylene Non Woven Fabric Geotextile 200gsm / 300gsm / 400gsmClass 1 Polypropylene Non Woven Fabric Geotextile 200gsm / 300gsm / 400gsmClass 1 Polypropylene Non Woven Fabric Geotextile 200gsm / 300gsm / 400gsmClass 1 Polypropylene Non Woven Fabric Geotextile 200gsm / 300gsm / 400gsmClass 1 Polypropylene Non Woven Fabric Geotextile 200gsm / 300gsm / 400gsmClass 1 Polypropylene Non Woven Fabric Geotextile 200gsm / 300gsm / 400gsm
