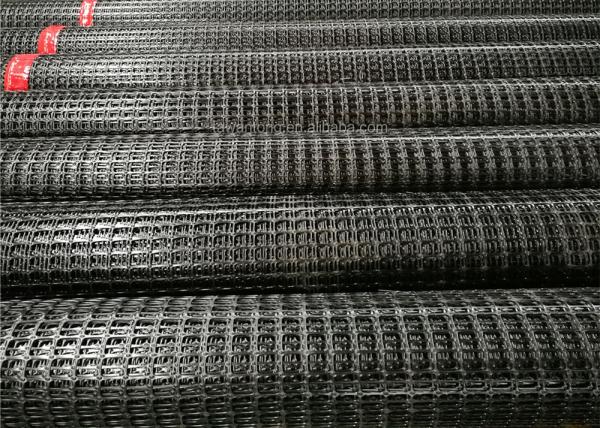

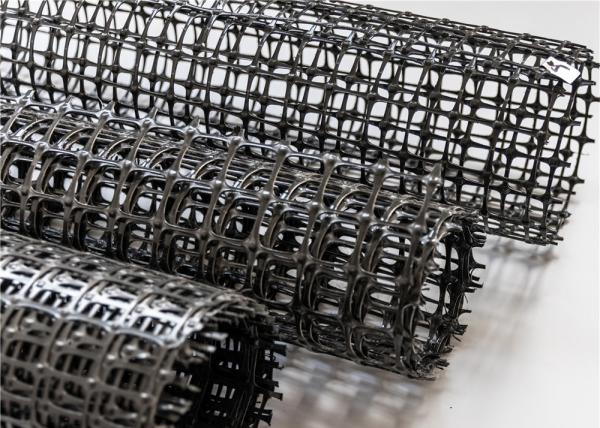

Earthing Products Polypropylene Geogrid For Road Soil Stabilizer
Earthing Products Polypropylene Geogrid For Road Soil Stabilizer
Earthing Products Polypropylene Geogrid For Road Soil Stabilizer
Earthing Products Polypropylene Geogrid For Road Soil Stabilizer
Earthing Products Polypropylene Geogrid For Road Soil Stabilizer
Earthing Products Polypropylene Geogrid For Road Soil Stabilizer
Specifications
Brand Name :
Hengquan
Model Number :
TGSG15,TGSG20,TGSG25,TGSG30,TGSG35,TGSG40,TGSG45,TGSG50
Certification :
ISO 9001
Place of Origin :
China
MOQ :
1000m2
Price :
Deliberation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
40000 squre meters per week
Delivery Time :
5-8 days
Packaging Details :
packing belt
Product Name :
Plastic geogrid
width :
3.9 meters or 5.9 meters
Keywords :
Civil Engineering Construction Geogrid
Tensile Strength :
30 KN X 30 KN
Mesh hole :
32*32mm
color :
black, gray, green
Applications :
Soft foundation reinforcement
Function :
Improve the bearing capacity of foundation
Description

Earthing products plastic PP biaxial geogrid price for road soil stabilizer

About Hengquan

We have experience for more than 7 years. There are two product lines for geogrid and geocell. Factory work 24hours a day, we sold more than 100,000,000rmb last year(2020). Our customers are all over the world.

Earthing Products Polypropylene Geogrid For Road Soil Stabilizer

Brief Introduction of Geocell Confinement System

There are two common problems at the junction of old and new roads: one is that the design is not comprehensive, and there are many technical difficulties in construction; the other is that the strength of the old road is insufficient and the thickness of the reinforcement layer is thin. The use of geogrid can make up for the deficiencies in design and construction, and improve the tightness of the new and old joints. Taking a highway project as an example, the original width of the pavement is 9 m, and now it is expanded to 15 m. The pavement structure layers from top to bottom are: AC-13 asphalt concrete layer, AC-20 asphalt concrete layer, cement stabilized gravel layer, graded gravel layer. Using glass fiber geogrid material, the breaking strength is ≥50 kN/m, the breaking elongation is ≥3%, the grid size is 25.4mm×25.4mm, and the width is 5m. After the construction is completed, the line can pass smoothly, and the appearance and quality are better than the old pavement structure; compared with the replacement and graded gravel method, the use of geogrid not only reduces the cost, but also saves maintenance costs, showing good social and economic benefits.

Geogrid System Characteristic

Geogrid has large tensile strength and tensile modulus, which can realize the uniform distribution of load and stress in a large area. In the soft foundation or soil layer, the application of geogrid can reduce and disperse the concentrated stress of the upper load on the soft foundation; In the asphalt structure layer, the creep effect of asphalt can be weakened and the cracking of asphalt layer can be avoided. The mesh shape of geogrid is the same, and the shear resistance of upper particles and lower particles will not be affected. The deformation and displacement caused by load compaction can be avoided under the action of stiffness, tensile strength and mesh interlocking,
Improve particle compaction effect.

Laying method

2. The construction method of the second layer of geogrid is the same as that of the first layer. Finally, 0.3m of medium (coarse) sand is filled. The filling method is the same as that of the first layer. After static pressing twice with a 25T road roller, the roadbed will be The base reinforcement is done.
3. After the third layer (coarse) sand is rolled, lay two geogrids on both sides of the slope along the longitudinal direction of the line, overlap 0.16m, and connect them in the same way, and then start the earthwork construction operation, laying For slope protection of geogrids, the laid side lines must be measured on each layer, and each side must ensure that the geogrids are buried within 0.10m of the slope after the slope is repaired.

Factory and Equipment:

Earthing Products Polypropylene Geogrid For Road Soil Stabilizer

Product inventory:

Earthing Products Polypropylene Geogrid For Road Soil Stabilizer

Application:

1. If used in road construction, geogrid can not only help the foundation increase the bearing capacity, effectively prolong the service life of the foundation, but also effectively prevent the ground from cracking or collapse, so as to ensure that the ground can remain beautiful and smooth .
2. If used in culvert construction, geogrid can effectively prevent cracks in culverts and prevent culverts from collapsing. If used in soil slope construction, geogrid can effectively prevent soil loss from soil slope.

Earthing Products Polypropylene Geogrid For Road Soil Stabilizer

Specifications
Specifications: Biaxial geogrid
Item Properties Units MD Values1 XMD Values1
1 Aperture dimensions2 mm (in.) 25 (1.0) 33 (1.3)
2 Minimum rib thickness2 mm (in.) 0.76 (0.03) 0.76 (0.03)
3 Tensile strength at 2% strain3 kN/m (lb/ft.) 4.1 (280) 6.6 (450)
4 Tensile strength at 5% strain3 kN/m (lb/ft.) 8.5 (580) 13.4 (920)
5 Ultimate tensile strength3 kN/m (lb/ft.) 12.4 (850) 19.0 (1,300)
Structural Properties
6 Junction efficiency4 % MD Values1
7 Flexural stiffness5 mg-cm 250.000
8 Aperture stability6 m-N/deg 0.32
Durability
9 Resistance to installation damage7 %SC/%SW/%GP 95/93/90
10 Resistance to long term degradation8 % 100
11 Resistance to UV degradation9 % 100
Dimensions
12 Roll sizes m (ft.) 3.0 × 75.0 (9.8 × 246); 4.0 × 75.0 (13.1 × 246)
Certifications
Our Company

Year of Registration: 2014

Place of Registration: China

Registrated Capital: CNY105,000,000.00

Briture Co., Ltd

was approved by Chinese Bureau of Commerce

Contact

Leo

Tel: +8615031817097

Whatsapp/Wechat: +8615031817097

Email: leocui2017@hotmail.com

Website: www.plastic-geogrid.ecer.com

Download PDF: Catalog of Hengquan -plastic geogrid.pdf
