Reinforce Roadbed Easy Installation 1100N Cellular Confinement System
Reinforce Roadbed Easy Installation 1100N Cellular Confinement System
Reinforce Roadbed Easy Installation 1100N Cellular Confinement System
Reinforce Roadbed Easy Installation 1100N Cellular Confinement System
Reinforce Roadbed Easy Installation 1100N Cellular Confinement System
Reinforce Roadbed Easy Installation 1100N Cellular Confinement System
Reinforce Roadbed Easy Installation 1100N Cellular Confinement System
Reinforce Roadbed Easy Installation 1100N Cellular Confinement System
Reinforce Roadbed Easy Installation 1100N Cellular Confinement System
Reinforce Roadbed Easy Installation 1100N Cellular Confinement System
Reinforce Roadbed Easy Installation 1100N Cellular Confinement System
Reinforce Roadbed Easy Installation 1100N Cellular Confinement System
Specifications
Place of Origin :
China
Brand Name :
Hengquan
Certification :
ISO 9001
Model Number :
Cell Heighth: 50-300mm
MOQ :
1000m2
Price :
Deliberation
Packaging Details :
packing belt
Delivery Time :
5-8 days
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
40000M2 per week
Material :
High density polyethylene
Cell Height :
50-300mm
Weld Spacing :
330mm to 1600mm
Seam Peel Strength :
1000N, 1100N,1200N,1420N
Thickness :
1.0-1.6mm
Color :
Black Green Gray
Used :
Embankment Restoration
Feature :
Eco-Friendly
Description

Reinforce Roadbed Easier To Install High Strength Cellular Confinement System

Cellular Confinement System Information

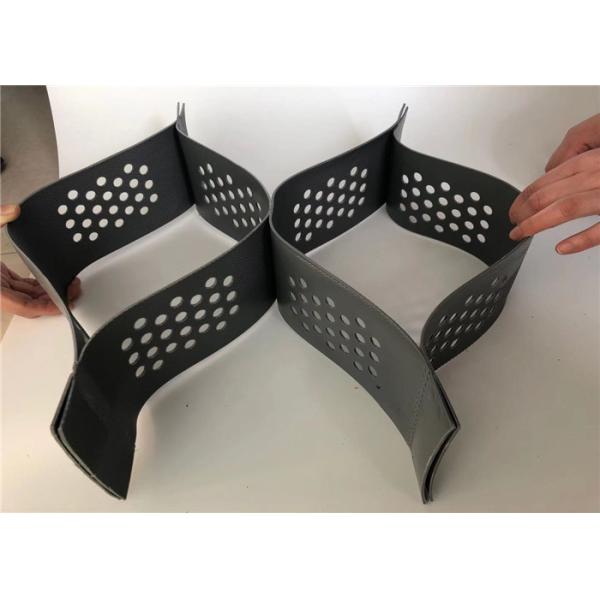

Cellular Confinement System(CCS)--also known as geocell, it is a kind of three-dimensional network structure shaped by high-strength HDPE (high density polyethylene) sheets through ultrasonic welding of high strength. The depth of the geocells as well as the size of each cellular unit can vary as per design requirements. The surface of geocells are smooth or textured, the textured geocells increase soil-geocell wall friction. Geocells can be perforated or non-perforated.

Cellular Confinement System Specification

1. Cell depth: 50mm,100mm,150mm,200mm,250mm,300mm
2. Welding distance: 330mm~1600mm
3. Thickness: 1.0mm,1.2mm(smooth), 1.5mm,1.8mm(textured)
4. Appearance/surface: smooth/textured

Item Main Specification
Weld Spacing 330mm to 1600mm
Cell Height 50mm to 300mm
Seam Peel Strength 1000N, 1100N,1200N,1420N
Color Black, Green, Sand, pray
Surface Smooth/Textured/Perforated

Cellular Confinement System Feature

1,Eco-Friendly

2,Inexpensive

3,Permanent Solution

4,Low Maintenance

5,Cells can be filled with soil and planted with vegetation or filled with aggregates

6,Easier to install than a retaining wall

Start An Evaluation For Your Project

We can help you with geocell design support. Take advantage of our 35-year geocell technology experience and let us perform a free evaluation for your GEOWEB® project. Our recommendations will deliver a structurally-sound, cost-effective solution based on three-decades of accredited research and testing data.
