Specifications
Place of Origin :
China
Brand Name :
Hengquan
Certification :
ISO 9001
Model Number :
EGA30-100 KN
MOQ :
1000m2
Price :
Deliberation
Packaging Details :
packing belt
Delivery Time :
5-8 days
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
40000M2 per week
Material :
Glass Fiber
Hole :
25.4*25.4 mm or 12.7*12.7 mm
Width :
3.95 or 5.95 meters
Length :
100 meters
Feature :
High Tensile
Uesd :
strength road surface
Description

Expand Thoroughfares And Road Lanes Surface High Strength Glass Fiber Geogrid

Glass Fiber Geogrid Introduction

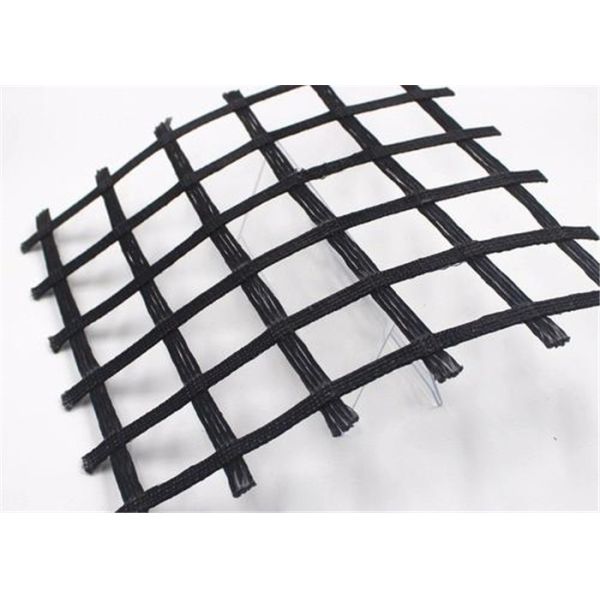

Fiberglass geogrid is a kind of new geosynthetics for the reinforcement of road surface and rodbed.This product is made of fiberglass filament by woving machine imported abroad.After coated,it has featurers of alkali-resistance.This geogrid is mainly used in new road,soft road surface to enlarge the loading capacity and road maintainence to prevent the road crackle.

Glass Fiber Geogrid Specification

specification

performance

EGA

-25-25

EGA

-30-30

EGA

-40-40

EGA

-50-50

EGA

-80-80

EGA

-100-100

EGA

-50-50-Z

Self-adhesive

Tensile Strength

(KN/m)

 warp 25 30 40 50 80 100 50
weft 25 30 40 50 80 100 50
Elongaton% ≤4 ≤4 ≤4 ≤4 ≤4 ≤4 ≤4
Mesh Size (mm) 25.4X25.4 12.7X12.7
Width(m) 1-5.95 1-5.95 1-5.95 1-5.95 1-5.95 1-5.95 1-5.95

Glass Fiber Geogrid Features:

(1)High tensile strength in warp and weft directions;

(2)Low elongation;

(3)Excellent temperature range;

(4)Good anti-age and alkali-resistance

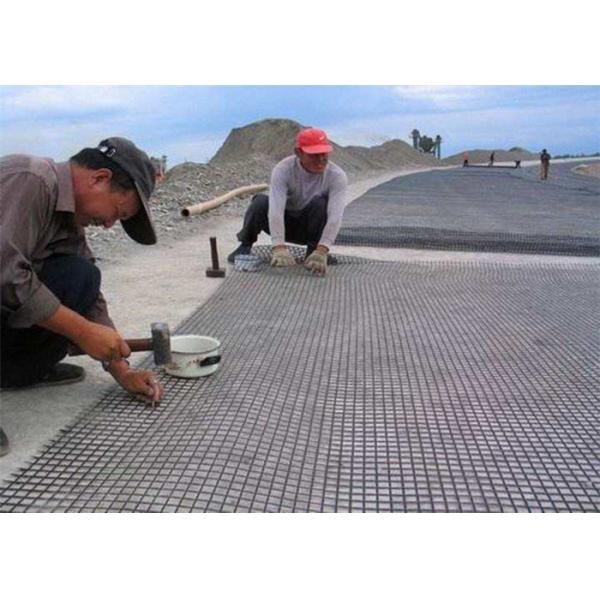

Glass Fiber Geogrid Application:

1. The old asphalt concrete pavement, reinforced asphalt surface enhancement, disease prevention and control.

2 .radical reinforcement of soft soil treatment, water is conducive to the consolidation of soft soil analysis, effectively inhibit the settlement, uniform stress distribution, and enhance the overall strength of the roadbed.

3. It reinforce old asphalt concrete road surface and asphalt layer, and prevents damage
