UV Stabilized Plastic 15KN Geogrid For Gravel Roads
UV Stabilized Plastic 15KN Geogrid For Gravel Roads
UV Stabilized Plastic 15KN Geogrid For Gravel Roads
UV Stabilized Plastic 15KN Geogrid For Gravel Roads
UV Stabilized Plastic 15KN Geogrid For Gravel Roads
UV Stabilized Plastic 15KN Geogrid For Gravel Roads
UV Stabilized Plastic 15KN Geogrid For Gravel Roads
UV Stabilized Plastic 15KN Geogrid For Gravel Roads
Specifications
Brand Name :
Hengquan
Model Number :
TGSG15,TGSG20,TGSG25,TGSG30,TGSG35,TGSG40,TGSG45,TGSG50
Certification :
ISO 9001
Place of Origin :
China
MOQ :
1000m2
Price :
Deliberation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
40000M2 per week
Delivery Time :
5-8 days
Packaging Details :
packing belt
Type :
biaxial plastic geogrid and uniaxial plastic geogrid
Material :
polypropylene or polyethylene
Mesh hole :
32*32mm
Tensile Strength :
TGSG15-15KN
color :
black
width :
2m 0r 3m 0r 4m
length :
50 m or 100 m
Application :
Subgrade Stabilization
Description

Grass Reinforcement Mesh TGSG15-15KN Plastic Geogrid Mesh For Retaining Wall Slope Protection Geogrid

Plastic Geogrid Mesh Introduction

Plastic geogrid is mainly manufactured from polypropylene or high density polyethylene, which are all UV stabilized, chemical and biological resistance. The plastic geogrid is mainly used in the construction of roadways, highways, railways, slopes for ground stabilization and subgrade reinforcement. The plastic geogrid is extruded into sheet and then punched into regular mesh pattern and finally stretched. According to the stretched direction, it can be divided into uniaxial plastic geogrid and biaxial plastic geogrid.

Biaxial Plastic Geogrid Specification

Specification BX15-15 Bx20-20 Bx25-25 Bx30-30 BX35-35 BX40-40 BX45-45 BX50-50
Polymer PP
Carbon Black(%) 2
Tensile Strength,MD (KN/m) 15 20 25 30 35 40 45 50
rensile Strength,CD (KN/m) 15 20 25 30 35 40 45 50
Elongation,MD(%) 13
Elongation,cD(%) 13
Tensile Strength at2% Strain,MD (KN/m) 5 7 9 10.5 12 14 16 17.5
Tensile Strength at 2% Strain, cD (KNm) 5 7 9 10.5 12 14 16 17.5
Tensile Strength at 5% Strain,MD (KN/m) 7 14 17 21 24 28 32 35
Tensile Strength at 5% Strain,cD (KN/m) 7 14 17 21 24 28 32 35
Junction Efficiency(%) 93
Roll Width (m) 3.95 or5.95
Roll Length (m) 5o

Plastic Geogrid Mesh Features

High tensile strength in both longitudinal and transverse directions.

Convenient to use and reduce the construction cost.

Increase the bearing capacity of the subgrade.

Reduce the soil erosion.

UV stabilized.

Resistance to the chemical and biological corrosion.

Plastic Biaxial Geogrid Applications

Plastic biaxial geogrid is the ideal geotechnical material in situations where stresses are applied in two directions, it is the ideal geotechnical product used to reinforce the pavement base and improve the subgrade for any soil stabilization and reinforcement applications such as municipal roads, highways railway, access roads, parking lots industrial shipping yards, etc. provides high strength, high performance, longer life, ensured reliability and quick installation for base reinforcement of paved roads, construction haul roads, foundation reinforcement, permanent unpaved roads, working platforms on weak soils, parking areas, etc

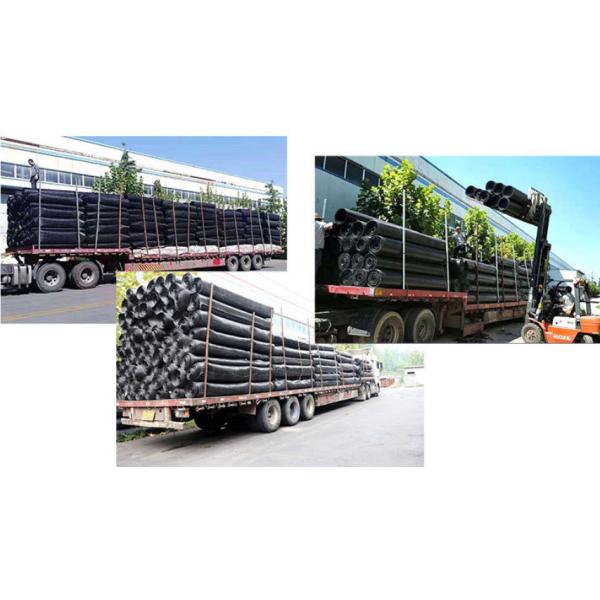

Packing

UV Stabilized Plastic 15KN Geogrid For Gravel RoadsUV Stabilized Plastic 15KN Geogrid For Gravel RoadsUV Stabilized Plastic 15KN Geogrid For Gravel Roads

Product tags

asphalt reinforcement fiberglass geogrid

,

geogrid pavement design

,

plastic soil stabilization geogrid
