Slope Protection Filter Layer 0.9mm Needle Punched Geotextile
Slope Protection Filter Layer 0.9mm Needle Punched Geotextile
Slope Protection Filter Layer 0.9mm Needle Punched Geotextile
Slope Protection Filter Layer 0.9mm Needle Punched Geotextile
Slope Protection Filter Layer 0.9mm Needle Punched Geotextile
Slope Protection Filter Layer 0.9mm Needle Punched Geotextile
Slope Protection Filter Layer 0.9mm Needle Punched Geotextile
Slope Protection Filter Layer 0.9mm Needle Punched Geotextile
Specifications
Place of Origin :
China
Brand Name :
Hengquan
Certification :
ISO 9001
Model Number :
100 - 800 G/㎡
MOQ :
1000m2
Price :
Deliberation
Packaging Details :
packing belt
Delivery Time :
5-8 days
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
40000M2 per week
Material :
Polyester
Thickness :
0.9 - 4.0 mm
Weight :
100 - 400 g
color :
Black , White , Grey, Green
width :
1-5.95 meters
length :
50 or 100 meters
Application :
Slope Protection Filter Layer
Description

Road Construction Slope Protection Filter Layer Long Fibre Needle Punched Geotextile Fabric

Needle Punched Geotextile Fabric Description

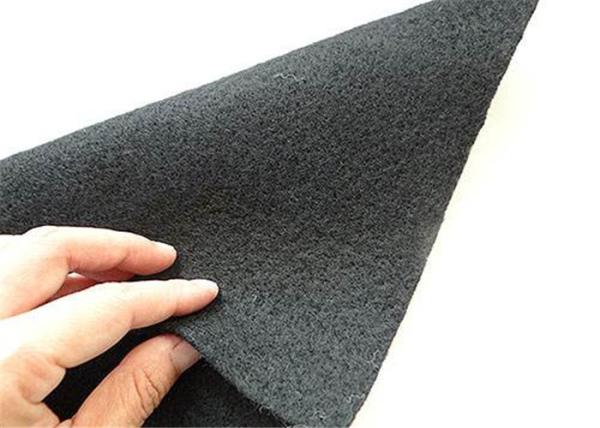

Nonwoven fabrics are made by extruding continuous filaments of polypropylene which are then cut, opened, laid into a web, needle-punched, heat-set and rolled into the finished product. These geotextiles are approved by many local, state and federal agencies including the Federal Highway Administration, U.S. Army Corps of engineers, the environmental Protection Agency and AASHTO.

Needle Punched Geotextile Fabric Specification

Gram weight Thickness(mm) Breaking strength(kn/m) CBR burst strength(KN) Elongation at break(% Tear Strength(KN) Sieve size O99(O35)mm
100 0.9 2.5 0.3 25-100 0.08 0.07-2.0
150 1.3 4.5 0.6 25-100 0.12 0.07-2.0
200 1.7 6.5 0.9 25-100 0.16 0.07-2.0
250 2.1 8.0 1.2 25-100 0.20 0.07-2.0
300 2.4 9.5 1.5 25-100 0.24 0.07-2.0
350 2.7 11.0 1.8 25-100 0.28 0.07-2.0
400 3.0 12.5 2.1 25-100 0.33 0.07-2.0
450 3.3 14.0 2.4 25-100 0.38 0.07-2.0
500 3.6 16.0 2.7 25-100 0.42 0.07-2.0
600 4.1 19.0 3.2 25-100 0.46 0.07-2.0
800 5.0 25.0 4.0 25-100 0.60 0.07-2.0

Non woven Geotextile Fabric Application

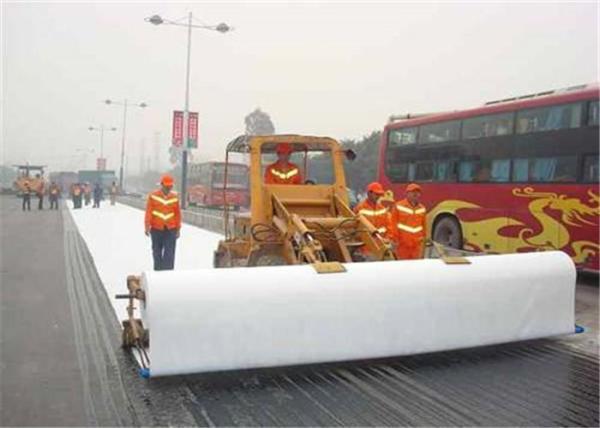

These fabrics are designed to filter soil particles from drainage systems and stabilize roadways to increase performance life. Nonwovens are ideal for a variety of civil engineering applications including:

Subsurface Drainage

Roadway Separation

Railroad Stabilization

Hard Armor Underlayment

Landfill Leachate Collection

Underground Detention/Retention System
