Iron 2 X 1 X 1m Pvc Coated Gabion Wire Mesh For Cages
Iron 2 X 1 X 1m Pvc Coated Gabion Wire Mesh For Cages
Iron 2 X 1 X 1m Pvc Coated Gabion Wire Mesh For Cages
Iron 2 X 1 X 1m Pvc Coated Gabion Wire Mesh For Cages
Iron 2 X 1 X 1m Pvc Coated Gabion Wire Mesh For Cages
Iron 2 X 1 X 1m Pvc Coated Gabion Wire Mesh For Cages
Iron 2 X 1 X 1m Pvc Coated Gabion Wire Mesh For Cages
Iron 2 X 1 X 1m Pvc Coated Gabion Wire Mesh For Cages
Iron 2 X 1 X 1m Pvc Coated Gabion Wire Mesh For Cages
Iron 2 X 1 X 1m Pvc Coated Gabion Wire Mesh For Cages
Iron 2 X 1 X 1m Pvc Coated Gabion Wire Mesh For Cages
Iron 2 X 1 X 1m Pvc Coated Gabion Wire Mesh For Cages
Specifications
Brand Name :
Hengquan
Model Number :
HQ-008
Certification :
CE
Place of Origin :
China
MOQ :
50sets
Price :
3.9-5.0$
Payment Terms :
T/T, L/C, D/A, Western Union, MoneyGram
Supply Ability :
5000 sets per week
Delivery Time :
5-8days
Packaging Details :
plastic film + metal/wooden pallet or export standard, or as your request, etc.
Type :
Woven wire mesh, Woven wire mesh
Hole Shape :
Hexagonal
Feature :
Galvanized+PVC Coated
Gabion Box Size: :
1*1*1m,2*1*1m,3*1*1m4*2*0.3m, 6*2*0.3m,etc
Selvedge wire: :
3.0-4.0 mm
Material :
Galvanized Iron Wire, Galvanized Iron Wire
Application :

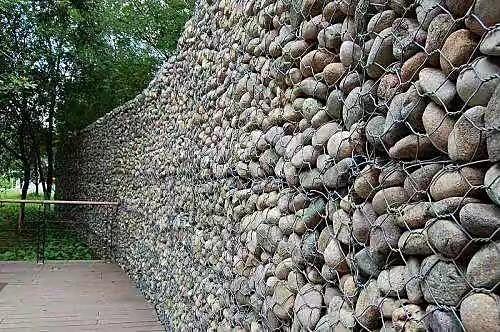

Construction Wire Mesh, Gabion walls, Beach Wall,
Wire Gauge :
2.0-4.0mm
Advantage :
Hot Dipped Galvanized
Mesh size :
60x80mm; 80x100mm; 100x120mm etc
Description

Anping manufacturer 2 x 1 x 1m gabion box Hexagonal gabion basket Iron Wire Mesh For Cages price

Gabion mesh is named by different shapes of gabion box,gabion basket, gabion wall, gabion mattresses, etc.It's made from hexagonal wire mesh.

Material: low carbon steel wire, stainless steel wire
Surface Treatment: hot dipped galvanized, electro galvanized, PVC/PE coated or galfan coated.
Wire Diameter: 1.5mm - 4mm or as required.
Aperture(mm): 60 × 80, 80 ×100, 80 ×120, 100 ×120, 100 ×150, 120 × 150mm
Gabion size : 1x1x0.5m, 1x1x1m, 2x1x1m, 3x1x1m, 0.2x1mx1m, 0.3x1x2m
Tensile Strength: more than 380N per square meter.
Gabion Style: gabion box, gabion mattress

Gabion box is consist of rectangular units, fabricated from a double-twisted hexagonal mesh, filled with stones. In order to reinforce the structure, its edges with a wire having a thicker diameter than the mesh wire. Gabion boxes be divided into cells by diaphragms at every 1 meters.

Material:hot-dip galvanized low carbon steel wire, Zinc-5%Al or10%Al-mixed rare earth alloy coating, also named Galfan. lifetime 3times min than hot-dip galvanized gabion. PVC coated Wire, PVC coated on hot-dip galvanized steel wire and Galfan, many kinds of color

Tensile strength: 350-500Mpa,Elongation ≥12%,according to EN10223-3

zinc coating: mesh wire≥230g/M2,selvedge wire≥245g/M2,lacing wire ≥230g/M2

opening: 6*8cm,8x10cm,10*12cm

mesh wire :2.2mm,2.7mm,3.0mm

Specification (standard)
Gabion Materail: Low-carbon Iron Wire
Gabion Mesh Shape: Hexagonal
Gabion Mesh Size: 60x80,70x90,80x100,90x110,100x120,110x130,120x150mm

Gabion Wire Diameter
a. Body Wire: 2.0-4mm
b. Selvedge Wire: 2.0mm-4.5mm
c. Tie Wire: 2.2mm(or C rings)

Application:

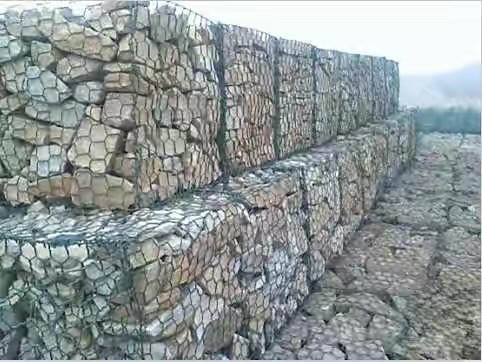

Gabion boxes applications
Control and guide of water or flood
Flood bank or guiding bank
Preventing of rock breaking
Water and soil protection
Bridge protection
Strengthening structure of soil

Gabion Specification :


Gabion material: galvanized wire, Zn-Al(Galfan) coated wire/PVC coated wire

Gabion wire diameter: 2.2mm,2.7mm,3.05mm etc.

Gabion sizes: 1x1x1m,2x1x0.5m,2x1x1m,3x1x1m,3x1x0.5m,4x1x1m,4x1x0.5m,4x2x0.3m,

5x1x0.3m,6x2x0.3m etc.,customized is available.

Gabion mesh size:60*80mm,80*100mm,100*120mm,120*150mm,or customized

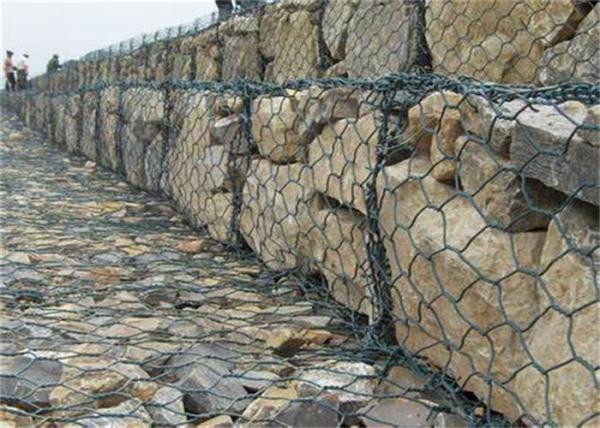

Gabion application: can be widely used in flood controling,retaining wall,river bank protection,slope protection etc.

Packing & Delivery
The common Package is in Bundle
Folding Them them together in to flat pattern
Usually 50 to 80 PCS into one Bundle
The outer package can be bare or used shrink film, as the customer's requirements

GABION MESH
Opening (mm)
Wire Diameter (mm)
Strands
Sizes
60 x 80
2.0-2.8
3
2m x 1m x 1m,
3m x 1m x 1m,
4m x 1m x 1m,
2m x 1m x 0.5m,
4m x 1m x 0.5m,
Or as request
80 x 100
2.0-3.2
3
80 x 120
2.0-3.2
3
100 x 120
2.0-3.4
3
100 x 150
2.0-3.4
3
120 x 150
2.0-4.0
3
Hot dip galvanized gabion box
Size(m)
Mesh size(cm)
Diameter(mm)
selvage wire/mesh wire/tie wire
2x1x1
2x1x0.5
8x10
10x12
3.4/2.7/2.2
3.9/3.0/2.2
3.9/2.7/2.2
3x1x1
3x1x0.5
4x1x1

Mesh size
(PVC wire)Inner/outside
Hot-dip galvanized
Galfan
60*80
2.0mm/3.0mm-2.8mm/3.8mm
2.2mm-3.8mm
2.2mm-3.8mm
80*100
2.2mm/3.2mm-3.0mm/4.0mm
3.2mm-4.0mm
3.2mm-4.0mm
100*120
2.4mm/3.4mm-3.2mm/4.2mm
3.4mm-4.2mm
3.4mm-4.2mm
120*150
2.7mm/3.7mm-3.5mm/4.5mm
3.7mm-4.5mm
3.7mm-4.5mm

" Quality is our culture!"

When you place an order, our company has professional testing personnel. From the start of production to the completion of the order, they will always check the product quality to ensure product quality.
