Malaysia Export Quality Galvanized Wire/PVC Coated Gabion Box

Gabion is easy to build and can be a great way to quickly build a wall or structure in case of a severe weather emergency.

Surface Treatment Power Coated

a. Hot-dipped galvanized , Mass of Zinc Coating , Up to 300g/m2
b. PVC Coated Mattresses and gabion baskets are also available with a 0.5mm nominal thickness P.V.C. coating to enhance the
resistance of the baskets to corrosion of the wire mesh. This provides a overall increase in diameter of 1mm to all wires used in
the manufacturing process.
c. Galfan, 95% zinc, 5% aluminum

Specification (standard)
Gabion Materail: Low-carbon Iron Wire
Gabion Mesh Shape: Hexagonal
Gabion Mesh Size: 60x80,70x90,80x100,90x110,100x120,110x130,120x150mm

Gabion Wire Diameter
a. Body Wire: 2.0-4mm
b. Selvedge Wire: 2.0mm-4.5mm
c. Tie Wire: 2.2mm(or C rings)
Standard Sizes
- 1m x 1m x 1m
- 1m x 1m x 0.5m
- 1m x 1m x 0.3m
- 2m x 1m x 1m
- 2m x 1m x 0.5m
- 2m x 1m x 0.3m
- 3m x 1m x 1m
- 4m x 1m x 1m
* More Sizes Available

Product Description

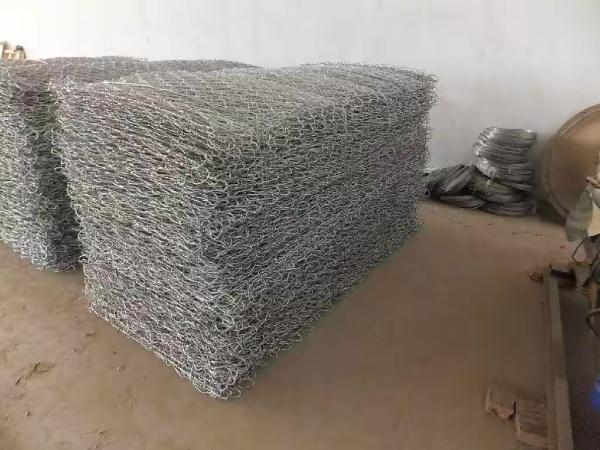

Gabion boxes are made of heavy duty hexagonal wire nettings
Finish can be hot-dipped galvanized, galvanized aluminum alloy or PVC coated Galvanized Wire
Filled with rock or rubble to economically and effectively construct earth retaining walls and erosion control structures.

Gabion Specification :

Gabion material: galvanized wire, Zn-Al(Galfan) coated wire/PVC coated wire

Gabion wire diameter: 2.2mm,2.7mm,3.05mm etc.

Gabion sizes: 1x1x1m,2x1x0.5m,2x1x1m,3x1x1m,3x1x0.5m,4x1x1m,4x1x0.5m,4x2x0.3m,

5x1x0.3m,6x2x0.3m etc.,customized is available.

Gabion mesh size:60*80mm,80*100mm,100*120mm,120*150mm,or customized

Gabion application: can be widely used in flood controling,retaining wall,river bank protection,slope protection etc.
