Specifications
Brand Name :
Hengquan
Model Number :
Cell Height：50-250mm
Certification :
ISO 9001
Place of Origin :
China
MOQ :
2000m2
Price :
2.5usd/Squre meter, Other types need to Deliberation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
40000 Squre meters per week
Delivery Time :
5-8 days
Packaging Details :
packing belt
Color :
Black/Yellow/Green/White
Cell depth :
75-100-150-200mm
Application :
Load Support/Slope stabilization/Retaining Wall
Thickness :
1. 5mm
Weld spacing :
330-356-400-445-500-660-712mm
cell height :
50mm
Material :
HDPE
Height :
50mm~250mm
Description

hdpe geocell ground enhancement cellular system gravel grid driveway gravel stabilizer

Reinforced HDPE Geocell Cellular Confinement System for Slope Protection

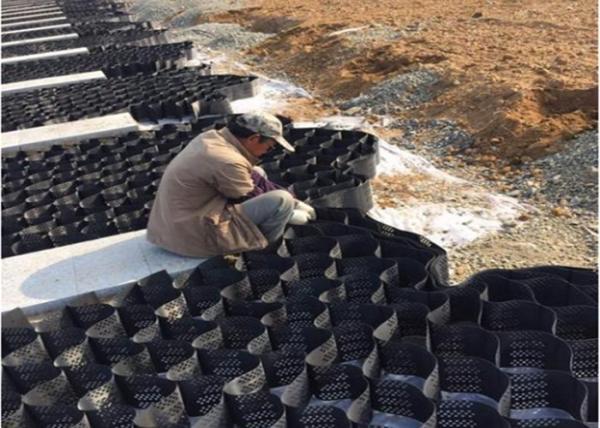

Geocell Grid Panles are well known that an ideal soil material for use in civil engineering applications is one that compacts well and drains water freely. The problem is that the better draining soils are difficult to confine in place. Our Geocell system provides a solution. It is being widely used in construction, such as highway, railway, bridge, dyke, etc.

Ultrasonic welding of cell joints ensures maximum strength.
Easily dismantled and subsequently re-used.
Ease in transportation and on-site handling due to collapsible cells.

The Advantage of Geocell
Provides cost effective, long-term slope and channel protection and stabilization.
Ease in transportation and on-site handling due to collapsible cells.
Rapid and simple installation conforms to most terrain profiles.
Ultrasonic welding of cell joints ensures maximum strength.
Easily dismantled and subsequently re-used.
Withstands high weight bearing loads.
Resistant to biological attack and a wide range of soil borne chemicals.

Material
Use virgin HDPE material to assure consistent, reproducible, and long-lasting performance.
Weld
Strong weld continually tested to project assurance.
Honeycomb
Prevents erosion, and avoids surface runoff.
Load
Prevent horizontal movement, and increase both shear strength and bearing capacity.

Item No.
Hight
Weld Distance
Thickness of the Sheet
Tensile Strength of Welding Points
Tensile Strength of Connection of Cells
Tensile Strength at Yield of Each Sheet
(mm)
(mm)
(mm)
(N/cm)
(N/cm)
(N/mpa)
GS50-400
50
330≤A<1000
≥1.1
≥100
≥120
≥20
GS75-400
75
330≤A<1000
≥1.1
≥100
≥120
≥20
GS100-400
100
330≤A<1000
≥1.1
≥100
≥120
≥20
GS150-400
150
330≤A<1000
≥1.1
≥100
≥120
≥20
GS200-400
200
330≤A<1000
≥1.1
≥100
≥120
≥20
Remarks: Width of the product can be made according to the customer’s demand, and other special standards will carry out by agreement or contract.
