50 X 50 X 2.5mm Spot Steel Weld Mesh Panels Mild Rod Galvanised
50 X 50 X 2.5mm Spot Steel Weld Mesh Panels Mild Rod Galvanised
50 X 50 X 2.5mm Spot Steel Weld Mesh Panels Mild Rod Galvanised
50 X 50 X 2.5mm Spot Steel Weld Mesh Panels Mild Rod Galvanised
50 X 50 X 2.5mm Spot Steel Weld Mesh Panels Mild Rod Galvanised
50 X 50 X 2.5mm Spot Steel Weld Mesh Panels Mild Rod Galvanised
50 X 50 X 2.5mm Spot Steel Weld Mesh Panels Mild Rod Galvanised
50 X 50 X 2.5mm Spot Steel Weld Mesh Panels Mild Rod Galvanised
50 X 50 X 2.5mm Spot Steel Weld Mesh Panels Mild Rod Galvanised
50 X 50 X 2.5mm Spot Steel Weld Mesh Panels Mild Rod Galvanised
50 X 50 X 2.5mm Spot Steel Weld Mesh Panels Mild Rod Galvanised
50 X 50 X 2.5mm Spot Steel Weld Mesh Panels Mild Rod Galvanised
50 X 50 X 2.5mm Spot Steel Weld Mesh Panels Mild Rod Galvanised
50 X 50 X 2.5mm Spot Steel Weld Mesh Panels Mild Rod Galvanised
50 X 50 X 2.5mm Spot Steel Weld Mesh Panels Mild Rod Galvanised
50 X 50 X 2.5mm Spot Steel Weld Mesh Panels Mild Rod Galvanised
Specifications
Brand Name :
Hengquan
Model Number :
HQ
Certification :
ISO9001
Place of Origin :
China
MOQ :
100 pcs
Price :
1.5 - 30 $
Payment Terms :
L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability :
100 Ton/Tons per Week
Delivery Time :
5 - 8 days
Packaging Details :
Bulk Loading Pallet
Processing Service :
Bending, Welding, Decoiling, Cutting, Punching
Metal Type :
Welded Mesh
Hole Shape :
square,long hole
welded wire mesh panel width :
0.5m-2.2m
Galvanized type :
galvanized after welding,galvanized before welding
Standard roll length :
30m and as your customized
Service Life :
5-10 years
Wire Gauge :
0.5mm-14mm, 0.5mm-14mm
Application :
Gabions, Construction Wire Mesh
Surface treatment :
Hot Dipped Galvanized,powder coated
Aperture :
1/2"-6''
Description

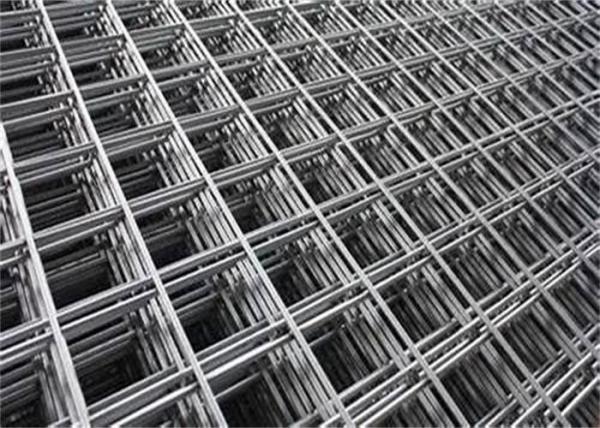

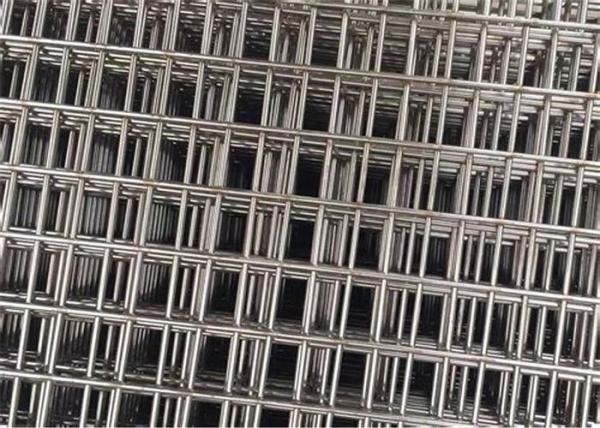

50 x 50 x 2.5mm Spot mild steel rod galvanised welded mesh screen panels

Product Description
Weld wire mesh
Available in a range of different sizes, gauges and apertures, our galvanised welded wire mesh panels can be used for a wide range of domestic projects and professional applications.
We provide a welded mesh "cut to size" service.

Types of welded mesh
Finishes available include:
* Premium: galvanised after welding (3 times the amount of protective coating!)
* Standard: galvanised before welding
* More information on these finishes is available in the Technical Information section.

Application of welded mesh
Our welded wire mesh panels are galvanised to give them a protective coating, shielding them from corrosion and rust. These panels can be used for a wide range of applications, including:Security cages, Dog fencing, Animal enclosures, Aviaries, Bird cages, Pet hutches, Cat fences, Pond covers or protection, Garden fencing

Packaging:

Standard length: 1-8m;

Standard width: 0.5-3m
Special sizes available at request
Packing: in pallet. Custom packing available at request.

Shipping:

We ship the welded wire mesh, welded wire mesh panel, galvanized welded wire mesh panel, welded wire mesh fence products about 80 containers each month.

Specification List of Welded Wire Mesh Panel
Opening Wire Diameter
In inch In metric unit(mm)
1" x 1" 25.4mmX25.4 16,17,18,19,20,21
1-1/2" x 1-1/2" 38mm x 38mm 14,15,16,17,18,19
1" x 2" 25.4mm x 50.8mm 14,15,16
2" x 2" 50.8mm x 50.8mm 12,13,14,15,16
2" x 3" 50mmx70mm 2.0mm,2.5mm,1.65mm
3" x 3" 75mmx75mm 2.67mm,2.41mm,2.11mm,1.83mm,1.65mm
2" x 4" 50mmx100mm 2.11mm,2.5mm
4" x 4" 100mmx100mm 2.0mm,2.5mm

Technical Note:

1,Standard length: 1-8m;

width: 0.5-3m
2,Special sizes available at request
3,Packing: in pallet. Custom packing available at request.

Specification of welded wire mesh
Aperture (inch)
Aperture(mm)
Wire diameter(BWG)
1/2"X1/2"
12.7mm x12.7mm
16, 17, 18, 19, 20, 21, 22, 23
3/4"X3/4"
19.1mm x 19.1mm
16, 17, 18, 19, 20, 21
1"X1/2"
25.4mm x12.7mm
16, 17, 18, 19, 20, 21
1"X1"
25.4mm x 25.4mm
14, 15, 16
2"X2"
50.8mm x 50.8mm
12, 13, 14, 15, 16

Surface treatment:

1. Electrical zinc coating mesh
First welding,cutting the edge of the panel which can make sure the edges is smooth and not hurt your hands,clectrical zinc coating,packing

2. Pre Galvanized mesh
Use the hot dip gal. wire direct do the welding,cutting the edge of the panel which can make sure the edge is smooth and not hurt your hands,packing

3. Hot dip galvanized mesh
First welding,cutting the edge of the panel which can make sure the edges is smooth and not hurt your hands,clectrical zinc coating,packing

50 X 50 X 2.5mm Spot Steel Weld Mesh Panels Mild Rod Galvanised50 X 50 X 2.5mm Spot Steel Weld Mesh Panels Mild Rod Galvanised50 X 50 X 2.5mm Spot Steel Weld Mesh Panels Mild Rod Galvanised50 X 50 X 2.5mm Spot Steel Weld Mesh Panels Mild Rod Galvanised50 X 50 X 2.5mm Spot Steel Weld Mesh Panels Mild Rod Galvanised50 X 50 X 2.5mm Spot Steel Weld Mesh Panels Mild Rod Galvanised50 X 50 X 2.5mm Spot Steel Weld Mesh Panels Mild Rod Galvanised50 X 50 X 2.5mm Spot Steel Weld Mesh Panels Mild Rod Galvanised

Packing & Delivery

each welded wire mesh roll in waterproof package, outside plastic film, or in pallet or as customer requirements.

Q: Are you trader or manufacturer?

A: We are a professional wire mesh manufacturer.

Q: Can I get the free sample?

A: Yes, we can provide you free sample for testing.

Q: What is your payment term?

A: TT, LC, DP, Western Union, Paypal, etc.

Note:you can apply for OA payment.

Q: Can I customize the products?

A: Yes, as long as provide specification or drawing, we can produce products what you want.

Q: How long is the delivery time?

A: More than 500 kinds of stock products, the fastest delivery is 24 hours.Customized products, the fastest delivery is 15-20 days.


For more questions, please contact with our sales.
