Color Black Textured Geocell Hdpe Height 50mm-250mm Thickness 1.0mm
Color Black Textured Geocell Hdpe Height 50mm-250mm Thickness 1.0mm
Color Black Textured Geocell Hdpe Height 50mm-250mm Thickness 1.0mm
Color Black Textured Geocell Hdpe Height 50mm-250mm Thickness 1.0mm
Color Black Textured Geocell Hdpe Height 50mm-250mm Thickness 1.0mm
Color Black Textured Geocell Hdpe Height 50mm-250mm Thickness 1.0mm
Color Black Textured Geocell Hdpe Height 50mm-250mm Thickness 1.0mm
Color Black Textured Geocell Hdpe Height 50mm-250mm Thickness 1.0mm
Specifications
Brand Name :
Hengquan
Model Number :
Cell Height：50-250mm
Certification :
ISO 9001
Place of Origin :
China
MOQ :
1000m2
Price :
1usd/Squre meter, Other types need to Deliberation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
40000 Squre meters per week
Delivery Time :
5-8 days
Packaging Details :
packing belt
Name :
Geocell Confinement System
Transport Package :
Winding Tape
Weld Spacing :
400mm
Corrosion Resistance :
Excellent Corrosion Resistance
Thickness :
1.0mm
Surface :
Textured
cell height :
50mm
Keyword :
Highway railway bed retaining wall
Package :
Winding Tape
Feature :
Corrosion Resistant, Oxidation Resistance, Chemical Stability, Wear-resistant
Description

HDPE Smooth/Textured Perforated Geocell with CE Certificate Gravel Grids Paver Manufacturer Directly Supply

Product Introduction:

High quality HDPE geocell is a kind of using high density polyethylene (HDPE) and ultrasonic technology joint welded together 3d mesh structure, ensure the consistency of slope erosion resistance, more durable performance, flexible packaging and transportation has a wide range of cell size and depth, to meet your projects and civil engineering application requirements.

Product features:

1) Light material, resistant to wear, stable in chemical properties, anti-aging, resistant to acids and alkalis, applicable to different soil and desert and other geological conditions.
2)High limit on lateral direction, anti-skidding, anti-deformation, effectively enhance the supporting ability and scattered load function of roadbed.
3)High carrying capacity and good dynamic performance and high erosion ability
4)The geometry size can be changed to meet different needs of the project, such as height and welding distance.
5)Retractable and small loading volume, convenient joint, speed construction.
6)Local material can be used during construction, reduce the construction cost, easy to be transported after folding together.

Laying method

Construction precautions.
① The maximum strength direction of the grid shall be consistent with the direction bearing the maximum stress.
② Direct driving of heavy vehicles on the laid geogrid shall be avoided.
③ The cutting and stitching amount of geogrid shall be minimized to avoid waste.
④ During construction in cold seasons, the geogrid becomes hard and easy to cut hands and rub knees.

Application:

It is mainly used in foundation reinforcement, soft foundation treatment, steep slope protection, landslide prevention and hybrid
retaining wall subject to load and weight; especially suitable for weathered mountain forests, deserts and swamps.

1.Load support: Solve unacceptable road, parking and yard surface problems.2.Slope protection: Create a stable environment for long-term sustainability of embankment material.
3.Channel protection: Ensure stability and protection of channels exposed to all types of erosive conditions.

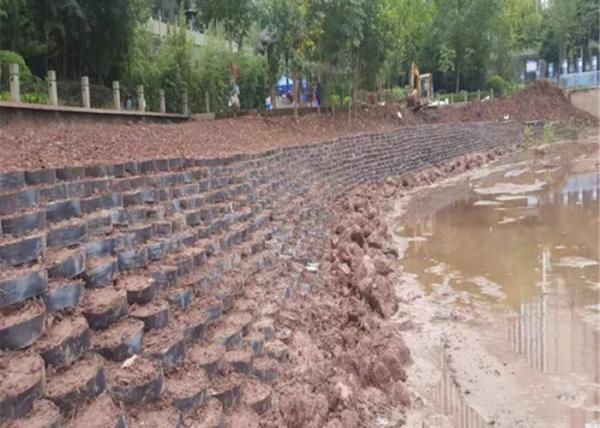

4.Vegetated retaining walls: including steepened slopes, retaining walls, gravity walls and so on.
5.Shorelines: Provide unique solutions to prevent erosion problems caused by water contact, surface flow and wave action.

Specifications
Product Type
Height
(mm)
Welding Distance
(mm)
Thickness
(mm)
Tensile Strength of Welding
Points (N/cm)
Tensile Strength of Connection
of Cells(N/cm)
Tensile
Strength
at Yield of
Each Sheet
(Mpa)
Smooth and
Not Perforated
50≤H≤250
330≤A≤1000
1.0~1.2
≥100
≥120
≥20
Smooth and
Perforated
50≤H≤250
330≤A≤1000
1.0~1.2
≥100
≥120
≥20
Textured and
Not Perforated
50≤H≤250
330≤A≤1000
1.5~1.7
≥100
≥120
≥20
Textured and
Perforated
50≤H≤250
330≤A≤1000
1.5~1.7
≥100
≥120
≥2
HDPE geocell type
Height
(mm)
Welding Distance(mm)
(mm)
Load quantity per 40'GP (Sqm)
( m2)
Smooth Perforated and Not Perforated
100
330
about 16500
Smooth Perforated and Not Perforated
150
330
about 11100
Smooth Perforated and Not Perforated
100
400
about 20400
Smooth Perforated and Not Perforated
150
400
about 13600

Color Black Textured Geocell Hdpe Height 50mm-250mm Thickness 1.0mm
