Specifications
Brand Name :
Hengquan
Model Number :
Cell Height：50-250mm
Certification :
ISO 9001
Place of Origin :
China
MOQ :
1000m2
Price :
1usd/Squre meter, Other types need to Deliberation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
40000 Squre meters per week
Delivery Time :
5-8 days
Packaging Details :
packing belt
Name :
Geocell Confinement System
Transport Package :
Winding Tape
Weld Spacing :
400mm
Corrosion Resistance :
Excellent Corrosion Resistance
Thickness :
1.0mm
Surface :
Textured
cell height :
50mm
Keyword :
Highway railway bed retaining wall
Package :
Winding Tape
Feature :
Corrosion Resistant, Oxidation Resistance, Chemical Stability, Wear-resistant
Description

HDPE Smooth/Textured Perforated Geocell with CE Certificate Gravel Grids Paver Manufacturer Directly Supply

Product Introduction:

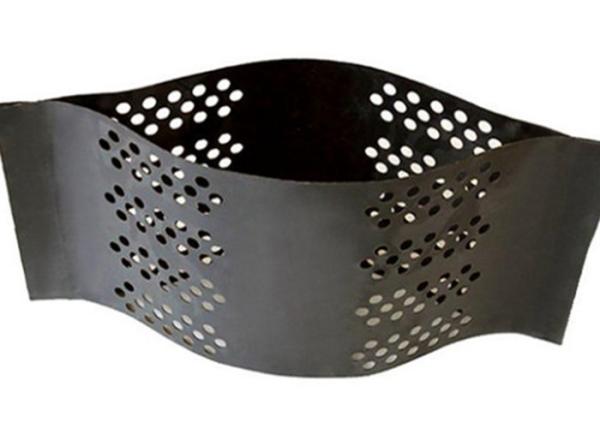

Geocell is a new type of high strength geosynthetic material which is popular at home and abroad. It is a three-dimensional meshcell structure formed by high strength welding of reinforced HDPE sheet material.Due to engineering needs, some need to be drilled in the diaphragm.During construction, it can be stretched into a network and filled with loose materials such as soil, gravel,concrete, etc., to form a structure with strong lateral restrictions and large stiffness.

Product features:
1.It’s extractile,flexible to fold and convenient for transportation.
2.It can be filled with soil, gravel,earth,macadam and so on when being stretched into network.
3.It has light material, wear resistance, acid and alkali resistance, anti aging.
4.It is anti-skid and anti-deformation and also has a higher lateral limit, which can reduce the thickness of roadbed.

Laying method

Construction precautions.
① The maximum strength direction of the grid shall be consistent with the direction bearing the maximum stress.
② Direct driving of heavy vehicles on the laid geogrid shall be avoided.
③ The cutting and stitching amount of geogrid shall be minimized to avoid waste.
④ During construction in cold seasons, the geogrid becomes hard and easy to cut hands and rub knees.

Application:

It is mainly used for
1.foundation reinforcement(gruound stabilisation:)
2.soft foundation treatment,
3.steep slope protection,
4.landslide prevention,
5.load-bearing mixed retaining wall.
6.It is especially suitable for weathering forests, sand streams and marshes.

Specifications
Product Type
Height
(mm)
Welding Distance
(mm)
Thickness
(mm)
Tensile Strength of Welding
Points (N/cm)
Tensile Strength of Connection
of Cells(N/cm)
Tensile
Strength
at Yield of
Each Sheet
(Mpa)
Smooth and
Not Perforated
50≤H≤250
330≤A≤1000
1.0~1.2
≥100
≥120
≥20
Smooth and
Perforated
50≤H≤250
330≤A≤1000
1.0~1.2
≥100
≥120
≥20
Textured and
Not Perforated
50≤H≤250
330≤A≤1000
1.5~1.7
≥100
≥120
≥20
Textured and
Perforated
50≤H≤250
330≤A≤1000
1.5~1.7
≥100
≥120
≥2
HDPE geocell type
Height
(mm)
Welding Distance(mm)
(mm)
Load quantity per 40'GP (Sqm)
( m2)
Smooth Perforated and Not Perforated
100
330
about 16500
Smooth Perforated and Not Perforated
150
330
about 11100
Smooth Perforated and Not Perforated
100
400
about 20400
Smooth Perforated and Not Perforated
150
400
about 13600

Thickness 1.0mm Hdpe Geocell Confinement System Anti Corrosion
