Hexagonal 2x1x1m Gabion Wire Baskets Diameter 2.0-4.0mm Easily Assembled Box
Hexagonal 2x1x1m Gabion Wire Baskets Diameter 2.0-4.0mm Easily Assembled Box
Hexagonal 2x1x1m Gabion Wire Baskets Diameter 2.0-4.0mm Easily Assembled Box
Hexagonal 2x1x1m Gabion Wire Baskets Diameter 2.0-4.0mm Easily Assembled Box
Specifications
Brand Name :
Hengquan
Model Number :
HQ-008
Certification :
CE
Place of Origin :
China
MOQ :
50sets
Price :
3.9-5.0$
Payment Terms :
T/T, L/C, D/A, Western Union, MoneyGram
Supply Ability :
5000 sets per week
Delivery Time :
5-8days
Packaging Details :
plastic film + metal/wooden pallet or export standard, or as your request, etc.
Type :
Woven wire mesh, Woven wire mesh
Hole Shape :
Hexagonal
Feature :
Anti-corrosion, Easily Assembled
Selvedge wire: :
3.0-4.0 mm
Material :
Low-Carbon Iron Wire
Wire Gauge :
2.0-4.0mm
Advantage :
Hot Dipped Galvanized
Application :
Gabions store stones
Description

hot sales 2X1X1m 2.0-4.0mm Gabion Boxes Gabion Basket For Stone

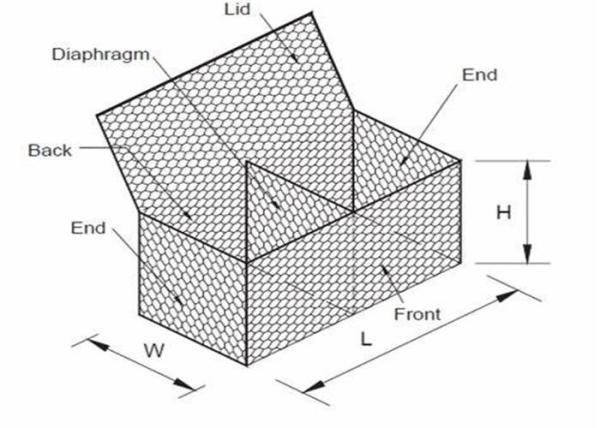

Gabion boxes are made of heavy duty hexagonal wire nettingsFinish can be hot-dipped galvanized, galvanized aluminum alloy or PVC coated Galvanized WireFilled with rock or rubble to economically and effectively construct earth retaining walls and erosion control structures.

Standard Sizes
- 1m x 1m x 1m
- 1m x 1m x 0.5m
- 1m x 1m x 0.3m
- 2m x 1m x 1m
- 2m x 1m x 0.5m
- 2m x 1m x 0.3m
- 3m x 1m x 1m
- 4m x 1m x 1m
* More Sizes Available

Quality Policy:
First-class quality goods backed with technology innovation.
Quality Objectives:
We aim to provide a high level of products quality and reliability for our customers and to become a worldwide company specializing in the development, manufacturing and exporting of engineering and industrial hardware products.
Quality Control:
1.Standard inspection of incoming materials
2.In-process Control: Emphasizing site inspection, independent inspections and full inspections.
3.Intensive finished products inspections.

Gabion Wire Diameter
a. Body Wire: 2.0-4mm
b. Selvedge Wire: 2.0mm-4.5mm
c. Tie Wire: 2.2mm(or C rings)

Gabion refers to PVC coating on zinc coating wire fabric containers that comes in variable sizes with rocks filling to form a permanent structure. And the Green Gabion Mattress, also known as Gabion Mattress System by Fibromat makes a great Earth Retention System caters for slopes erosion control, toe and river bank protection, maximizing permeability on the structure while providing reinforcement and grass establishment.

Gabion Mattresses serves as a retaining wall, providing various prevention and protection works such as landslide prevention, erosion and scour protection as well as various type of hydraulic and coastal protection for river, sea and channel protection. This Gabion Mattress System is made up of a specially designed composite in order to maximize its performance through three phases of vegetative process from unvegetated to vegetation establishment up to vegetation maturation.

Packing & Delivery
The common Package is in Bundle
Folding Them them together in to flat pattern
Usually 50 to 80 PCS into one Bundle
The outer package can be bare or used shrink film, as the customer's requirements

GABION MESH
Opening (mm)
Wire Diameter (mm)
Strands
Sizes
60 x 80
2.0-2.8
3
2m x 1m x 1m,
3m x 1m x 1m,
4m x 1m x 1m,
2m x 1m x 0.5m,
4m x 1m x 0.5m,
Or as request
80 x 100
2.0-3.2
3
80 x 120
2.0-3.2
3
100 x 120
2.0-3.4
3
100 x 150
2.0-3.4
3
120 x 150
2.0-4.0
3
Hot dip galvanized gabion box
Size(m)
Mesh size(cm)
Diameter(mm)
selvage wire/mesh wire/tie wire
2x1x1
2x1x0.5
8x10
10x12
3.4/2.7/2.2
3.9/3.0/2.2
3.9/2.7/2.2
3x1x1
3x1x0.5
4x1x1

Mesh size
(PVC wire)Inner/outside
Hot-dip galvanized
Galfan
60*80
2.0mm/3.0mm-2.8mm/3.8mm
2.2mm-3.8mm
2.2mm-3.8mm
80*100
2.2mm/3.2mm-3.0mm/4.0mm
3.2mm-4.0mm
3.2mm-4.0mm
100*120
2.4mm/3.4mm-3.2mm/4.2mm
3.4mm-4.2mm
3.4mm-4.2mm
120*150
2.7mm/3.7mm-3.5mm/4.5mm
3.7mm-4.5mm
3.7mm-4.5mm

" Quality is our culture!"

When you place an order, our company has professional testing personnel. From the start of production to the completion of the order, they will always check the product quality to ensure product quality.

=Hexagonal 2x1x1m Gabion Wire Baskets Diameter 2.0-4.0mm Easily Assembled BoxHexagonal 2x1x1m Gabion Wire Baskets Diameter 2.0-4.0mm Easily Assembled BoxHexagonal 2x1x1m Gabion Wire Baskets Diameter 2.0-4.0mm Easily Assembled BoxHexagonal 2x1x1m Gabion Wire Baskets Diameter 2.0-4.0mm Easily Assembled BoxHexagonal 2x1x1m Gabion Wire Baskets Diameter 2.0-4.0mm Easily Assembled BoxHexagonal 2x1x1m Gabion Wire Baskets Diameter 2.0-4.0mm Easily Assembled BoxHexagonal 2x1x1m Gabion Wire Baskets Diameter 2.0-4.0mm Easily Assembled BoxHexagonal 2x1x1m Gabion Wire Baskets Diameter 2.0-4.0mm Easily Assembled Box
