Specifications
Brand Name :
Hengquan
Model Number :
100 - 800 G/㎡
Certification :
ISO 9001
Place of Origin :
China
MOQ :
1000m2
Price :
Deliberation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
40000M2 per week
Delivery Time :
5-8 days
Packaging Details :
packing belt
color :
Black , White , Grey, Green
width :
1-5.95 meters
length :
50 or 100 meters
Material :
Polyester
Weight :
100 - 800 g
Thickness :
0.9 - 4.0 mm
Geotextile type :
Non-Woven Geotextiles
Description

Road Construction Railway Slope Protection Reinforce Soil Non Woven Geotextile Fabric

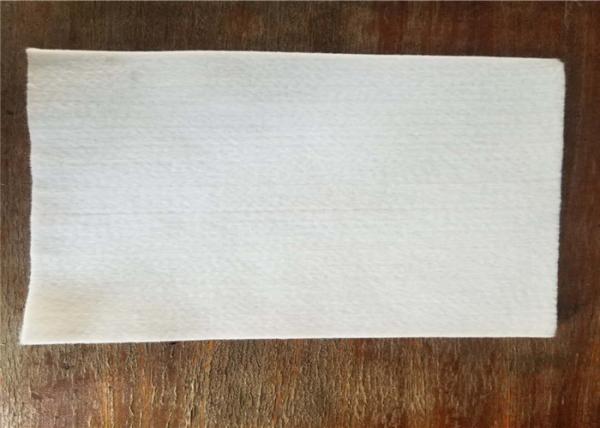

Non woven Geotextile Fabric Description

Made from PET(polyester) or PP(polypropylene) by nonwoven needle punched manufacturing, it has isolation, filtration, drainage,
reinforcement, protection and maintenance etc. fuction

Specification:
(1). 80g/m2~1000g/m2
(2). 1m~8m in roll width, the length as client's request.
(3). Color: white , black , green or at your request

Non woven Geotextile Fabric Features

1.High strength. Sufficient strength and elongation can be maintained in dry and wet conditions because of the application of plastic fiber.

2.Long-term corrosin resistance in soil and water different PH.

3.Good water permeability due to gaps between the fibers.

Non woven Geotextile Fabric Specification

Gram weight Thickness(mm) Breaking strength(kn/m) CBR burst strength(KN) Elongation at break(% Tear Strength(KN) Sieve size O99(O35)mm
100 0.9 2.5 0.3 25-100 0.08 0.07-2.0
150 1.3 4.5 0.6 25-100 0.12 0.07-2.0
200 1.7 6.5 0.9 25-100 0.16 0.07-2.0
250 2.1 8.0 1.2 25-100 0.20 0.07-2.0
300 2.4 9.5 1.5 25-100 0.24 0.07-2.0
350 2.7 11.0 1.8 25-100 0.28 0.07-2.0
400 3.0 12.5 2.1 25-100 0.33 0.07-2.0
450 3.3 14.0 2.4 25-100 0.38 0.07-2.0
500 3.6 16.0 2.7 25-100 0.42 0.07-2.0
600 4.1 19.0 3.2 25-100 0.46 0.07-2.0
800 5.0 25.0 4.0 25-100 0.60 0.07-2.0

Non woven Geotextile Fabric Application

1.Water conservancy project and hydropower projects.
2.Road paving, railway.
3.Airport and port.
4.River band protection and tunnel.
5. Environmental protection, etc.

Certificate Iso9001 Non Woven Geotextile Fabric Width 1m-6m Gram Weight 100g-800g/SqmCertificate Iso9001 Non Woven Geotextile Fabric Width 1m-6m Gram Weight 100g-800g/Sqm
