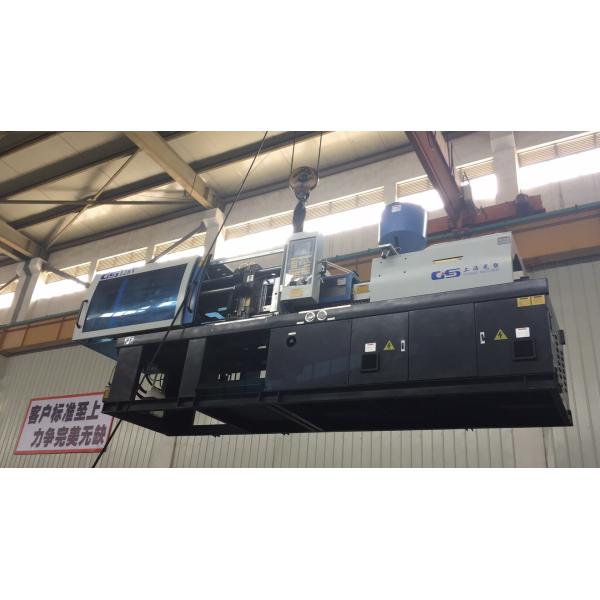

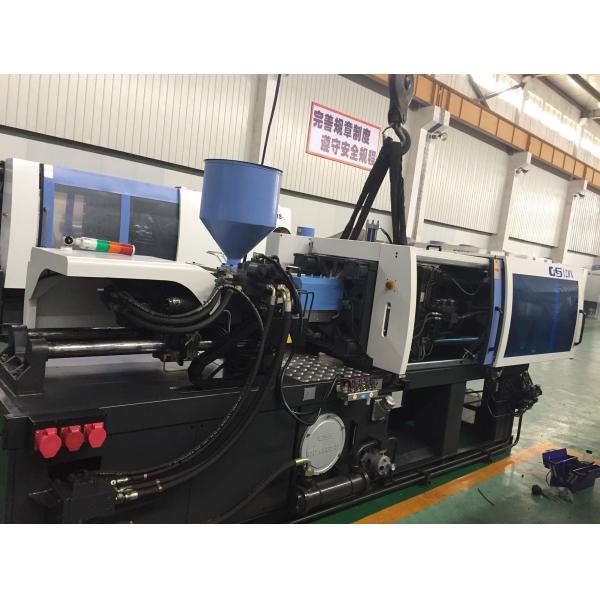

High Performance Large Injection Molding Machine 3880KN Clamping Force
High Performance Large Injection Molding Machine 3880KN Clamping Force
Specifications
Brand Name :
GS
Model Number :
GS388V
Place of Origin :
Shanghai, China (Mainland)
Certification :
ISO9001
Price :
Negotiable
MOQ :
1 Set/Sets
Type :
Preform Injection
Injection Weight :
1608g
Injection Rate :
376.3g/s
Clamping Force :
3880KN
Opening Stroke :
700mm
Power(W) :
24.9kW
After-sales Service Provided :
Overseas third-party support available
capacity :
save much more energy
Description

Injection Molding Machine Manufacturer

Specification:

GS388V
A B C D
INJECTION UNIT Screw Diameter mm 65 70 75 80
Screw L/D Ratio L/D 21.5 20 18.7 17.5
Shot Size(Theoretical) cm3 1068 1239 1423 1619
Injection Weight g 972 1127 1295 1473
Injection Rate g/s 292 339 389 443
Plasticizing Capacity g/s 38.2 44.9 51.4 58.7
Injection Pressure Mpa 213 184 160 141
Screw Speed rpm 0-185
CLAMPING UNIT Clamp Tonnage KN 3800
Toggle Stroke mm 700
Space Between Tie Bars mm 730*730
Max.Mould Height mm 730
Min.Mould Height mm 280
Ejector Stroke mm 180
Ejector Tonnage KN 110
Ejector Number piece 13
OTHERS Max.Pump Pressure Mpa 17.5
Pump motor Power KW 37
Heater Power KW 24.85
Machine Dimension(L*W*H) m 7.36*1.96*2.15
Machine Weight t 15
Hopper Capacity Kg 50
Oil Tank Capacity L 750

​Machine Feature:

1 Enhanced clamping mechanism to meet requirements for efficient production.

2 Excellent clamping features with optimized linkage mechanism to have faster and smooth operation.

3 Professional plasticizing unit is applicable for production of various raw materials, and to improve plasticize performance significantly.

4 Excellent injection performance with twin-cylinder injection mode, have more reliable and stable performance.

5 Professional platen optimization, the platen after finite element analysis and optimization has high rigidity and strength.

6 Centralized lubrication system with reliable protective configuration, quantitative distribution and centered lubrication, provide more professional lubrication protection and extend mechanical life.

7 New frame type structure, simple and clean appearance, with more reasonable stress on machine body and high rigidity.

Machine FAQ

1. The machine is in running condition, and can make products?

Sure, machine must be in running condition, and take machines back, can make goods directlry.

2. Is there any warranty?

Of course, within three months, machine is with problem. offer free components.

3. Is there any oversea service?

If keep our engineers safety abroad, engineer will go oversea to help clients deal with problems.

4. Don't know how to set the production parameter of the controller?

Will take video to show how to do it.

5. How to confirm the machine auxilaries?

We'lll advise every auxilary machine capacity based on machine capacity and the environment of clients' country

6. Other detail problem with machine and production.

Let's discuss further.
