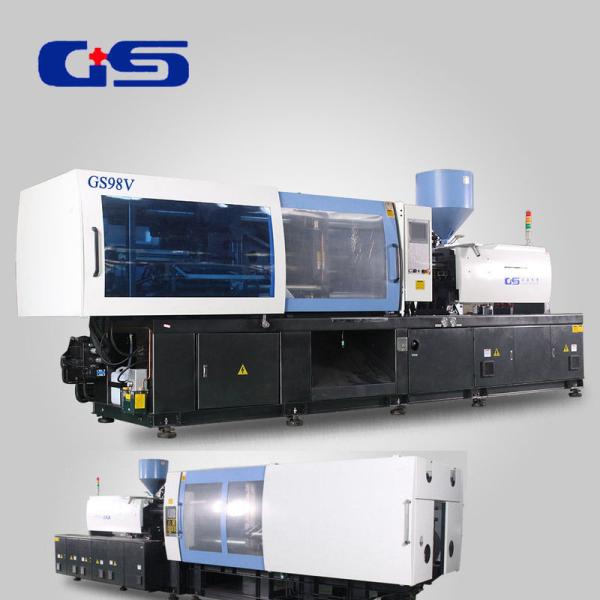

100 Ton Variable Pump Injection Molding Machine Used In Automotive Sectors
100 Ton Variable Pump Injection Molding Machine Used In Automotive Sectors
Specifications
Brand Name :
GS
Model Number :
GS98V
Place of Origin :
Shanghai, China (Mainland)
Certification :
ISO9001
Price :
Negotiable
MOQ :
1 Set/Sets
Type :
Preform Injection
Style :
Horizontal
Automatic :
Yes
Injection Weight :
160.2g
Clamping Force :
980kN
Opening Stroke :
320mm
After-sales Service Provided :
Engineers available to service machinery overseas
design style :
sleek.strong.reflecting the high-speed injection streamlined
Description

100 ton Plastic Injection Molding Machinery

GS98V

A

B

C


INJECTIONUNIT

Screw Diameter

mm

32

36

40

Screw L/D Ratio

L/D

22.5

20

18

Shot size(Theoretical)

cm3

121

153

188

PS) Injection Weight

g

110

139

171

PS Injection Rate

g/s

66

84

104

PS Plasticizing capacity

g/s

9.9

11.3

13.9

Injection Pressure

Mpa

237

188

152

Screw Speed

Rpm

0-205


CLAMPINGUNIT

Clamp Tonnage

KN

900

Toggle stroke

mm

320

Space Between Tie Bars

mm

360*360

Max.Mold Height

mm

380

Min.Mold height

mm

150

Ejector stroke

mm

100

Ejector tonnage

KN

33

Ejector Number

piece

5


OTHERS

Max.Pump Pressure

Mpa

17.5

pump motor power

KW

7.5

Heater Power

KW

6.2

Machine Dimension(L*W*H)

m

4.32*1.2*1.86

Machine Weight

t

3.46

PS Hopper Capacity

Kg

25

Oil Tank Capacity

L

240

Clamoing Unit System:

- High precision auto-clamping function according to the clamping force settled
- FEA designed double-toogle five-joint clamping machinery
- High rigidity planten with enlarged space between tie bar

- Movale platen supported by the adjustable slide system which improves platen parallelism and life time of tie bar and mould
- Optimized lubrication system ensuring precision clamping and extending the life time of the clamping

Injection System

- Double guide bracket structure,Multipoint fixed ensure injection smoothly and accurately
- High speed and high pressure adopt special injection design,improving injection speed

- Injection cylinder,premold oil motor and plastic screw are in the same centerline,to enhance the injection pressure and injection speed,to achieve high precision,fast precision injection molding
- Specific screw and barrel designs are available for process different material require ments

Hydraulic System

-The double proportional compound value control system pressure and flow,high sensitivity and stability.
- Adopt the imported pump,low noise,long lifetime,stable performance
- The optional world-class servo hydraulic system,lower noise,energy-saving
- The precise feedback control of servo system to the pressure and flow,with higher sensitivity and more accurate repeatability precision
- Low pressure mould protect system,which is more suitable for the precision mould

100 Ton Variable Pump Injection Molding Machine Used In Automotive Sectors100 Ton Variable Pump Injection Molding Machine Used In Automotive Sectors
