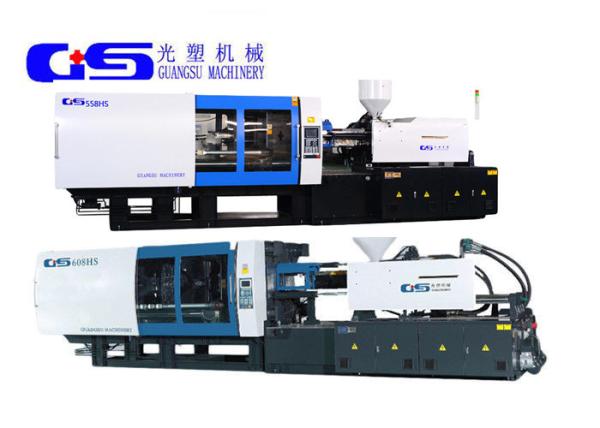

Energy Saving Variable Pump Injection Molding Machine 1300 Ton 85.55kW Power
Energy Saving Variable Pump Injection Molding Machine 1300 Ton 85.55kW Power
Specifications
Brand Name :
GS
Model Number :
GS1308V
Place of Origin :
Shanghai, China (Mainland)
Certification :
ISO9001
Price :
Negotiable
MOQ :
1 Set/Sets
Injection Weight :
9246g
Injection Rate :
1130g/s
Clamping Force :
13080kN
Opening Stroke :
1440mm
Power(W) :
85.55kW
After-sales Service Provided :
Overseas third-party support available
color :
red
capacity :
save much more energy
Description

Injection Molding Machine Manufacturer 1300T

Specification:

GS1308V
A B C D
INJECTION UNIT Screw Diameter mm 110 120 130 140
Screw L/D Ratio L/D 24 22 20.3 18.9
Shot Size(Theoretical) cm3 6272 7464 8760 10160
Injection Weight g 5708 6793 7972 9246
Injection Rate g/s 698 830 974 1130
Plasticizing Capacity g/s 137 168 198 229
Injection Pressure Mpa 213 179 152 131
Screw Speed rpm 0-90
CLAMPING UNIT Clamp Tonnage KN 13080
Toggle Stroke mm 1400
Space Between Tie Bars mm 1350*1280
Max.Mould Height mm 1300
Min.Mould Height mm 600
Ejector Stroke mm 350
Ejector Tonnage KN 215
Ejector Number piece 25
OTHERS Max.Pump Pressure Mpa 16
Pump motor Power KW 37+37+23+25+1.5
Heater Power KW 85.55
Machine Dimension(L*W*H) m 13.33*3.06*2.80
Machine Weight t 62
Hopper Capacity Kg 100
Oil Tank Capacity L 1300

Injection molding machine features:

1) Precision hydraulic synchronous template adjusting system

2) Optimal design of high-strength precision clamping structure, Clamping unit rigidity and accuracy

3) Large colorful screen high-precision computer system, precision control, easily operation, multi operation language available. High-precision displacement sensor system, temperature control accuracy, big capacity data storage and date protection ability

4) World famous brand electrical system

5) Balanced type of double injection cylinder, eliminate oblique torque, diminishes deformation of screw and barrel, extend life of screw and barrel, optimizes plasticizing effect. Machine injection under multi-pressure and at various speed, with big capacity hydraulic motor.

6) Large torque oil motor, highly abrasion resistant alloy sliding block

7) Reasonable and highly efficient lubrication system

Modularized energy conservation high response oil system

8) Highly precise transducer, multi-stage control of opening stroke, speed and position.

Flexible tie bars nut eliminate fatigue fracture, assure tie bars long working life.

9) Security door fitted with hydraulic, mechanical and electrical interlocking triple safety device, fully protect machine operator.

10) Energy saving system, no extra energy consumption due to output volume changes according to load alteration. During stage of holding pressure, servo motor lower down energy consumption, 0 energy consumpti

on during machine cooling stage, save 20%-80% energy consumption compare with standard machine.

Machine FAQ

1. The machine is in running condition, and can make products?

Sure, machine must be in running condition, and take machines back, can make goods directlry.

2. Is there any warranty?

Of course, within three months, machine is with problem. offer free components.

3. Is there any oversea service?

If keep our engineers safety abroad, engineer will go oversea to help clients deal with problems.

4. Don't know how to set the production parameter of the controller?

Will take video to show how to do it.

5. How to confirm the machine auxilaries?

We'lll advise every auxilary machine capacity based on machine capacity and the environment of clients' country

6. Other detail problem with machine and production.

Let's discuss further.
