High Performance Plastic Bucket Moulding Machine 326g Injection Weight
High Performance Plastic Bucket Moulding Machine 326g Injection Weight
Specifications
Brand Name :
GS
Model Number :
GS168V
Place of Origin :
Shanghai, China (Mainland)
Certification :
ISO9001
Price :
Negotiable
MOQ :
1 Set/Sets
Condition :
New
Plastic Type :
Thermoplastic
Injection Weight :
326g
Injection Rate :
136.3g/s
Clamping Force :
1680kN
Power(W) :
10kW
After-sales Service Provided :
Overseas service center available
colour :
red or blue
Description

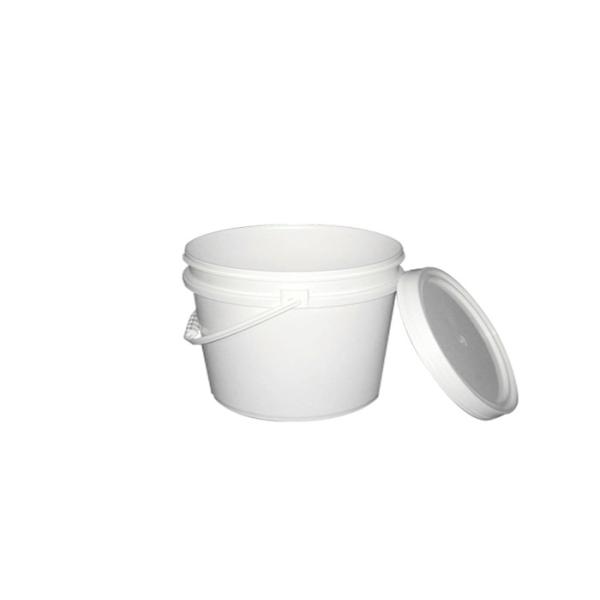

Plastic Paint Bucket Making Machine

GS168V

A

B

C


INJECTIONUNIT

Screw Diameter

mm

40

45

50

Screw L/D Ratio

L/D

22.5

20

18

Shot size(Theoretical)

cm3

253

320

395

PS) Injection Weight

g

230

291

359

PS Injection Rate

g/s

100

126

156

PS Plasticizing capacity

g/s

13.9

18

21.6

Injection Pressure

Mpa

240

190

154

Screw Speed

Rpm

0-195


CLAMPINGUNIT

Clamp Tonnage

KN

1600

Toggle stroke

mm

430

Space Between Tie Bars

mm

470*470

Max.Mold Height

mm

520

Min.Mold height

mm

180

Ejector stroke

mm

140

Ejector tonnage

KN

33

Ejector Number

piece

5


OTHERS

Max.Pump Pressure

Mpa

17.5

pump motor power

KW

15

Heater Power

KW

9.75

Machine Dimension(L*W*H)

m

4.9*1.29*1.96

Machine Weight

t

5.3

PS Hopper Capacity

Kg

25

Oil Tank Capacity

L

350


Lubrication Systerm:

The following should be focused on when using the lubricating oil:
• For the selection of the lube oil and grease,please refer to the recommendation in the above chapter;
Store some lube oil for maintenance need,take care of storage:
a.The oil barrel oil should be properly sealed;Keep away from water;
b.Protect the oil containers from exposure to sundhine;
c.The storage temperature for the oil should not exceed 40

High Performance Plastic Bucket Moulding Machine 326g Injection Weight

• Proper lubrication will lengthen the service life;on the contrary ,poor lubrication will result in the wear and heat of parts.The clamping unit of the machine employs auto central lubricating device,and the other necessary moving parts have grease nipples for lubrication.
Lubrication oil is an important factor of the machine.No operation without lubricating,otherwise the equipment will be seriously damaged.



Save Systerm:

High Performance Plastic Bucket Moulding Machine 326g Injection Weight


• The safety devices include safety door and locking-self mechanism.All safety doors are very important to avoid personal to damage by splashing melted material and prevent person from dangers zone.The locking-self mechanism will stop all damage action at any door opening.
• The safety door limit switch serves to interrupt the mold closing.When the safety door is open,limit switch has been activated to brek the circuit.Its dual circuit control functions of Normally closed and Normail open can stop the motion of the machine.

In case of any accident or error in the process of operation,first press the emergency stop button (the red projectied one on the lower right corner of the screen),and then turn off the main power supply switch.Find out the causes of fault and do not start the machine until all faults have been rectified.
