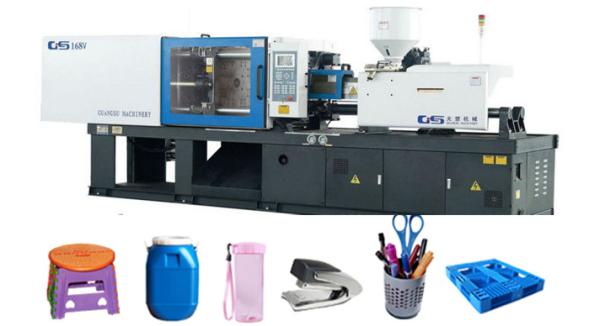

Heavy Duty 500 Ton Injection Molding Machine , Plastic Chair Making Machine
Heavy Duty 500 Ton Injection Molding Machine , Plastic Chair Making Machine
Specifications
Brand Name :
GS
Model Number :
GS478V
Place of Origin :
Shanghai, China (Mainland)
Certification :
ISO9001
Price :
Negotiable
MOQ :
1 Set/Sets
Condition :
New
Type :
Preform Injection
Style :
Horizontal
Plastic Type :
Thermoplastic
Injection Rate :
437.5g/s
Clamping Force :
4780KN
Power(W) :
29.7kW
capability :
save much more energy
Description

Variable Pump Injection Molding Machine Robots 500T

GS478V
A
B
C

INJECTION UNIT
Screw Diameter
mm
70
80
85
Screw L/D Ratio
L/D
22.9

20
18.8
Shot size(Theoretical)
cm3
1428
1865
2105
PS) Injection Weight
g
1299
1697
1916
PS Injection Rate
g/s
345
437.5
493.9
PS Plasticizing capacity
g/s
73.1
95.5
107.9
Injection Pressure
Mpa
194
149
132
Screw stroke
mm
371
Screw Speed
rpm
0-160

CLAMPING UNIT
Clamp Tonnage
KN
4780
Toggle stroke
mm
780
Space Between Tie Bars
mm
820x800
Max.Mold Height
mm
780
Min.Mold height
mm
320
Ejector stroke
mm
200
Ejector tonnage
KN
110
Ejctor Numbre
peice
17

OTHERS
Max.Pump Pressure
Mpa
16
Pump Motor Power
KW
45
Heater Power
KW
30.95
PS Hopper Capacity
Kg
50
Oil Tank Capacity
L
900
Machine Dimension(L*W*H)
m
8.16x2.12x2.32
Machine Weight
t
19

Product Description:

1. Reinforced clamping system meet efficient and fast production demands.

2. The superior moulding opening and closing characteristics with further optimization of the linkage construction make the machine run faster and more stable.

3. Centralized lubrication, reliable protection

Configuration of quantitative distribution of concentrated lubrication, provide more professional much better lubrication protection, keep the machine cleaner.

4. Professional and optimized designed mould platen, advanced finite element analysis software to optimize the design, high rigidity, high strength to meet the demand of high speed and impact of working condition.

5. New frame type structure Concise and easy appearance. Machine body forces more reasonably with high rigidity.

6. Multifunctional humanized control system with dedicated operation interface, easy operation, fast reaction, good reliability and good extensibility.

7. Professional designed plasticizing unit is suitable for different plastic materials significantly improve plasticizing performance.

8. Excellent injection performance with double cylinder injection makes reliable and steady performance.
