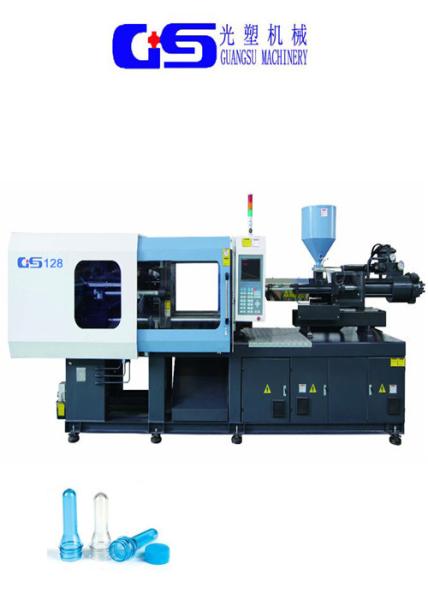

High Performance 200 Ton Thermoset Injection Molding Machine For Plastic Product
High Performance 200 Ton Thermoset Injection Molding Machine For Plastic Product
Specifications
Brand Name :
GS
Model Number :
GS208PF
Certification :
CE IS09001
Place of Origin :
Shanghai(China)
MOQ :
1Set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1 set per month
Packaging Details :
wooden case for shipping by sea
After-sales Service Provided :
Engineers available to service machinery overseas
Power :
16kw
Clamping Force :
2080KN
Injection Weight :
438g
Automatic :
Yes
Plastic Type :
Thermosetting
Place of origin :
Shanghai
Description

GS-HS

GS-HS plastic injection machine of oil-electric compound system control series is the product newly developed by Guangsu Company with features of economic benefits, energy saving, high response and low noise.

Structure principle: during actual working status, the system directly feedbacks the pressure-flow rate signal through exit pressure sensor of oil pump and cycloscope to the high speed servo driver. The servo driver gives out electric signal to servo driving motor and oil pump, allowing for corresponding change of pressure and flow rate, therefore, the closed circuit control of pressure and flow rate is realized.

Advantages:

1. Energy-saving:

Super low energy consumption, saving energy about 30% as compared to load sensitive variable pump, and about up to 80% as compared to constant flow pump, and its energy saving effect is comparable to the fully electric forming machine.

2. Low noise

Reduce greatly the noise produced by pressure control operation.

3. Reducing cost for long term

Realize energy saving and reduce running cost. Compared to electric type, the initial investment and maintenance cost is reduced greatly.

GS208PF
Injection Unit
Screw Diameter mm 50
Length/Diameter Ratio L/D 18.5
Theoretical Shot Volume cm3 481
Injection Weight(PS) g 438
Theoretical Injection Pressure Mpa 154
Injection Rate(PS) g/s 152
Plasticizing Capacity g/s 28
Maximum Screw Speed rpm 150
Clamping Unit
Clamp Tonnage kN 2080
Toggle Stroke mm 490
Space Between Iie Bars(H×V) mm 530×530
Max. Mold Height mm 550
Min. Mold Height mm 150
Daylight Opening mm 1040
Ejector stroke mm 140
Ejector tonnage kN 62
Ejector Number piece 5
Others Unit
System Pressure Mpa 16
Pump moter Power kW (V)22/(HS)28.3
Heater Power kW 16
Machine Dimension(L×W×H) m 5.40×1.60×2.00
Machine Weight t 6.9
Hopper Capacity Kg 50
Oil tank Capacity L 220

High Performance 200 Ton Thermoset Injection Molding Machine For Plastic Product

We welcome foreign businessmen to visit to visit the guide, we will spare no effort to provide customers with more comprehensive, more professional, more detailed services to win new customers trust and support.

Main Features

1. After preform injection, the heat is used for bottle blowing, no need of preform packaging, storage, reh- eating and other working procedures.

2. Less land occupation, simple management, high degree of automation, less labor intensify (1 person can control more than 3 machines).

3. With a temperature adjustable station, suitable for complicated shape, difficult forming products (such as PP IV-solution bottles).

4.The compact structure greatly shortens the production cycle and enhances productivity.

5.Adopt variable pump and servo motor, maximally reduce energy consumption.

6.The replacement of the mold cost is far lower than similar foreign equipment.

Technical parameters:

Our Services:

After-Sale Service
1. Provide considerable services to minimize client’s worries.
2. Assist clients to prepare for the first construction schedule.
3. Install and debug the equipment
4. Examine the equipment
5. Take initiative to eliminate the troubles rapidly
6. Provide perfect service

FAQ:

Q1: Are you a trading company or a manufactory?

A1: We are a manufactory, we supply the factory price with good quality, welcome to visit !

Q2: How can I install my machine when it arrives?

A2: We will send our engineers to your factory to install the machines and train your staff how to operate the machines.

Q3: How about the spare parts?

A3: After we deal down all the things , we will offer you a spare parts list for your reference.
