200 Ton Two Color Injection Molding Machine For Butt Plastic Sheet Making
200 Ton Two Color Injection Molding Machine For Butt Plastic Sheet Making
Specifications
Brand Name :
GS
Model Number :
GS208V
Place of Origin :
Shanghai, China (Mainland)
Certification :
ISO9001
Price :
Negotiable
MOQ :
1 Set/Sets
Injection Weight :
530 g
Injection Rate :
198 g/m
Clamping Force :
2080 kN
Opening Stroke :
490mm
Power(W) :
14.5kW
design style :
sleek.strong.reflecting the high-speed injection streamlined
difference :
adopt the advanced international control technology of variable pump
Description

200T Butt Plastic Sheet Welding Machine

China GS Two Mix Color Injection Molding Machine for toothbrush

GS Plastic Two Mix Color Injection Molding Machine feature

We supply all kinds of injection molding machines from 60T to 3000T, including color chips making machines, energy saving injection molding machines, gears making machines, dual clear color injection molding machine bakelite injection molding machines, PET preform injection molding machines, Fixed pump and variable pump injection molding machines, PVC fitting injection molding machines and etc

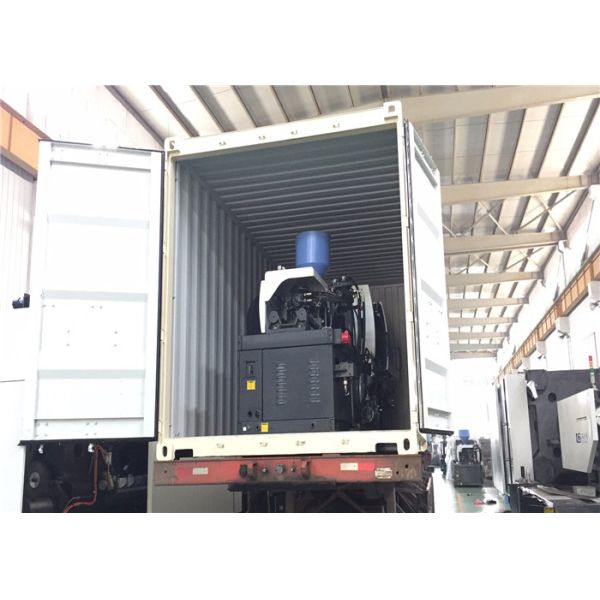

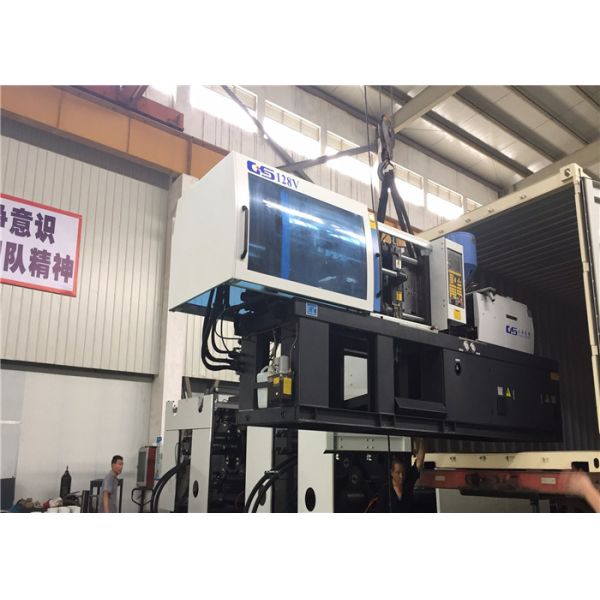

Real photo for Injection Molding Machine,It is in stock.25 days,we can arrange shipment after order confirmed.

Advanced hydraulic system design, through proportional control of pressure, flow achieves rapid multi-level pressure, speed switching, the system configuration is reasonable, stable and reliable.

2. The products made by injection molding machine

Most plastic products is made by injection molding machine,Say: pipe fitting, pet preform, disposable spoon knife fork,bow,cup,container,pallet, food container. etc.

3. Auxiliary Equipment for Injection Molding Machine

Auto loader,Chiller,Crusher,Cooling Tower,Mixer,Hopper Dryer,water pump,robot, dehumidifier etc.if you need any other equipment,please feel freely contact with us.Thanks very much.click here send us a message

Detail specification:

GS208V

A

B

C

Injection Unit

Screw Diameter

mm

45

50

55

Screw L/D Ratio

L/D

22.2

20

18.2

Theoretical Shot Size

cm3

389.7

481.1

582.1

Injection Weight

g

354.6

437.8

529.7

Injection Pressure

MPa

190

154

127

Injection Rate

g/s

133

164.2

198.6

Plasticizing Capacity

g/s

23.2

28.7

34.7

Ma×imum Screw Speed

rpm

165

Injection Stroke

245

Clamping Unit

Clamping Force

kN

2080

Toggle stroke

mm

490

Space Between Tie Bars

mm

530×530

Ma×imum Mold Height

mm

550

Minimum Mold Height

mm

150

Daylight Opening

mm

1040

Ejector Stroke

mm

140

Ejector Tonnage

kN

62

Ejector Number

piece

9

Others

Maximum Pump Pressure

MPa

16

Pump Motor Power

kW

18.5

Heater Power

kW

14.25

Dimension (L×W×H)

m

5.45×1.48×2.05

Net Weight

t

6.90

Hopper Capacity

kg

50

Oil Tank Volume

L

240

200 Ton Two Color Injection Molding Machine For Butt Plastic Sheet Making

4.Key Components on GS Injection molding machine
Clamping unit,injection unit,electric system,valves,color screen,T slot platen

Techmation controller etc. click here send us a message
