10kW Plastic Fruit Box Making Machine , Double Color Injection Molding Machine
10kW Plastic Fruit Box Making Machine , Double Color Injection Molding Machine
Specifications
Brand Name :
GS
Model Number :
GS168V
Place of Origin :
Shanghai, China (Mainland)
Certification :
ISO9001
Price :
Negotiable
MOQ :
1 Set/Sets
control system :
high performance
colour :
red or blue
After-sales Service Provided :
Overseas service center available
Power(W) :
10kW
Injection Weight :
326g
Injection Rate :
136.3g/s
Clamping Force :
1680kN
Opening Stroke :
430mm
Description

Plastic Fruit Box Making Machine

GS168V

A

B

C


INJECTIONUNIT

Screw Diameter

mm

40

45

50

Screw L/D Ratio

L/D

22.5

20

18

Shot size(Theoretical)

cm3

253

320

395

PS) Injection Weight

g

230

291

359

PS Injection Rate

g/s

100

126

156

PS Plasticizing capacity

g/s

13.9

18

21.6

Injection Pressure

Mpa

240

190

154

Screw Speed

Rpm

0-195


CLAMPINGUNIT

Clamp Tonnage

KN

1600

Toggle stroke

mm

430

Space Between Tie Bars

mm

470*470

Max.Mold Height

mm

520

Min.Mold height

mm

180

Ejector stroke

mm

140

Ejector tonnage

KN

33

Ejector Number

piece

5


OTHERS

Max.Pump Pressure

Mpa

17.5

pump motor power

KW

15

Heater Power

KW

9.75

Machine Dimension(L*W*H)

m

4.9*1.29*1.96

Machine Weight

t

5.3

PS Hopper Capacity

Kg

25

Oil Tank Capacity

L

350

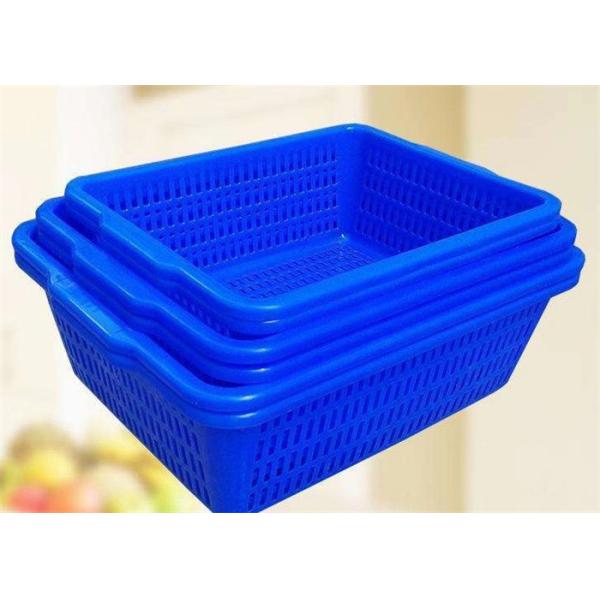

Plastic Fruit Box Making Machine

GS supply all kinds of injection molding machines from 50T to 3000T, including color chips making machine, energy saving injection molding machine, gears making machine, dual clear color injection molding machine, bakelite injection molding machine, PET preform injection molding machine, Fixed pump and variable pump injection molding machine, PVC fitting injection molding machine, screw barrel for injection molding machine etc.

Characters:

1. Innovative design of plasticizing system achieves low-temperature injection; it makes the machine energy-saving, environmental, and manufactures products with high tenacity and toughness.
2. Advanced hydraulic system achieves low pressure injection; it makes the machine gain better mechanical protection, have longer mould service life, and manufactures products with low stress and deformation.
3. Optimized control system achieves fast response speed; it makes the machine obtain higher shot rate in a short time and reaches the best within 0.3 seconds.

Delivery Lead Time

GS plastic injection molding machine delivery times within 15 days for small machines. And 30 days for big ones.
Sometime have reday stock, delivery times within 10 days.
( please confirm with us before order )

Machine Warranty

All the machines will be given service for whole life.
Technology support for machines whole life.
All the machines warranty is 1 year. Except the easy broken parts.
