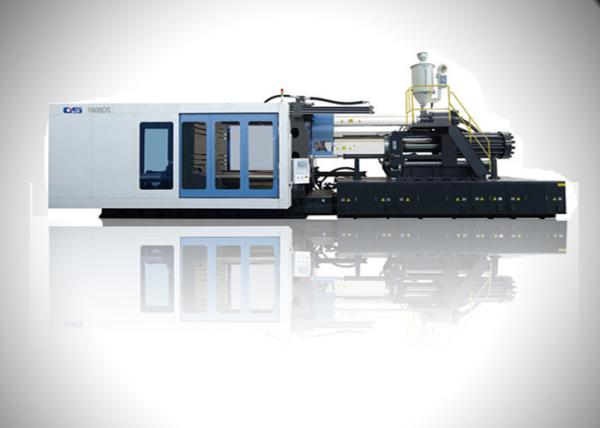

Multi Shot Injection Molding Plastic Goods Manufacturing Machine Hydraulic Type
Multi Shot Injection Molding Plastic Goods Manufacturing Machine Hydraulic Type
Specifications
Brand Name :
GS
Model Number :
GS1608HS
Place of Origin :
Shanghai, China (Mainland)
Certification :
ISO9001
Price :
Negotiable
MOQ :
1 Set/Sets i
Condition :
New
Style :
Horizontal
color :
blue /read
Injection Weight :
1608 g
control system :
high performance
design style :
sleek.strong.reflecting the high-speed injection streamlined
difference :
adopt the advanced international control technology of variable pump
economic benefits :
obvious--30-50% electricity can be saved
Description

Horizontal Double Color Scanner Color Correction Mask Injection moulding making machinery price

Specification:

GS1608HS

A

B

C

D

INJECTION UNIT

Screw Diameter

mm

65

70

75

80

Screw L/D Ratio

L/D

21.5

20

18.7

17.5

Shot Size(Theoretical)

cm3

1068

1239

1423

1619

Injection Weight

g

972

1127

1295

1473

Injection Rate

g/s

292

339

389

443

Plasticizing Capacity

g/s

38.2

44.9

51.4

58.7

Injection Pressure

Mpa

213

184

160

141

Screw Speed

rpm

0-185

CLAMPING UNIT

Clamp Tonnage

KN

3800

Toggle Stroke

mm

700

Space Between Tie Bars

mm

730*730

Max.Mould Height

mm

730

Min.Mould Height

mm

280

Ejector Stroke

mm

180

Ejector Tonnage

KN

110

Ejector Number

piece

13

OTHERS

Max.Pump Pressure

Mpa

17.5

Pump motor Power

KW

37

Heater Power

KW

24.85

Machine Dimension(L*W*H)

m

7.36 x 1.96 x 2.15

Machine Weight

t

15

Hopper Capacity

Kg

50

Oil Tank Capacity

L

750

Product details

1 LCD computer control with big display screen

2 Hydraulic proportional valve

3 Generous space for fitting large moulds

4 Large opening stroke

5 Two positon transducers to control clamping and injection

6 4-stage of injection speed, 3-stage of holding pressure, 4-stage of metering phase can be setup according to products' requirement.

7 Optimal platen design, with toggle junction casting together with platen improves rigidity of mechanical system hence improves product dimensions accuracy

14 Mechanical safety interlock

15 Electrical safety interlock

16 Oil return filter

Features

The series injection molding machine is with efficient,precise,energy saving,safe,reliable,beautiful features;

Injection speed up to 120 mm/s(high),product quality REpaetability ≤ 0.05 %(precision),the whole energy-saving level up to the national standard,barrel heating energy saving 30~50%(energy);

Using high-performance screw barrel assembly;

Using high-performance servo power controlling system;

Control system responds faster,higher sensitivity and reproducibility,good stability,anti-interference ability,low power consumption,the closed-loop control;

Sleek,strong,reflecting the high-speed injection,streamlined design style;

Maintenance is simple,low maintenance cost and long servise life;

Overall execution GB22530-2008”Rubber plastic injection molding machine safety requirements”standard(safety,reliability),fully meet the technical requirements of exporting European countries.

We all do best try to make products perfect!
