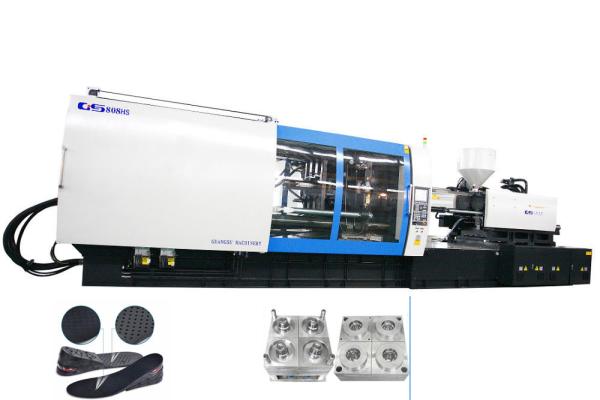

Rubber Sole Servo Energy Saving Injection Molding Machine 8000 Ton 613kw
Rubber Sole Servo Energy Saving Injection Molding Machine 8000 Ton 613kw
Specifications
Brand Name :
GS
Model Number :
GS808HS
Certification :
CE IS09001
Place of Origin :
Shanghai(China)
MOQ :
1Set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1 set per month
Packaging Details :
wooden case for shipping by sea
After-sales Service Provided :
Engineers available to service machinery overseas
Power :
613kw
Opening Stroke :
1040mm
Clamping Force :
8080KN
Injection Rate :
463~823g/s
Injection Weight :
22895~5146g
Plastic Type :
Thermosetting
Place of origin :
Shanghai
Description

Rubber Sole Servo Motor Injection Molding Machine 8000Ton


Technical parameters:

INJECTION UNIT 　 A B C D
Screw Diameter mm 90 100 110 120
Length/Diameter Ratio L/D 24.4 22 20 18.3
Theoretical Shot Volume cm3 3181 3927 4752 5655
Injection Weight(PS) g 2895 3574 4324 5146
Theoretical Injection Pressure Mpa 211 171 141 119
Injection Rate(PS) g/s 463 572 692 823
Plasticizing Capacity g/s 101 129 162 199
Maximum Screw Speed rpm 0-110
Injection Stroke mm 500
Clamping Unit 　 　
Clamp Tonnage kN 8080
Toggle Stroke mm 1040
Space Between Iie Bars (HxV) mm 1000x1000
Max. Mold Height mm 1000
Min. Mold Height mm 400
Daylight Opening mm 2040
Ejector stroke mm 280
Ejector tonnage kN 186
Ejector Number piece 21
　 　 　
OTHERS 　 　
System Pressure Mpa 16
Pump moter Power kW 44+44
Heater Power kW 61.3
Machine Dimension(LxWxH) m 9.83*2.37*2.64
Machine Weight t 33
Hopper Capacity Kg 100
Oil tank Capacity L 6870


Features:
1 LCD computer control with big display screen
2 Hydraulic proportional valve
3 Generous space for fitting large moulds
4 Large opening stroke
5 Two positon transducers to control clamping and injection
6 4-stage of injection speed, 3-stage of holding pressure, 4-stage of metering phase can be setup according to products' requirement.
7 Optimal platen design, with toggle junction casting together with platen improves rigidity of mechanical system hence improves product dimensions accuracy
8 Screw and barrel are made of high quality new materials, which extended the service life
9 Screw back pressure control
10 Multiple hydraulic ejection
11 Differential area high speed clamping
12 centralized lubrication system
13 All hydraulic components and seals are offered by famous international manufacturers
14 Mechanical safety interlock
15 Electrical safety interlock
16 Oil return filter
How can this machine make rubber products ? May I know the process?
1. Conching
Put the rubber granulates and stain into the stirring barrel to stir, and then put into the adhesive to stir.this process requires for 4-6 minutes ( because the adhesive is easy to cure, so stir it when use ).
2. Weighing raw materials
weight the rubber granulates stirred, according to the granulates' thickness requirement of the tiles .
3. Paving and pressing
Paving the rubber granulates weighted on the mold, then floated it by trowel. Firstly paving the surface rubber granulates which is fine and color, then the thickness and black.
4. Vulcanization molding
Covering anti adhesion cloth, pushing the mold into vulcanizer to vulcanize, the time of vulcanization accord to the thickness of the rubber tiles,

in general, 3-8inutes finished. After that, Mold separate automatic, then remove floor tile on the shelves to dry.
5. Inspecting
Inspect the surface of the floor tiles formity, no aberration, no flaw, line with the product quality
