Water Ring Cutting PE Extrusion Machine , 2000kg/H Two Screw Extruder 315kw
Water Ring Cutting PE Extrusion Machine , 2000kg/H Two Screw Extruder 315kw
Water Ring Cutting PE Extrusion Machine , 2000kg/H Two Screw Extruder 315kw
Water Ring Cutting PE Extrusion Machine , 2000kg/H Two Screw Extruder 315kw
Water Ring Cutting PE Extrusion Machine , 2000kg/H Two Screw Extruder 315kw
Water Ring Cutting PE Extrusion Machine , 2000kg/H Two Screw Extruder 315kw
Water Ring Cutting PE Extrusion Machine , 2000kg/H Two Screw Extruder 315kw
Water Ring Cutting PE Extrusion Machine , 2000kg/H Two Screw Extruder 315kw
Specifications
Brand Name :
Yongjie
Model Number :
SJSL75D
Certification :
CE
Place of Origin :
China
MOQ :
1sets
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
200sets per year
Delivery Time :
35-50 days
Packaging Details :
sea worthy film ( or wooden box per requirements)
Screw design :
twin screw extruder
Application :
PE PP+caco3
L/D :
52:1
Barrel diameter :
73mm
Screw diameter :
72mm
Motor :
315kw
Capacity :
2000-2500kg/h
Cutting way :
water ring
Description

2000kg/h Caco3 Filler Masterbatch Machine Twin Screw Extruder Machine

Quick details

Power:315kw option according to required output

Motor: AC motor, Siemens Beide

Screw diameter:72mm

Barrel diameter: 73mm

L/D:52

Output:2000-2500kg/h according to different material, formula and technology of process etc.

Cutting way: our water ring & air cooling plastic pelletizing machine are widely used for PE PP filler masterbatch

Warranty:one year

Lead time:45 days after deposit

Transmission gear: Parallel tri-axial structure is combination of reduction and matrix. The gear is made of high quality alloy (20CrNi2Mo). It had been treated by cementation heat process, the precision grade can reach6th. It guarantees the tooth surface is high speed, overloading, low noise and high torque.

Drive bearing: The brand of axletree: NSK.

Lubrication: Gear bearings in the gear box will be of oil immersed. There is hydraulic lubrication in the gear engagement and gear bearings.

Cooling: Lubricated cooling adopts shell and tube cooler and circulated water cooling method.

Scope of supply

No. Contents Unit Quantity Marks
1 High speed mixer set 1 800L
2 Screw feeding machine set 3 2.2kw
3 Twin screw extrusion system set 1
3.1 Feeding system set 1 3kw
3.2 Side Feeder set 1 7.5kw
3.3 SJ-75D Twin screw extruder set 1 315kw, 52:1
3.4 Vacuum venting system set 1 4kw
3.5 Water cycling system set 1 1.5kw
3.6 Automatic screen changer set 1 2.2kw
4 Electric cabinet set 1
5 Water-ring Auxiliary machine set 1
5.1 Die head set 1
5.2 Face cutter set 1 2.2kw
5.3 Dehydrator set 1 15kw
5.4 Vibrating sieve set 1 0.75kw
5.5 Production silo set 1 7.5kw
6 Documents set 1

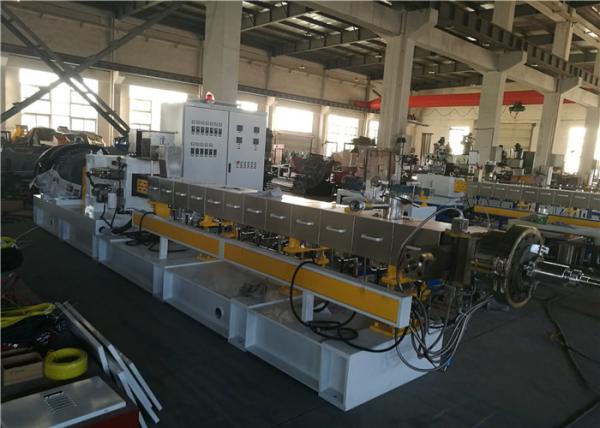

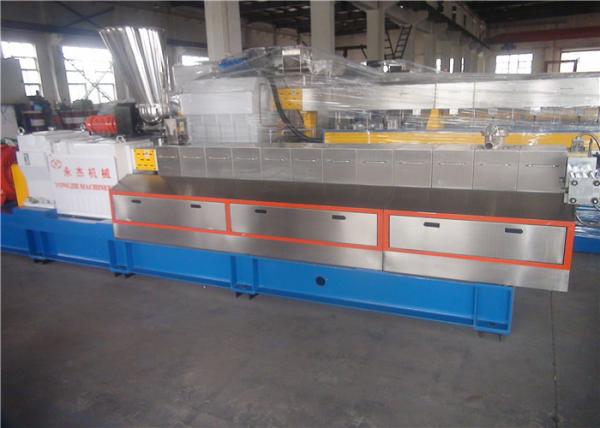

Photo of SJSL75D PE PP filler masterbatch plastic pelletizing machine (more models are available)

Water Ring Cutting PE Extrusion Machine , 2000kg/H Two Screw Extruder 315kw

Water Ring Cutting PE Extrusion Machine , 2000kg/H Two Screw Extruder 315kw

Main technical data of various model of twin screw extruder pelleitizing machine

Model type Series Barrel Diameter (mm) Screw Diameter (mm) Screw L/D screw speed n(r/min) Main motor power(Kw) Screw torque T(N.m) Torque rating (T/A3) Typical production capacity (kg/h)
SJSL-36 A/B/C/D 36 35.6 32-48 400/600 11/15/18.5/22 125-225 4.6-8.3 30-120
SJSL-51 A/B/C/D 51 50.5 32-52 500/600 45/55/75/90 405-680 5.1-8.5 120-400
SJSL-65 A/B/C/D 63 62.4 32-64 500/600 75/90/110/132 680-1200 4.8-8.5 180-750
SJSL-75 A/B/C/D 72 71 32-64 500/600 110/132/160/250 995-1890 4.6-8.7 300-1200
SJSL-95 A/B/C/D 94 93 32-64 500/600 250/315/450/550 2260-4510 4.7-8.7 700-2500
SJSL-135 A/B/C/D 135 133 32-48 400/500 550/750/900/1200 6200-10800 4.4-7.7 1550-6500

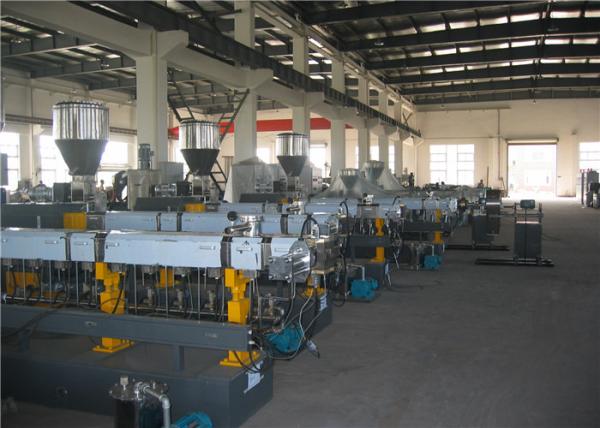

Company Brief

Nanjing Yongjie Qixin Machinery Equipment Co.,Ltd Founded in 2001, covers an area of 20,000 square meters on our own land, with monthly output of machine 20sets. Our factory is certificated to CE, ISO9001:2008.
The company concentrates on research, development and production of “high level, accurate, highly sophisticated series product parallel co-rotating “cordwood” twin screw extruder, single screw extruder, two stage extruders and automatic plastic pelletizing machines. We have provided customers first-class products with “strong torque, high production, energy conservation and environmental protection products. The special designed screw structure has realized successfully for “one step shaping” on many kinds of products, and is widely used in aluminum composite plate, XPS foaming plate, WP plate, PP, PE sheet industry, etc.

Package of our plastic pellet machine ( sea worthy film or wooden box according to requirements)

Water Ring Cutting PE Extrusion Machine , 2000kg/H Two Screw Extruder 315kw
