PE PP Filler Masterbatch Plastic Pellet Extruder Machine With Feeding System
PE PP Filler Masterbatch Plastic Pellet Extruder Machine With Feeding System
PE PP Filler Masterbatch Plastic Pellet Extruder Machine With Feeding System
PE PP Filler Masterbatch Plastic Pellet Extruder Machine With Feeding System
PE PP Filler Masterbatch Plastic Pellet Extruder Machine With Feeding System
PE PP Filler Masterbatch Plastic Pellet Extruder Machine With Feeding System
Specifications
Brand Name :
Yongjie
Model Number :
SJSL65
Certification :
CE
Place of Origin :
China
MOQ :
1sets
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
200sets per year
Delivery Time :
35-50 days
Packaging Details :
sea worthy film ( or wooden box per requirements)
Dehydrator :
4kw
Product silo :
4kw
Warranty :
one year
Lead time :
45 days after deposit
Barrel diameter :
62.4mm
Screw & barrel material :
W6Mo5Cr4V2
Motor :
90kw
Capacity :
300-500kg/h
Description

SJSL65B PE PP Filler Masterbatch Plastic Pellet Machine Twin Screw Extruder Machine

Water Ring Pelletizer Application:

1. PE, Eva etc + Caco3, talk, Tio92, filling modification and carbon black etc.

2. LDPE, HDPE, LLDPE,MDPE, drivepipe, insulation material, crosslinking material, cable coating material, thermal contraction pipe material etc.

3. PPR pipe compounds, PE crosslinking tube material, TPR, TPU thermoplastic elastomer, EVA and hot melt adhesive etc.

4. PE, ABS, PS, EVA masterbatch etc.

5. ABS, EVA flaming retarding masterbatch etc.

6. PE, PP, PS filling and biodegradable masterbatch, etc.

Quick details of sjsl36 water ring pelletizer

Screw diameter:62.4mm

Screw material:W6Mo5Cr4V2

Barrel diameter:63mm

Barrel material:W6Mo5Cr4V2

Motor power:90kw

Motor brand:SIEMENS

Inverter:ABB

Centrifugla dehydrator:4kw

Product silo:4kw

L/D:44:1

Output:300-500kg/h

Scope of supply

No. Contents Unit Quantity Marks
1 Twin screw extrusion system set 1
1.1 Feeding system set 1 1.5kw
1.2 SJ-65Twin screw extruder set 1 90kw, 48:1
1.3 Vacuum venting system set 1 2.2kw
1.4 Water cycling system set 1 0.55kw
1.5 Automatic screen changer set 1 1.5kw
2 Electric cabinet set 1
3 Water-ring auxiliary system set 1
3.1 Water-ring die head set 1
3.2 Face cutter with guide rail set 1 1.5KW
3.3 Cutter cover set 1
3.4 Centrifugal dehydrator set 1 4KW
3.5 Vibrating sieve set 1 0.4KW
3.6 Storage bin set 1 1m3
4 Documents set 1

World famous brands of electronic components

1). Temperature control meter is Japanese RKC meter, intelligent type, double channel;

2). The inverter of extruder is ABB;

3). The low-voltage apparatus and the button adopt SCHNEIDER product;

4). AC contactor adopt SIEMENS product;

5). The main motor is SISMENS BEIDE;

6). The air switch adopts CHINT products. The solid-state relays are from American joint venture brand;

7). The electromagnetic valve: adopt Denmark DANFOSS product.

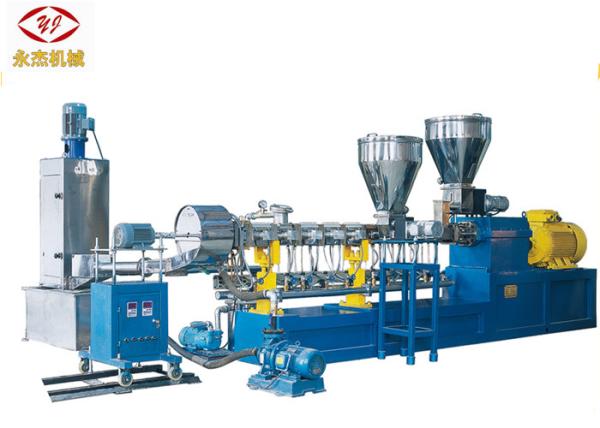

Photo of SJSL65B Twin Screw Extruder

PE PP Filler Masterbatch Plastic Pellet Extruder Machine With Feeding System

Main Technical Details of Plastic Pelletizing Machine Models

Model type Series Barrel Diameter (mm) Screw Diameter (mm) Screw L/D screw speed n(r/min) Main motor power(Kw) Screw torque T(N.m) Torque rating (T/A3) Typical production capacity (kg/h)
SJSL20 A/B 22 21.7 32-44 500/600 4/5.5kw 30/30
SJSL-36 A/B/C/D 36 35.6 32-48 400/600 11/15/18.5/22 125-225 4.6-8.3 30-120
SJSL-51 A/B/C/D 51 50.5 32-52 500/600 45/55/75/90 405-680 5.1-8.5 120-400
SJSL-65 A/B/C/D 63 62.4 32-64 500/600 75/90/110/132 680-1200 4.8-8.5 180-750
SJSL-75 A/B/C/D 72 71 32-64 500/600 110/132/160/250 995-1890 4.6-8.7 300-1200
SJSL-95 A/B/C/D 94 93 32-64 500/600 250/315/450/550 2260-4510 4.7-8.7 700-2500
SJSL-135 A/B/C/D 135 133 32-48 400/500 550/750/900/1200 6200-10800 4.4-7.7 1550-6500

Company Brief

Nanjing Yongjie Qixin Machinery Equipment Co.,Ltd Founded in 2001, covers an area of 20,000 square meters on our own land, with monthly output of machine 20sets. Our factory is certificated to CE, ISO9001:2008.The company concentrates on research, development and production of “high level, accurate, highly sophisticated series product parallel co-rotating “cordwood” twin screw extruder, single screw extruder, two stage extruders and automatic plastic pelletizing machines. We have provided customers first-class products with “strong torque, high production, energy conservation and environmental protection products. The special designed screw structure has realized successfully for “one step shaping” on many kinds of products, and is widely used in aluminum composite plate, XPS foaming plate, WP plate, PP, PE sheet industry, etc.

QAULITY IS PUT AT THE FIRST , and our factory is certificated to ISO 9001:2008 and CE.
