200kg/H Dual Screw PET Pelletizing Machine With Water Strand Auxiliary System
200kg/H Dual Screw PET Pelletizing Machine With Water Strand Auxiliary System
Specifications
Brand Name :
Yongjie
Model Number :
SJSL65A
Certification :
CE
Place of Origin :
China
MOQ :
1sets
Price :
USD35000-42000/set
Payment Terms :
L/C, T/T
Supply Ability :
200sets per year
Delivery Time :
35-50 days
Packaging Details :
sea worthy film ( or wooden box per requirements)
Screw design :
twin screw extruder
Application :
pet flake
Overseas engineers :
Available for installation and Comissioning
Screw diameter :
62.4mm
Screw material :
W6Mo5Cr4V2
Motor :
75kw
Rpm :
300/500
Capacity :
200kg/h
Description

200kg/h SJSL65 Doule Screw Pet Recycling Flakes to Granules Machine PET Pelletizing Machine

Nanjing Yongjie started to make water strand twin screw extruder pelletizing machine since 2001,our twin screw extruders are widely used for enforcing modification, degradab le master batch, anti-flame master batch etc.

Models of our twin screw extruder

Model type Series Barrel Diameter (mm) Screw Diameter (mm) Screw L/D screw speed n(r/min) Main motor power(Kw) Screw torque T(N.m) Torque rating (T/A3) Typical production capacity (kg/h)
SJSL20 A/B 22 21.7 32-44 500/600 4/5.5kw 30/30
SJSL-36 A/B/C/D 36 35.6 32-48 400/600 11/15/18.5/22 125-225 4.6-8.3 30-120
SJSL-51 A/B/C/D 51 50.5 32-52 500/600 45/55/75/90 405-680 5.1-8.5 120-400
SJSL-65 A/B/C/D 63 62.4 32-64 500/600 75/90/110/132 680-1200 4.8-8.5 180-750
SJSL-75 A/B/C/D 72 71 32-64 500/600 110/132/160/250 995-1890 4.6-8.7 300-1200
SJSL-95 A/B/C/D 94 93 32-64 500/600 250/315/450/550 2260-4510 4.7-8.7 700-2500
SJSL-135 A/B/C/D 135 133 32-48 400/500 550/750/900/1200 6200-10800 4.4-7.7 1550-6500

Water strand plastic pelletizing machine application

Reinforcement and modification: filling glass fiber or carbon fiber for :PP, PA, PBT, ABS, AS, POM, PPS, PET etc.

Compounding and blending: PC+ABS, PA,+ABS, PP+EPDM, PA+EPDM, PP+SBS, etc.

Filling modification: filling Caco3, Talc, Titanium, carbon black for PVC, PE, PP,EVA etc.

Cable material: LDE, HDPE, LLDPE, MDPE, drive pipe, insulation material, crosslinking material, cable coating material, thermal contraction material etc.

Special application material: PPR pipe compounds, PE crosslinking tube material, cigarettes filter tip material, acetable fiber material etc.

Thick color masterbatch: PE, ABS, PS, EVA, PET, PP+ pigment + additives, etc.

Flaming retarding material: PVC, PP, PA, ABS, EVA, PBT + fire retardant, etc

Special functional masterbatch: double protection masterbatch, antistatic masterbatch, anti-bacteria masterbatch, thermal insulation masterbatch, hypothermia material etc

The biodegradable masterbatch: PP, PE, PS+ starch + additives etc.

Quick details of the machine

Screw diameter:64.2mm

Barrel diameter:63mm

Power:75kw

Barrel&screw material:W6Mo5Cr4V2 high speed tool steel

L/D:40:1

Length of barrel:240*10 section=2400mm

Gear box input speed:1480rpm, output 300-500rpm

Reduction ratio:3:1

Special screw array with wear shear of flake material, super power vacuum system to reduce IV loss maximumly.

Scope of supply:

No. Contents Unit Quantity Marks
1 Twin screw extrusion system set 1
1.1 Feeding system set 1 1.1kw
1.2 SJ-65Twin screw extruder set 1 75kw, 40:1
1.3 Vacuum venting system set 2 2.2kw
1.4 Water cycling system set 1 0.55kw
1.5 Automatic screen changer set 1 1.5kw
2 Electric cabinet set 1
3 Water-strand auxiliary system set 1
3.1 Die head set 1
3.2 Water trough set 1 4M
3.3 Dryer set 2 2.2kw
3.4 Pelletizer set 1 300kg/h, 4kw
3.5 Product silo set 1
4 Documents set 1

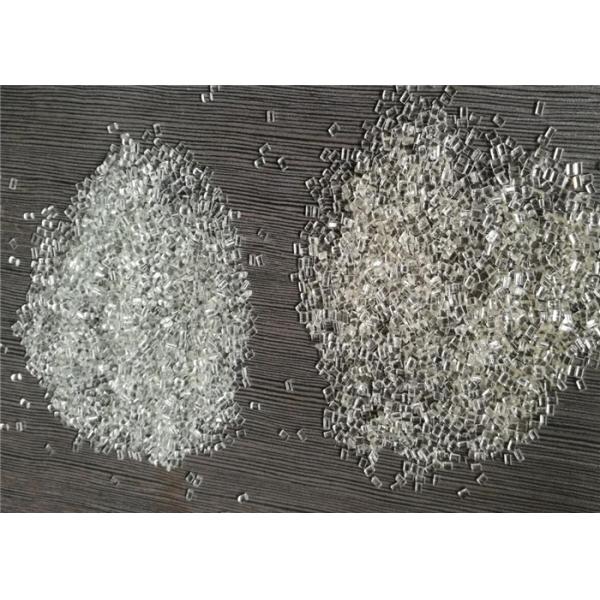

Photos of 200kg/h SJSL65 Pet Recycling Flakes to Granules Machine PET Pelletizing Machine

200kg/H Dual Screw PET Pelletizing Machine With Water Strand Auxiliary System

200kg/H Dual Screw PET Pelletizing Machine With Water Strand Auxiliary System
