High Output 2000kg/H Plastic Extrusion Machine / Equipment With High Speed Mixer
High Output 2000kg/H Plastic Extrusion Machine / Equipment With High Speed Mixer
High Output 2000kg/H Plastic Extrusion Machine / Equipment With High Speed Mixer
High Output 2000kg/H Plastic Extrusion Machine / Equipment With High Speed Mixer
Specifications
Brand Name :
Yongjie
Model Number :
SJSL75B
Certification :
CE
Place of Origin :
China
MOQ :
1sets
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
200sets per year
Delivery Time :
35-50 days
Packaging Details :
sea worthy film ( or wooden box per requirements)
Screw design :
twin screw extruder
Application :
PP PE with 85% Caco3
Warranty :
one year
Screw diameter :
71mm
L/D :
52:1
Gearbox :
800rpm
Motor :
250kw
Capacity :
2000kg/h
Description

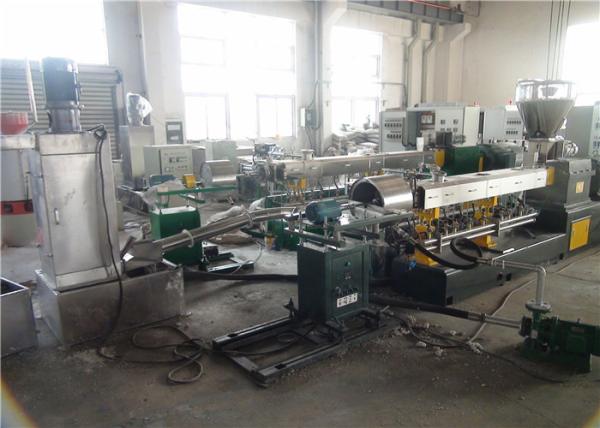

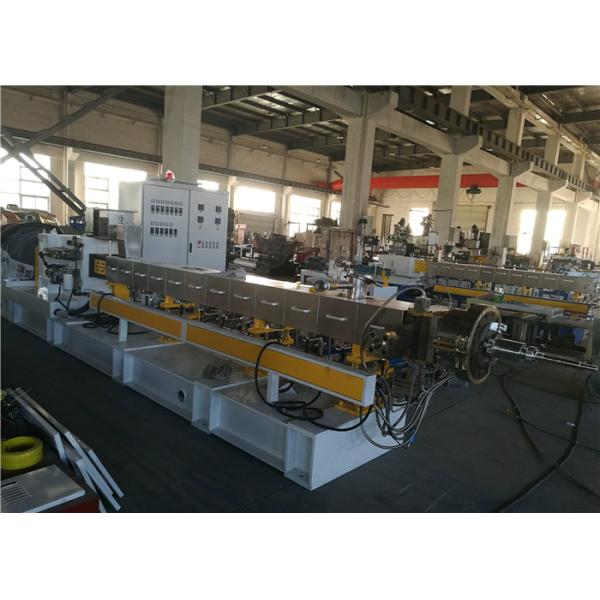

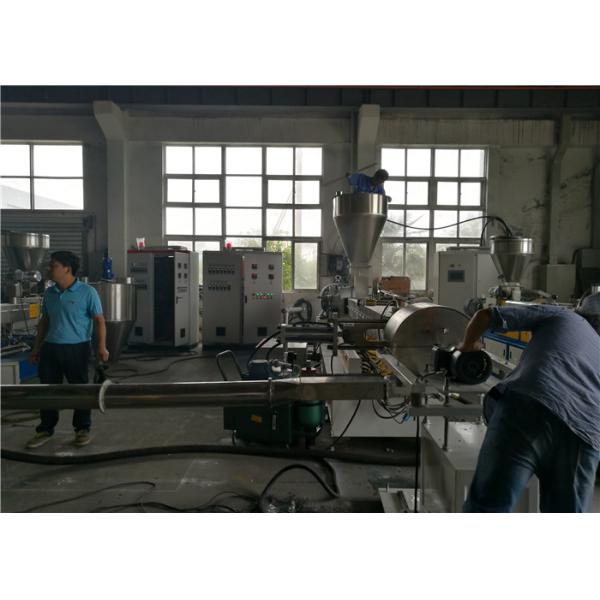

2000kg/h Masterbatch Twin Screw Pelletizing Machine Water Ring Pelletizer Plastic Extruder Machine

Water Ring Pelletizer Application:

1. PE, Eva etc + Caco3, talk, Tio92, filling modification and carbon black etc.

2. LDPE, HDPE, LLDPE,MDPE, drivepipe, insulation material, crosslinking material, cable coating material, thermal contraction pipe material etc.

3. PPR pipe compounds, PE crosslinking tube material, TPR, TPU thermoplastic elastomer, EVA and hot melt adhesive etc.

4. PE, ABS, PS, EVA masterbatch etc.

5. ABS, EVA flaming retarding masterbatch etc.

6. PE, PP, PS filling and biodegradable masterbatch, etc.

Quick details of sjsl75D water ring pelletizer

Screw diameter:71mm

Screw material:W6Mo5Cr4V2

Barrel diameter:72mm

Barrel material:W6Mo5Cr4V2

Motor power:250kw/315kw

Gearbox:800rpm

Motor brand:SIEMENS

L/D:52:1

Output:around 2000kg/h

Barrel

1). Diameter: ￠72mm

2). Structure: The first section works for main feeding, the fifth section is set up for venting naturally, and the eleventh section is set up for vacuum venting and others are blocked.

3). Material: The material of the barrel is made of 45＃forged steel with the abrasion-resistant alloy 101 (Ni-Fe-Cr-W) inside that smooth and abrasion resistant. The hardness is HRC60-64.

4). Heating: Adopt multiple step format electric heating. The first and the second zone and the machine head zone are cast copper heater and others are cast aluminum heater. The total heating power is 100kw and the max heating capacity every section can reach 500℃.

5). Cooling: Adopt soft water cooling system in the barrel and tap water cooling way outside barrel. The circulation pipes are made of stainless steel and the water inflow regulating valves are stainless valves.

The brand of electromagnetic valve is DANFOSS.

6) Length:290*12=3480mm

Main parts and technical parameters

No. Contents Unit Quantity Marks
1 High speed mixer set 1 800L
2 Screw feeder machine set 1 2.2kw
3 Twin screw extrusion system set 1
3.1 Feeding system set 1 2.2kw
3.2 SJ-75D Twin screw extruder set 1 315kw, 48:1
3.3 Vacuum venting system set 1 4kw
3.4 Water cycling system set 1 1.5kw
3.5 Automatic screen changer set 1 2.2kw
4 Electric cabinet set 1
5 Water-ring Auxiliary machine set 1
5.1 Die head set 1
5.2 Face cutter set 1 2.2kw
5.3 Dehydrator set 1 11kw
5.4 Vibrating sieve set 1 0.74kw
5.5 Production silo set 1 7.5kw
6 Documents set 1

Business Clause

Lead time:45 days after deposit

Engineers available for overseas installation, commissioning etc

Payment term:30% deposit via TT, 70% balance before shipment after testing and qualifying machine at seller's manufacturer, L/C payment are negotiable

Main Technical Details of Various Water Ring Pelletizer Models

Model type Series Barrel Diameter (mm) Screw Diameter (mm) Screw L/D screw speed n(r/min) Main motor power(Kw) Screw torque T(N.m) Torque rating (T/A3) Typical production capacity (kg/h)
SJSL-36 A/B/C/D 36 35.6 32-48 400/600 11/15/18.5/22 125-225 4.6-8.3 30-120
SJSL-51 A/B/C/D 51 50.5 32-52 500/600 45/55/75/90 405-680 5.1-8.5 120-400
SJSL-65 A/B/C/D 63 62.4 32-64 500/600 75/90/110/132 680-1200 4.8-8.5 180-750
SJSL-75 A/B/C/D 72 71 32-64 500/600 110/132/160/250 995-1890 4.6-8.7 300-1200
SJSL-95 A/B/C/D 94 93 32-64 500/600 250/315/450/550 2260-4510 4.7-8.7 700-2500
SJSL-135 A/B/C/D 135 133 32-48 400/500 550/750/900/1200 6200-10800 4.4-7.7 1550-6500
