Specifications
Brand Name :
Yongjie
Model Number :
SJSL51
Certification :
CE
Place of Origin :
China
MOQ :
1sets
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
200sets per year
Delivery Time :
35-50 days
Packaging Details :
sea worthy film ( or wooden box per requirements)
Screw design :
twin screw extruder
Application :
pvc cable raw material
Warranty :
one year
Screw material :
38CrMoAL nit-ridged steel for anti corrsion
Screw diameter :
50.5mm
Motor :
55kw
Output :
100-150kg/h
Screw speed :
600rpm
Description

SJSL51 100-150kg/h Twin Screw PVC Pelletizing Machine Extruder Pvc

Air Cooling Die Face PVC Pelletizing Machine Application
Enforcing modification: PE, EVA etc+Caco3, Talc, Tio2, PVC, PP, Carbon black
Degradable master batch: PE, PS etc. + starch, additive etc
Anti-flake master batch: PE, EVA etc+Sb2o3, Mg(OH)2, AI2(OH)3 etc.
Quick details
Power:55kw
Screw diameter:50.5mm
Barrel diameter:51mm
Screw & barrel material:38CrMoAl
Output:100-150kg/h
Cutting way: air cooling die face for pvc material
Warranty:one year
Lead time:45 days after deposit
Heating power:26kw
Heating zones: 9 zones

Free spare parts

No.ContentsUnitQuantityMarks
1Screw elementsset~200mm
2Output and input shaft oil sealspiece3
3Venting room seal ringpiece1
4Asbestos glovespairs2
5Allen key (inner)set15 pieces
6Allen key (outer)set13 pieces
7Flat, Cross Screw driverpiece1 each2 pieces
8Copper bar ∮32*200piece1
9Screw hoisting ringpiece2


Pre-sales service
♦1. Inquiry and consulting support.
♦2. Selecting economical and suitable extruder and related machines for customers.
♦3. Providing technical details of machine.
♦4. Providing means of trial performance for customer.
♦5. Factory tour & assistance of invitation letter when needed.
Sales service
♦1. Recommending engineering conditions required for installation.
♦2. Communicating on time the manufacturing status of machines.
After-sales service
♦1. Engineers available to service machinery overseas in installation, commissioning and training.
♦2. Filing in detail customer’s order information.
♦3. Providing long-term maintenance service and spare parts.
♦4. Giving technical support to customer for developing new product.
♦5. Providing free maintenance for a year.

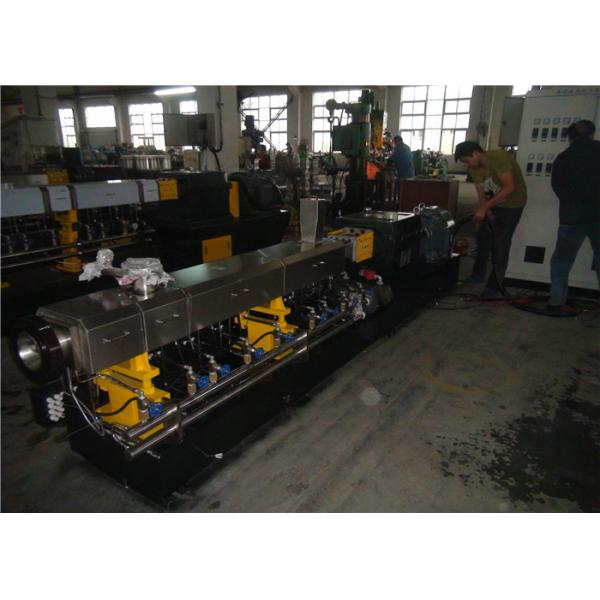

Photo of SJSL51 100-150kg/h Twin Screw PVC Pelletizing Machine Extruder Pvc
High Efficiency Plastic Pellet Production Machine , Plastic Pelletizing Equipment
Main technical data of various model of twin screw extruder pelleitizing machine

Model typeSeriesBarrel Diameter (mm)Screw Diameter (mm)Screw L/Dscrew speed n(r/min)Main motor power(Kw)Screw torque T(N.m)Torque rating (T/A3)Typical production capacity (kg/h)
SJSL20A/B2221.732-44500/6004/5.5kw30/30
SJSL-36A/B/C/D3635.632-48400/60011/15/18.5/22125-2254.6-8.330-120
SJSL-51A/B/C/D5150.532-52500/60045/55/75/90405-6805.1-8.5120-400
SJSL-65A/B/C/D6362.432-64500/60075/90/110/132680-12004.8-8.5180-750
SJSL-75A/B/C/D727132-64500/600110/132/160/250995-18904.6-8.7300-1200
SJSL-95A/B/C/D949332-64500/600250/315/450/5502260-45104.7-8.7700-2500
SJSL-135A/B/C/D13513332-48400/500550/750/900/12006200-108004.4-7.71550-6500


Company Brief
Nanjing Yongjie Qixin Machinery Equipment Co.,Ltd Founded in 2001, covers an area of 20,000 square meters on our own land, with monthly output of machine 20sets. Our factory is certificated to CE, ISO9001:2008.The company concentrates on research, development and production of “high level, accurate, highly sophisticated series product parallel co-rotating “cordwood” twin screw extruder, single screw extruder, two stage extruders and automatic plastic pelletizing machines. We have provided customers first-class products with “strong torque, high production, energy conservation and environmental protection products. The special designed screw structure has realized successfully for “one step shaping” on many kinds of products, and is widely used in aluminum composite plate, XPS foaming plate, WP plate, PP, PE sheet industry, etc.


How to choose machine for plastic pellet?
1. Just tell us your rough formula?
2. Your expected output per hour of the mahcine
