Iron Oxide Fe2O3 Plastic Pellet Making Machine , Dual Screw Extruder High Power
Iron Oxide Fe2O3 Plastic Pellet Making Machine , Dual Screw Extruder High Power
Iron Oxide Fe2O3 Plastic Pellet Making Machine , Dual Screw Extruder High Power
Iron Oxide Fe2O3 Plastic Pellet Making Machine , Dual Screw Extruder High Power
Iron Oxide Fe2O3 Plastic Pellet Making Machine , Dual Screw Extruder High Power
Iron Oxide Fe2O3 Plastic Pellet Making Machine , Dual Screw Extruder High Power
Iron Oxide Fe2O3 Plastic Pellet Making Machine , Dual Screw Extruder High Power
Iron Oxide Fe2O3 Plastic Pellet Making Machine , Dual Screw Extruder High Power
Specifications
Brand Name :
Yongjie
Model Number :
SJSL95
Certification :
CE
Place of Origin :
China
MOQ :
1sets
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
200sets per year
Delivery Time :
35-50 days
Packaging Details :
sea worthy film ( or wooden box per requirements)
Screw design :
twin screw extruder
Application :
plastic pellets
Warranty :
one year
Overseas engineers :
Available for installation and Comissioning
Screw diameter :
93mm
Motor :
280kw
Air transmission system :
two stages
Capacity :
1000-1500kg/h
Description

Iron Oxide Fe2O3 Plastic Pellets Twin Screw Extruder Machine Plastic Extrusion Machine

Scope of supply

No. Contents Unit Quantity Marks
1 High speed mixer set 1 800L
2 Screw feeder machine set 1 2.2kw
3 Twin screw extrusion system set 1
3.1 Feeding system set 1 2.2kw
3.2 SJ-95Twin screw extruder set 1 280kw, 48:1
3.3 Vacuum venting system set 1 4kw
3.4 Water cycling system set 1 1.5kw
3.5 Automatic screen changer set 1 2.2kw
4 Electric cabinet set 1
5 Air-cooling auxiliary system set 1
5.1 Die head set 1
5.2 Face cutter set 1 2.2kw
5.3 Two-stage conveying system set 1 15kw
6 Documents set 1

Quick details

Power:280kw

Screw diameter:93mm

Barrel diameter: 94mm

L/D:48

Output:1000-1500kg/h according to different material, formula and technology of process etc.

Cutting way: air cooling hot cutting

Warranty:one year

Lead time:45 days after deposit

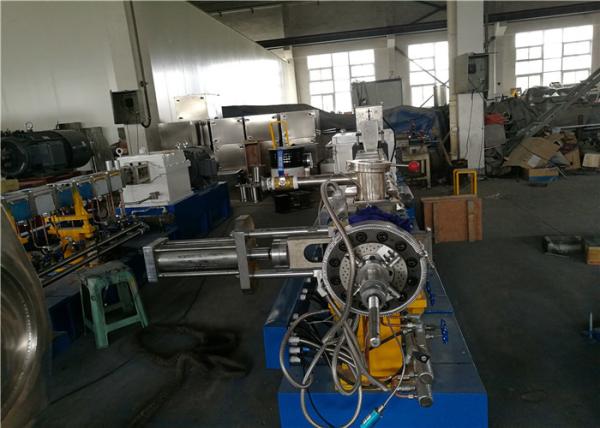

Photo of machine

Iron Oxide Fe2O3 Plastic Pellet Making Machine , Dual Screw Extruder High Power

Main technical data of various model of twin screw extruder pelleitizing machine

Model type Series Barrel Diameter (mm) Screw Diameter (mm) Screw L/D screw speed n(r/min) Main motor power(Kw) Screw torque T(N.m) Torque rating (T/A3) Typical production capacity (kg/h)
SJSL-36 A/B/C/D 36 35.6 32-48 400/600 11/15/18.5/22 125-225 4.6-8.3 30-120
SJSL-51 A/B/C/D 51 50.5 32-52 500/600 45/55/75/90 405-680 5.1-8.5 120-400
SJSL-65 A/B/C/D 63 62.4 32-64 500/600 75/90/110/132 680-1200 4.8-8.5 180-750
SJSL-75 A/B/C/D 72 71 32-64 500/600 110/132/160/250 995-1890 4.6-8.7 300-1200
SJSL-95 A/B/C/D 94 93 32-64 500/600 250/315/450/550 2260-4510 4.7-8.7 700-2500
SJSL-135 A/B/C/D 135 133 32-48 400/500 550/750/900/1200 6200-10800 4.4-7.7 1550-6500

Company Brief

Nanjing Yongjie Qixin Machinery Equipment Co.,Ltd Founded in 2001, covers an area of 20,000 square meters on our own land, with monthly output of machine 20sets. Our factory is certificated to CE, ISO9001:2008.
The company concentrates on research, development and production of “high level, accurate, highly sophisticated series product parallel co-rotating “cordwood” twin screw extruder, single screw extruder, two stage extruders and automatic plastic pelletizing machines. We have provided customers first-class products with “strong torque, high production, energy conservation and environmental protection products. The special designed screw structure has realized successfully for “one step shaping” on many kinds of products, and is widely used in aluminum composite plate, XPS foaming plate, WP plate, PP, PE sheet industry, etc.

How to choose machine for plastic pellet?

1. Just tell us your rough formula, like 30% PE + 70% corn startch + additives etc.

2. Your expected output per hour of the mahcine
